    Water in trunk...not your typical cause?

    Hey guys! I’m sidetracked with this other problem while waiting for my subframe parts to get back from the powder coat.

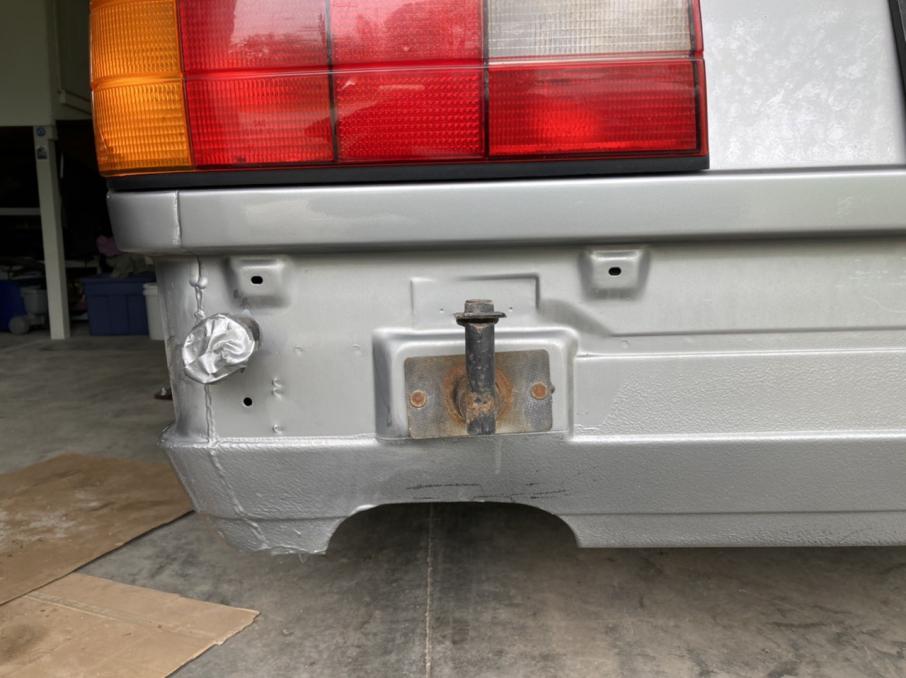

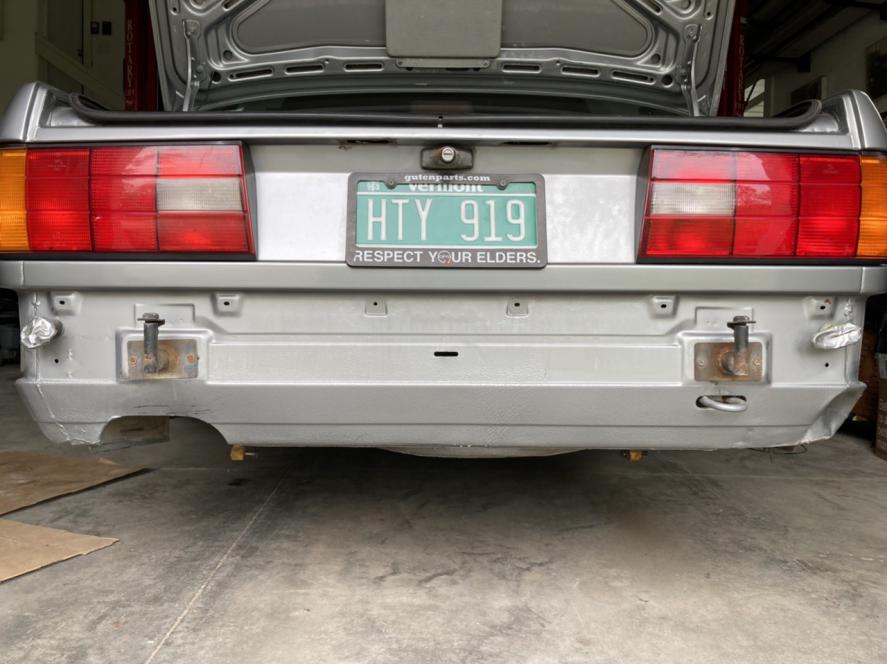

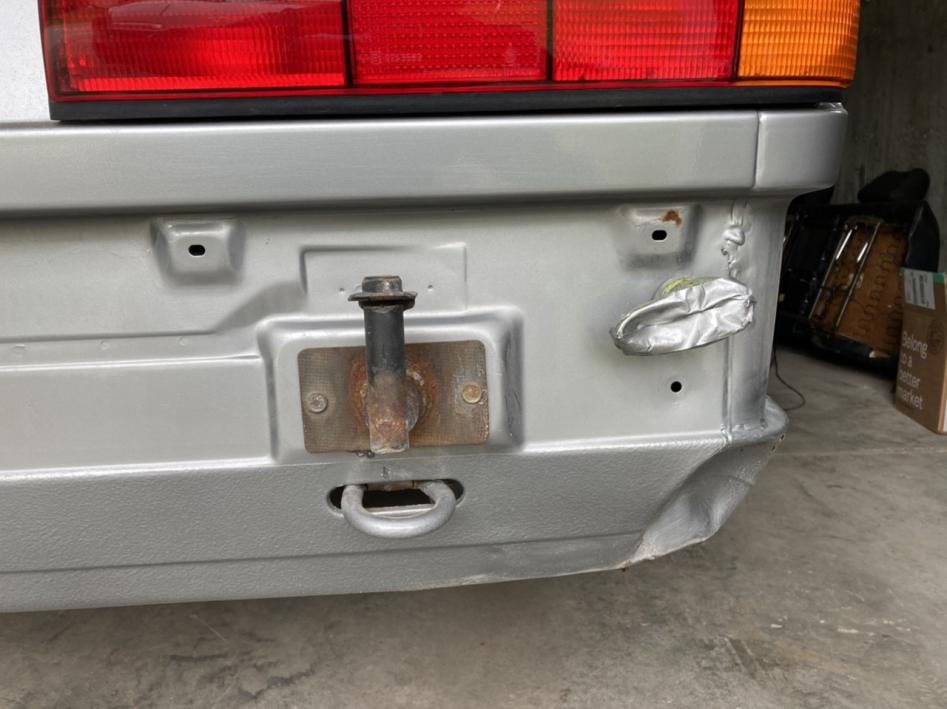

    I have been getting water in my trunk. Replaced ALL the stuff people recommend and hasn’t helped. Pulled my bumper and found all these factory holes in the rear apron/sail panel that are not present on my 89 parts car.

    I wonder if the previous owner of the 88ix that I’m working on (pics attached) didn’t plug these holes when he did the metal to plastic bumper swap and they are the cause of the water in the trunk? Do all metal bumper cars have these holes in the rear apron? Seems kinda odd that they arent present on my 89ix.

    Thanks!
    Attached Files
    Last edited by E30andy; 05-22-2021, 12:41 PM.
    89 325ix coupe Diamondschwartz
    1994 Mazda Miata

    #2
    Those holes are from the diving board bumper trim pieces. I use foam tape on the inside to seal them. A decent RTV with a hard backing piece should solve your problem.

    Comment


      #3
      Thanks uturn! I ordered some rubber plugs off eBay for a cleaner repair.
      89 325ix coupe Diamondschwartz
      1994 Mazda Miata

      Comment


        #4
        check your seam sealer where the quarter panels meet the rear tail panel. with age they will crack and allow water in. Also, the grommet for the wiring for the rear side marker lights can also crack and allow wager into the trunk.
        Alex 88 m5 | 91 318is | 19 Subaru Ascent
        BMW Tool Rentals & Fender Roller

        Comment


          #5
          Make sure the plastic/rubber flap vents that go under the bumper on the sides are sealed properly - I usually clean them well and silicone around the oval. Let me know if you need a pic oaf what I am talking about.

          Comment


            #6
            Originally posted by packratbimmer View Post
            Make sure the plastic/rubber flap vents that go under the bumper on the sides are sealed properly - I usually clean them well and silicone around the oval. Let me know if you need a pic oaf what I am talking about.

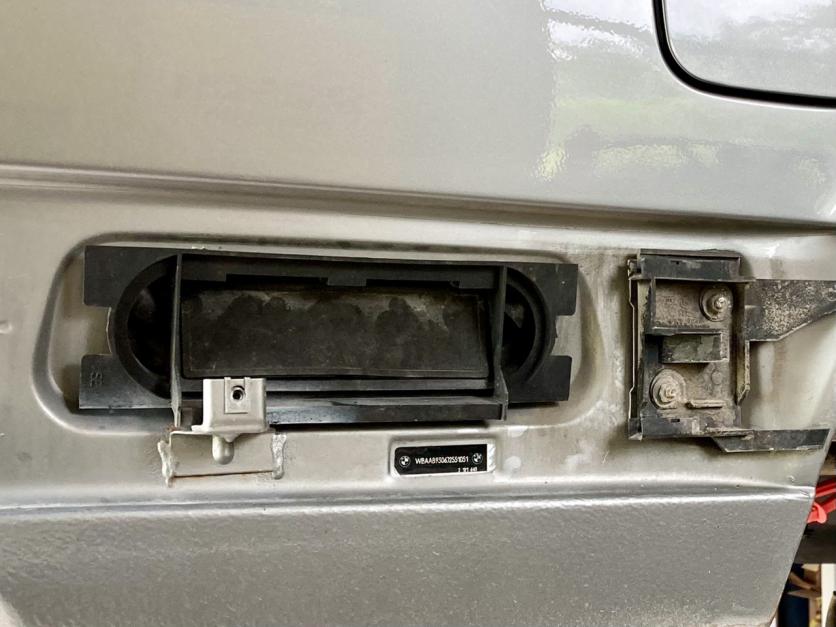

            So where do you apply the silicone?
            Attached Files
            89 325ix coupe Diamondschwartz
            1994 Mazda Miata

            Comment


              #7
              I would be careful with silicone. Some types are acidic - they will end up *causing* rust instead of preventing it. Probably better to use a rubber plug instead. I'd hit up the hardware store and see what you can find.
              Build thread

              Bimmerlabs

              Comment


                #8
                Pop the big rectangle out of the oval hole. Clean everything well. Dry well. There is a gasket around it. Seal with your favorite sealer. I'm thinking most automotive grade silicone products are fairly acid free due to use on cooling systems, but by all means watch for acidity issues.

                Comment


                  #9
                  You can get new gaskets from BMW, please don't silicone.

                  I was up above it, Now I'm down in it ~ Entropy - A Build thread.

                  Comment


                    #10
                    Trunk vent gaskets = 64 22 1 922 280

                    https://www.fcpeuro.com/products/bmw...ng-64221922280

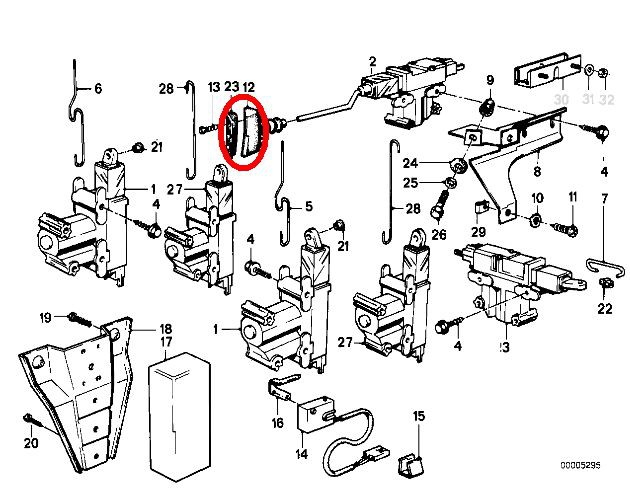

                    The fuel filler door locking rod trim can also leak if someone has removed it in the past. BMW uses some butyl sealant around the inside perimeter of the rubber boot where is presses against the body (deep inside the quarter).

                    Between these two parts:

                    Click image for larger version

Name:	lock.jpg
Views:	44
Size:	86.7 KB
ID:	10019613

                    Comment


                      #11
                      Thanks fellas! So the more you research the more possbile sources for trunk leaks! Will order gaskets for the trunk vent (thanks packetratbimmer!) and also the fuel filler door locking trim (thanks mjweimer!)
                      89 325ix coupe Diamondschwartz
                      1994 Mazda Miata

                      Comment
