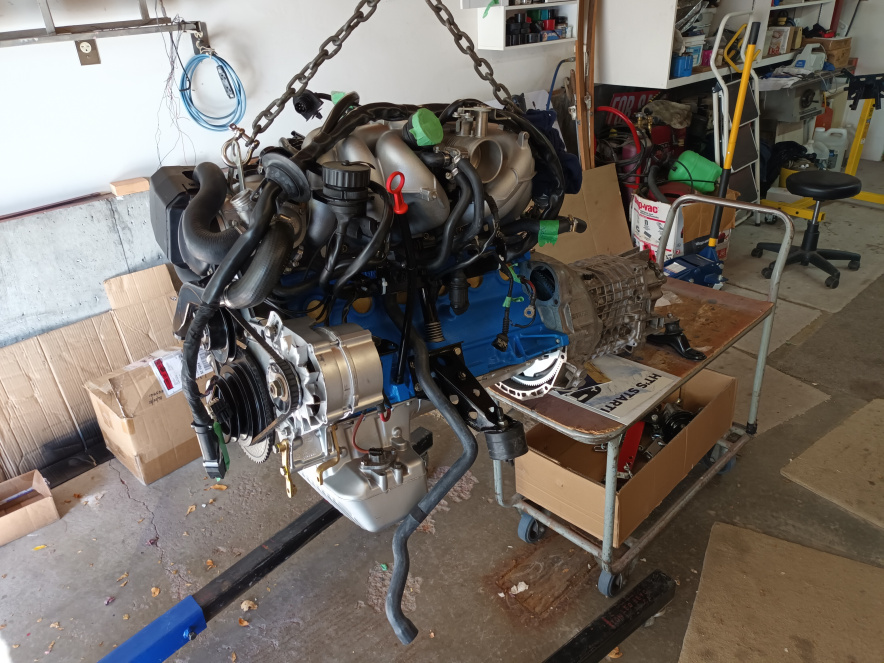

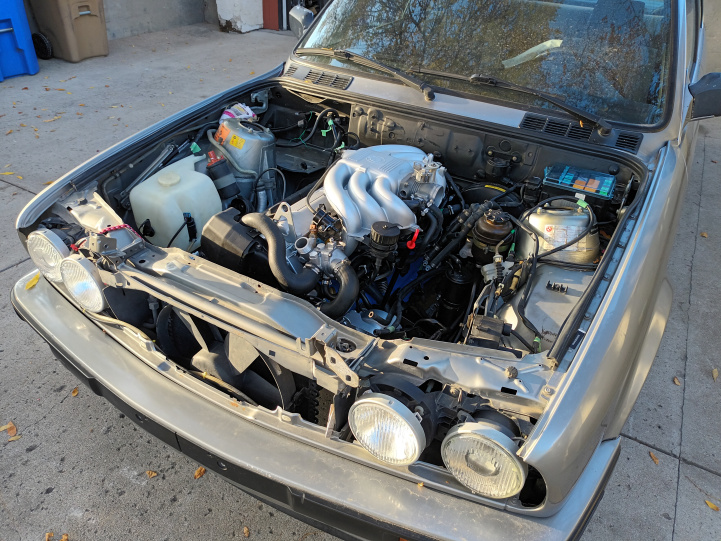

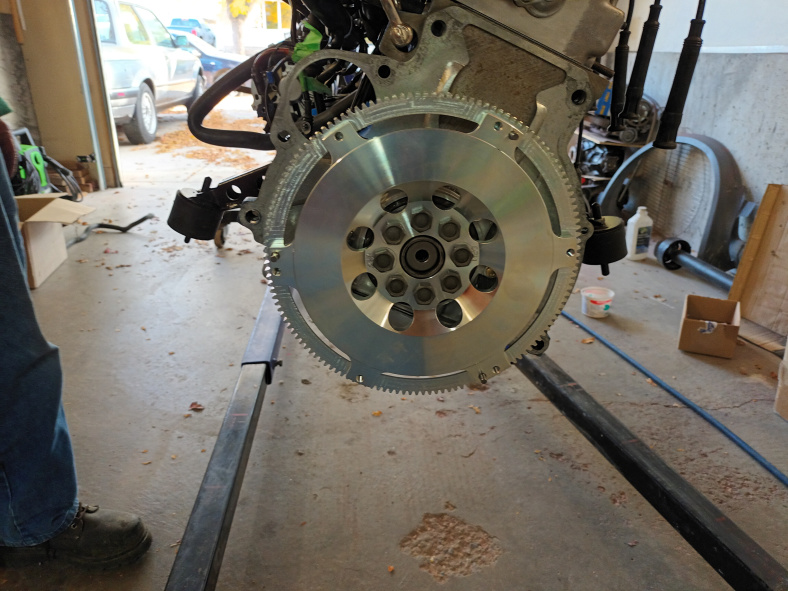

    m20 street build : part deux

    so we'll try this again. the last attempt merged two posts exceeding the number of pics allowed. hopefully i can have the other thread flagged and deleted.
    will try keep it all here.

    putting together an m20 street car. took the block in to the machinist and had him clean it up and put new freeze plugs, rings and bearings in.


    Click image for larger version  Name:	7qlG9wQHi_nXutLOaCs6H4A6GmuUdUjdtm6oRFlPue3CVhVKOIkLiaWHRKOBtRgPEEXPKusnGMiA64kiIzk6ZOSEgeBabsXWIxnkg12wOsN6O-f9IjLmiZZCOVeEICWLAcrBn7D7lA=w2400.jpg Views:	0 Size:	89.1 KB ID:	10032700





    made sure it wasn't tanked due to the intermediate shaft babbit bearing.
    crank and rotating mass were rebalanced




    Click image for larger version  Name:	UJlnFKg4SxMiNxuxS0dts9KibKtl9Sob_VoKJA-f6QNTlcrSFlqA5BcxRjnolaEjsK6cHR0TA9jOW5lT1vIxyuVfNjm4uZQ_-gFgy-WoLCCy_QSigA2hZWg7XUkNasl2Y-UolacK3g=w2400.jpg Views:	0 Size:	76.7 KB ID:	10032701





    gave it some color




    Click image for larger version  Name:	eyXI4x-JPmB59j9yY6yr0wbf9OwwvwHKfUxk1TVlxE1e42cB084fld84GpkExEHs_aW57qe6chxYGirxQKlGXwW_wXtvci9XT_uS6tFBl_cUSPgLMjlHplGgFErOBP-sN1ZhQ3UIVA=w2400.jpg Views:	0 Size:	86.4 KB ID:	10032702

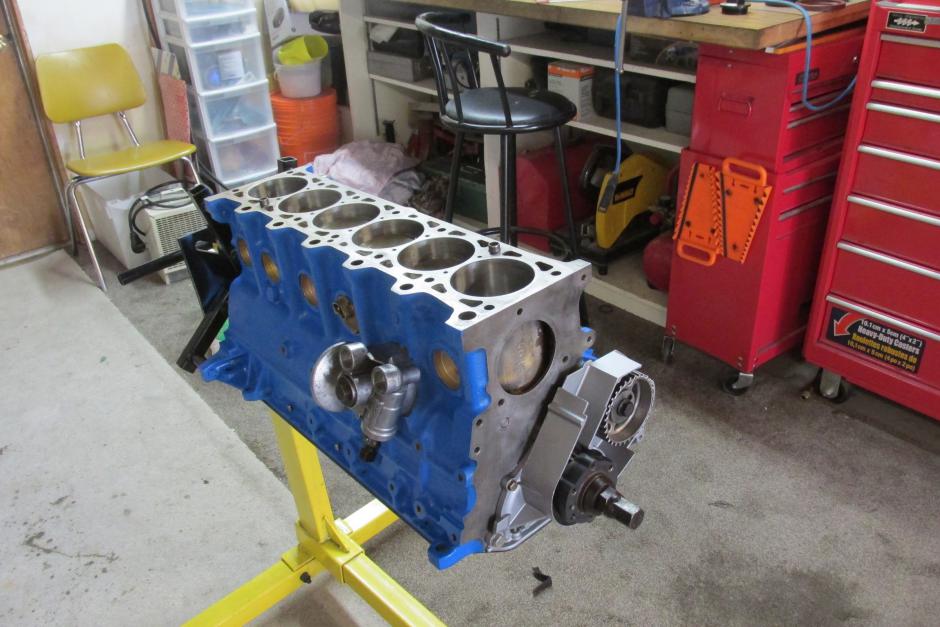

    got the crank and intermediate shaft timing pulleys in, popped the oil filter / cooler line holder and oil temp sender on. new seals / gaskets of course.




    Click image for larger version  Name:	60RMGokkJYEReemchf_w7Us7MDOhTPA7l4nGWVaGJGG_t9fa_gjF7wY4Jopvw77qXnBa2TJQRppfSxu8wY_wxnr6mgOkV4TRX2M0ej0YE-omllkUqeZYBtmdElqXWxLaae9XwwvyMw=w2400.jpg Views:	0 Size:	86.1 KB ID:	10032703






    then added a crank scraper. my pops clearanced it bit by bit with a set of hand files. slow and careful.




    Click image for larger version  Name:	prwlTZofaPaVvacQ1NXxtCwBCysGVY7Yq_1fu7pkpOnO1SRMWuZ2h04Bt8G8eu3odm39cyc1DXFIyrLf7UJ4E0RAQQFu3ypDI4aFEO9RWQHHEHDn4Mg8Mf2KR0LO9-kFkAhcmT74rA=w2400.jpg Views:	0 Size:	96.0 KB ID:	10032704






    more on the way ...
    Last edited by 82eye; 10-01-2021, 08:26 AM.

    #2
    oil pump and relief valve cleaned up and installed.


    Click image for larger version  Name:	t3yYJf6sEnrh3VP4nIKJAP1580nIILZNXsDL3m5gd9TigS-cQU5wUwVaunVhAVkAPk6ExwVlxyDcruYdq1G1M6zckW3zRTBG6ObRGtDZjHH45I5pHa9DiASLLLP_NMot_Xk99vDMCQ=w2400.jpg Views:	0 Size:	82.7 KB ID:	10032710




    cleaned up the oil pan and added a baffle.




    Click image for larger version  Name:	IrUFI5TlPDFkOWVJpgQP66SXvK2Tov0jgzSEOjGG3_jjyT1fmPJtiCki90xrdgpNTlfHWzJnZgfboH2U2LgcOkKn1bf9rqJ4NeX_QPRn-KkIL-OrbF5Q2j8Bruc5nhV-PR_VURWc6A=w2400.jpg Views:	0 Size:	72.3 KB ID:	10032711




    i needed the oil pump and relief installed to clearance the baffle. it was a complete pain. had to reverse one of the bolts as well as clearance.



    oil pan got a little color before final fitting.



    Click image for larger version  Name:	zk8OJQP-BxU-G7MvDP3gN_zknxX2Kbipklic9Q68lmMQxK10ArNkN4RS5gOdz614Rm-c2Jd9e6gwJdz7PgASWRbc9Qz9k7CtLHgZQAEK_lq3RrWZwZDMte0MWGsMu0nsu4DfNt9uOA=w2400.jpg Views:	0 Size:	61.8 KB ID:	10032712



    at this point i busted a bolt getting the rear main seal cover torqued on. the stud broke outside the block so it was easy to remove. decided to replace them all but it halted getting the pan on.


    turned my attention to the head.




    Click image for larger version  Name:	kkslO2uab3lloy9LLvEz26iNZkfR30ntKTpbJw55PcEDXaXfmhQkmg5f-JpTen6BWMjPtmzUKGyIcSUb811Yc86xogil-nb2bSNKOxYh8Hd6gf4xUBhrZNlxhKqeBSTgXWH6O1efAg=w2400.jpg Views:	0 Size:	89.1 KB ID:	10032713



    it got cleaned up with a valve grind and new seals. kept the springs as they were good. was a bit of a debate as i went with new hd rockers.



    Click image for larger version  Name:	jeKucTQvpHc9vKTBfxD1D0bgmvKZPsGWII4vQ3Lg9mFpdjJCURcZrw8ICD-zV_3Ipx_7AuV0t5RO18jVbqWbOUf7azs019vZ7xgXM0w4MEZeozdUIaFVYbUyFLAK9TkUtqUgqjTMmg=w2400.jpg Views:	0 Size:	73.4 KB ID:	10032714




    newer meatier rocker is on the right. i also reused the eccentrics. a lot of the original gear was in good order. i'm starting with a 100k mi car.


    more soon ...


    Last edited by 82eye; 10-01-2021, 08:28 AM.

    Comment


      #3
      cam got sent off to vancouver for a regrind from colt cams




      Click image for larger version  Name:	B8b9Fc_fgXaCgElqCDrgXsd1p_pIV1kLLfpr9FJdXTNqljGc7nTD6Aw9kiBdCn-ona5wKmeFU4GspP7hq2By1nTlowwdumPMlRqN_SxaWSFBhDhwGUkVZX6qx-FDMhGWnsz8Pnjfhw=w2400.jpg Views:	0 Size:	75.8 KB ID:	10032727





      272 regrind



      Click image for larger version  Name:	yc2DkyjyFqWdezS0KWWTXIf-K3qpodQcfPRuC1wQPVQAZo-3KIVNZbCJIay_YhmvaEX6DeGTNKbYaEIlBSFlWgW1vSlsW-TzE3Vy6QJD4ijYZYTpPDFtJY44Pbxc-GmGywAvArf4vg=w2400.jpg Views:	0 Size:	91.5 KB ID:	10032728




      got the valve train back together with a new cam seal, and rocker shaft plugs.



      Click image for larger version  Name:	6B-z9MrTHyaQfsm7mKzpsHrFJ82j3G2gnZGRxY7szlotr8a3KbIzcQEHyaJ9DE7ww0yOvRuBV_VyTqSMciKXwne0xhAASkJF-vv1xMFwa4OwL8JpyP4e-L43HJxTRTZDBQfnwNBhig=w2400.jpg Views:	0 Size:	92.0 KB ID:	10032729





      had to get a few new studs. some of the old ones weren't in great shape. someone had done a valve adjustment or cover gasket and used insane amounts of loctite and silicon sealer. some of the old ones stripped. it was super lucky i didn't strip the head bosses. the new valve cover studs weren't long enough to engage the threads on a nut once installed.




      Click image for larger version  Name:	gd4lI_KABYE5GWQ5f-HtOqEbVtUsGAWk4mh3hDydwx1-Z-0OLNl9Y-tbD4353PCDSnKu0HEhTYEozJYyNGGVOH2T8ufMvkERQt_xtTkg8pofo49eErjUX7ckxZ3o2hHeVNaQ7y5bjQ=w2400.jpg Views:	0 Size:	53.8 KB ID:	10032730



      bit of a disappointment. built some new studs from m6 x 40 bolts to replace the bad ones and kept going.



      Click image for larger version  Name:	R1xVtzcmAET4QgNbb9v7p1I75v-KrgE7SMYrLoxT8dplq7-j_cwNziQtExvSPWTjiDN-9bmoB_3tCkctbifvvbjCJj1SvUEtninmO0poFCbK5B38clVgKRq3z8EoF7U3MPgfrevqLA=w2400.jpg Views:	0 Size:	76.0 KB ID:	10032731




      should have just done that in the first place and saved the cash.


      more to be done ...




      Comment


        #4
        adjusted the valves at the bench then cleaned up the valve cover.



        Click image for larger version  Name:	MhJnUXcBxABDBzn8bUwW_ciMiVUnRLUIYazVrunaBFRSHkkK8IA7snVa526oip8t1ezPHwZD4Q7u4GfzSSMSomYdfH-Q0sXcRTIMAtuyLcpNRtSb9d2UZlv_llnD7PLhqkhT7HXFHQ=w2400.jpg Views:	0 Size:	77.0 KB ID:	10032737






        valves will need to be checked again once the head gets mounted.

        got the rear main seal and cover on with new bolts.



        Click image for larger version  Name:	DutdHEmZCE9j3mQs_csKf7uQm-Zn_WchlnGaAqs_Z1lTb36IIIjw17fkarZzeRzBNF_rYtlxLgf8gbE-IgqOFWpSRqpK8zGYNSLSbP15UHYeTjX2QAWAIRGK4idJUOIhTT0iEHlTdg=w2400.jpg Views:	0 Size:	78.3 KB ID:	10032738




        that allowed me to get the oil pan on finally.




        Click image for larger version  Name:	e4231DVkVs66dYjG2m8Q8_FL9ASW1X9KvMhFZ5dW48rz_U7nY4pNZ19R8XiEPtqAWqBhAiMDWgCVfPIog_g2TAw8y9bxlN3LEtmmKsu1dKMprYd8LoQl6-pPbp3FYP6MMRSS4wMLrQ=w2400.jpg Views:	0 Size:	77.4 KB ID:	10032739






        used two cork pan gaskets to sandwhich the scraper. they really squished out when torquing the pan in. can see it in the shot of the rear main seal. hope they sealed decent or i'm looking at a mess once in the car.

        installed a new water pump and tensioner.



        Click image for larger version  Name:	GnosDAR7x6NjYu_asEGC2I0jvq0gz6cQqkDWo89k0lopy7gOvccXY5gZhAozBYY0qsa4CZUBmPcTRPeP23h8-7qxvkNoAdJSPj4XPfqXtDFcIwxLcsuyxqWWxkbrAufTr5w0asb-ug=w2400.jpg Views:	0 Size:	86.3 KB ID:	10032740




        re used the pin and spring as they were good. may still replace them, as i might have a new set floating around my parts bin.


        kinda got stalled here as i'm waiting for head bolts. really wanna get this engine together before it gets cold. all work gets impossible in the winter here.


        Comment


          #5
          head bolts got here. things warmed up yesterday a bit so i fired up the little electric garage heater and got some work done. tapped out the head bolt holes for a cleaning, and wiped the mating surfaces on the head and block down with isopropyl.




          Click image for larger version  Name:	79akQ2FL-nJoYqJvrqAFPQG5591u6t9qRVyHyEXlKCDekXaRm1tzyXV9Tqdp_C1JcyqgzckkybJUaSnk4Nap9Img75y8uqxRoGX-7axccToXR_UpHU0I6Z2JDILQ30_C1yMHUmkq1A=w2400.jpg Views:	0 Size:	86.0 KB ID:	10037580







          got the head back on. torqued it in over 4 stages. went a bit slower as it was a little cool and we wanted to let it all get a bit warmer.




          Click image for larger version  Name:	N9g3icDgH34RtPeyU5Hwae8EscOpYpmDR303xzcYavGjzF4dqdAigpNRk64PzV0bVSWFE-viqyngaNwpNWPAvM7xikxgT9XBaj4UGiH2QobSXVi8uKLKW92Wmnr-jlhHFqo1AtXu3w=w2400.jpg Views:	0 Size:	92.0 KB ID:	10037581





          put the belt on to keep it all safe. gave it 2 turns and all was good. no clicks no noise, and locked the tensioner. belt walked itself perfectly in line.





          Click image for larger version  Name:	E6I77rXWOsssjmZi2vCmM74ymTyIShgeiZSQkePNUwtZ6jjmu65n4BhSeGLXQzU3V-gweEv5QvYcO4Nw-qvkx8ca5AgCtzK9A47ju5zARm2HPJlVOGHBazMSLsD_QTIn5RxiByp0qQ=w2400.jpg Views:	0 Size:	94.8 KB ID:	10037582






          there's no gasket under the valve cover. it's just on loose to keep dust out for now. i gotta find the front covers and lift hook in my parts mess.

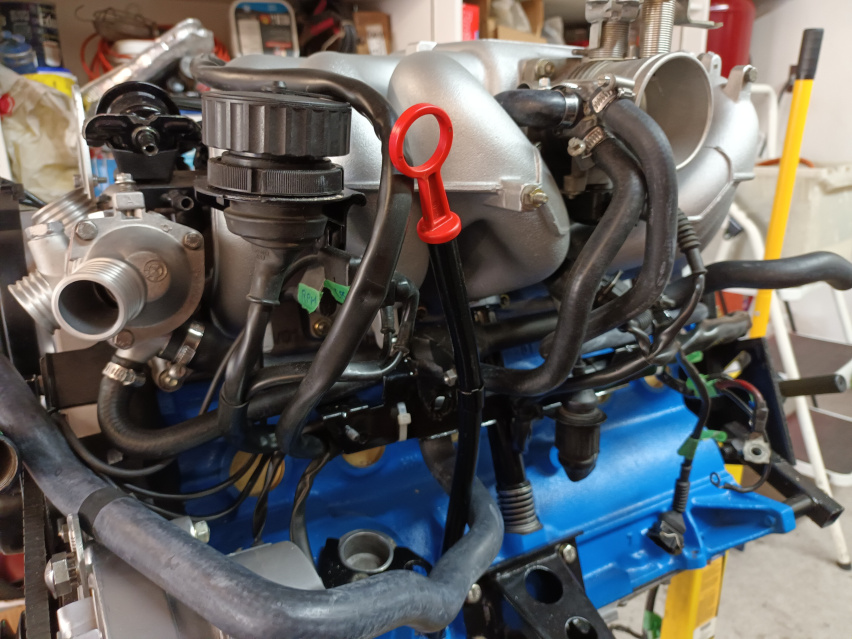

          at least it's starting to look like something. if it stays nice i'll see what i can get done on the intake today.
          Last edited by 82eye; 11-22-2021, 10:13 AM.

          Comment


            #6
            This is a great build and exactly what I'm working on doing as well (still collecting parts)!

            Comment


              #7
              Originally posted by FlippJr66 View Post
              This is a great build and exactly what I'm working on doing as well (still collecting parts)!
              it's pretty standard really. there are much more involved engine builds on this board.
