Help diagnosing driveshaft vibration

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    #16
    When did you get the poly mounts?

    I was up above it, Now I'm down in it ~ Entropy - A Build thread.
    @Zakspeed_US

    Comment


      #17
      Originally posted by moatilliatta View Post
      When did you get the poly mounts?

      The poly mounts for the transmission were installed Jan 2018, same time I removed the driveshaft vibration damper, converted to a DSSR shifter.

      Comment


        #18
        Originally posted by Kelso840 View Post
        Gotcha. Yeah, I bet you're just feeling more vibration with the new driveshaft.

        The rubber isolator would be on the shift lever itself, not the DSSR linkage. The photo I posted is looking up the skirt of a shift lever to show how the lower section that goes into the shifter cup is isolated from the top part your hand holds via rubber. I can't remember if the stock e30 shifter lever is designed like that or not.


        That's the part I'm hung up on. One would think that a new driveshaft that's been balanced, new u-joints, new CSB, new guibo would have less vibration.


        The true test I guess is installing the old driveshaft and it's guibo (was still good) for a comparison.

        Comment


          #19
          I still stand on getting rid of those trans mounts and getting a set of rouge engineering if you want something stiff stiff but compliant.

          I had a car that seemed to vibrate more in 5th. Maybe gearbox?

          I was up above it, Now I'm down in it ~ Entropy - A Build thread.
          @Zakspeed_US

          Comment


            #20
            Originally posted by moatilliatta View Post
            I still stand on getting rid of those trans mounts and getting a set of rouge engineering if you want something stiff stiff but compliant.

            I had a car that seemed to vibrate more in 5th. Maybe gearbox?


            I'm not seeing a set of trans mounts from Rouge Engineering for E30's ??

            I have the common getrag rattle, so maybe that's the source of the vibration?

            The trans output is pretty solid, I tried to move the driveshaft up and down near the gumbo and there was no play.

            Comment


              #21
              E46/ e36 ones work.
              https://www.bimmerworld.com/Drivelin...EaAjzJEALw_wcB

              I was up above it, Now I'm down in it ~ Entropy - A Build thread.
              @Zakspeed_US

              Comment


                #22
                I had something similar happen with my DS, but it would vibrate when decelerating. I found out it was a combination of my trans mounts (80a thru bolt) being compressed and the rear subframe sagging on the Garagistic 80a mounts. This cause the diff pinion angle and trans angle to be out of alignment by 3-4*. The U-joints on the DS accelerate and decelerate as they spin and the greater the operation angle the greater the angular acceleration. I think the trans and diff angle need to be at equal but opposite angles (-1* and +1*) to cancel these vibrations out.

                When youre at speed does the vibration change when you accelerate vs decelerate?

                Comment


                  #23
                  When gearbox was out?

                  Since you vib. on load and goes with clutch in (unload), A combination of stiff mounts and slightly loose/not aligned engine-transmission bolts might be your issue.

                  Comment


                    #24
                    Originally posted by cdl723 View Post
                    I had something similar happen with my DS, but it would vibrate when decelerating. I found out it was a combination of my trans mounts (80a thru bolt) being compressed and the rear subframe sagging on the Garagistic 80a mounts. This cause the diff pinion angle and trans angle to be out of alignment by 3-4*. The U-joints on the DS accelerate and decelerate as they spin and the greater the operation angle the greater the angular acceleration. I think the trans and diff angle need to be at equal but opposite angles (-1* and +1*) to cancel these vibrations out.

                    When youre at speed does the vibration change when you accelerate vs decelerate?

                    The vibration is more pronounced when I accelerate. When i let off the gas, the vibration is noticeably less.

                    I'll see about getting a digital angle measurement tool.

                    I have new trans mounts on order. My rear subframe mounts (Garagistic 80A) are only 2 years old, I hope I don't have to replace those!

                    Comment


                      #25
                      Originally posted by ADEN View Post
                      When gearbox was out?

                      Since you vib. on load and goes with clutch in (unload), A combination of stiff mounts and slightly loose/not aligned engine-transmission bolts might be your issue.

                      Thanks, I'll check on those. I have new trans mounts on order. I'll double check my engine mount bolts to make sure they're secure. I re-torqued my trans mount bolts recently with no change.

                      Will be checking alignment to the best of my ability.

                      Comment


                        #26
                        What are you running for engine mounts? Could the CSB be backwards?


                        I was up above it, Now I'm down in it ~ Entropy - A Build thread.
                        @Zakspeed_US

                        Comment


                          #27
                          Originally posted by grantmiller1 View Post


                          The vibration is more pronounced when I accelerate. When i let off the gas, the vibration is noticeably less.

                          I'll see about getting a digital angle measurement tool.

                          I have new trans mounts on order. My rear subframe mounts (Garagistic 80A) are only 2 years old, I hope I don't have to replace those!

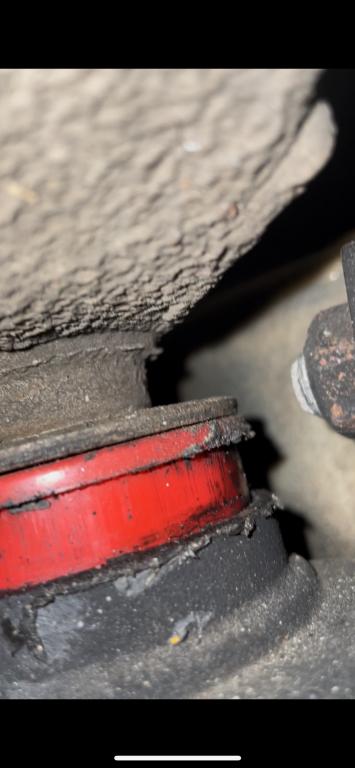

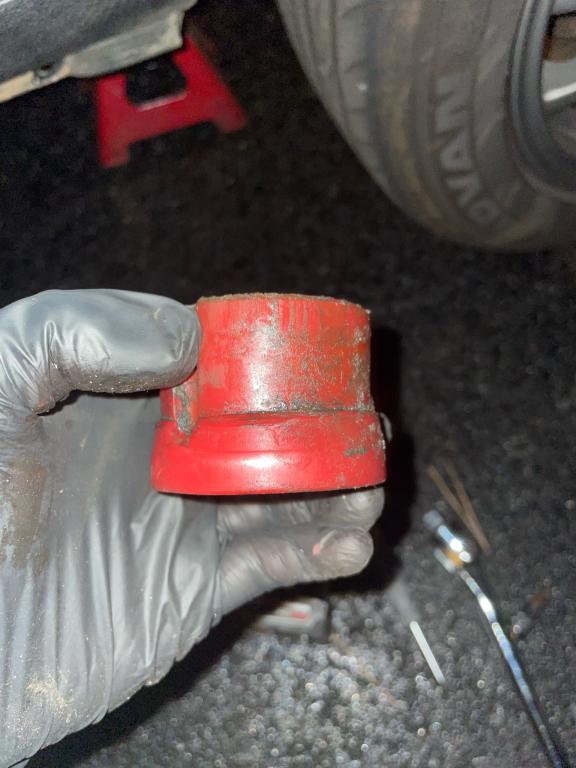

                          I believe mine would vibrate bad under decel, but go away when i pressed the clutch or accelerated. Here is a picture of my subframe bushing when they failed. the 2nd pic is in the car and the room on top of the subframe/bushing.

                          Also, these were their raised subframe bushings and the diff was properly spaced down
