    Originally posted by Mike36 View Post
    This gonna be good!
    Thanks for the confidenceπŸ™πŸ» Hope so after all this work
    ​

    1989 BMW ​325i - M54B30 Swap in Progress
    IG : e30rossi
    Montreal, Canada

    Comment


      Click image for larger version

Name:	426.jpg
Views:	141
Size:	193.1 KB
ID:	10085614
      Continued with the bodywork this past weekend, seems like it never ends

      Click image for larger version

Name:	427.jpg
Views:	136
Size:	166.9 KB
ID:	10085613
      Driver side got a coat of primer to see any imperfections since it was 16 different colours

      Click image for larger version

Name:	428.jpg
Views:	147
Size:	178.7 KB
ID:	10085612
      A little bit of primer goes a long way!
      Click image for larger version

Name:	429.jpg
Views:	141
Size:	209.7 KB
ID:	10085615
      Click image for larger version

Name:	430.jpg
Views:	141
Size:	206.9 KB
ID:	10085616
      Not perfect but pretty proud of where's it's at since I've never touched body work ever before this
      ​

      1989 BMW ​325i - M54B30 Swap in Progress
      IG : e30rossi
      Montreal, Canada

      Comment


        Click image for larger version

Name:	431.jpg
Views:	141
Size:	218.9 KB
ID:	10085619
        Ran out of primer, but trying to tackle one area at a time

        Click image for larger version

Name:	432.jpg
Views:	141
Size:	174.0 KB
ID:	10085620
        Been avoiding this corner since the beginning, definitely the worst part of the engine bay
        You'll see why soon enough

        Click image for larger version

Name:	433.jpg
Views:	149
Size:	178.1 KB
ID:	10085618
        Started working on the firewall, I cut off all the studs for the plastic nuts that hold the oem insulation since that won't be used anymore
        A few problem areas but nothing major and mostly hidden by components

        Click image for larger version

Name:	434.jpg
Views:	137
Size:	159.5 KB
ID:	10085622
        I was so tempted to remove the fusebox to get to this corner but it's sooooo much work for what I'd get from it!
        I will have to work around it, at least it's has some flexibility to move around!

        Click image for larger version

Name:	435.jpg
Views:	139
Size:	197.7 KB
ID:	10085621
        Figured I'd paint the top of the fender supports with the body colour while I'm painting
        ​

        1989 BMW ​325i - M54B30 Swap in Progress
        IG : e30rossi
        Montreal, Canada

        Comment


          Click image for larger version  Name:	436.jpg Views:	0 Size:	169.7 KB ID:	10085624
          Laid on a coat of undercoating on the front part of the trans tunnel so it would be ready for paint as well!
          Got to lay in there to get to the shifter area since I removed the undercoating I applied a few years ago after never drying properly

          Click image for larger version  Name:	437.jpg Views:	0 Size:	185.2 KB ID:	10085628
          Keep dreaming of seeing this thing with the suspension and wheels back on, laid back down on the ground

          Click image for larger version  Name:	438.jpg Views:	0 Size:	233.3 KB ID:	10085625
          So glad I removed the core support, working in here is 100x easier

          Click image for larger version  Name:	440.jpg Views:	0 Size:	140.1 KB ID:	10085627
          Driver side got some finishing putty and a coat of primer, and now it's pretty close to perfect in my eyes
          Will be applying seam sealer to all the seams and the front welds which will be hidden
          Click image for larger version

Name:	439.jpg
Views:	140
Size:	216.8 KB
ID:	10085626

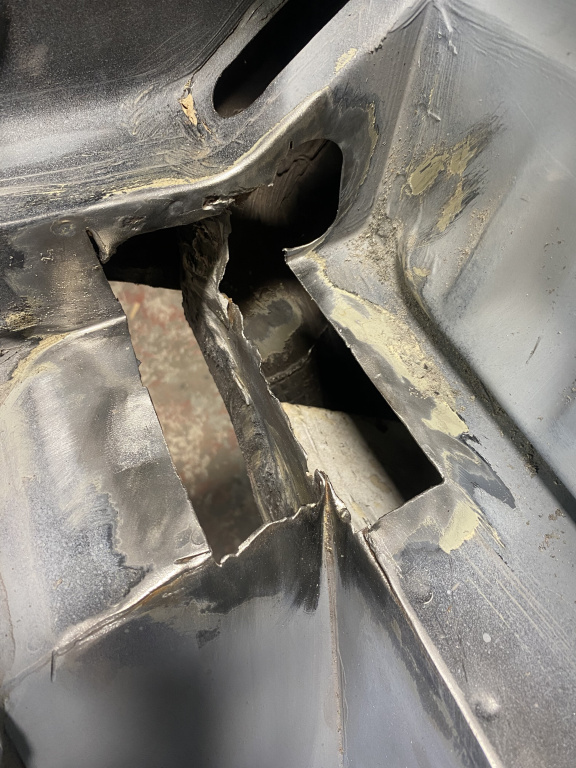

          So..... I've been avoiding this spot since day one
          There was a small rust hole, and I previously glued in a piece of metal with JBWeld while I redid the rest of the car
          knowing it would be temporary and Id take care of it properly once I got in the engine bay repairs
          I hit this area with the wire wheel in the wheel well, and it just grew to the point where I had to cut it all out
          The part that stresses me the most is the other side of that hole in the back is inside the car behind the dash
          I have access to it, but It will be very sketchy to weld without removing the dash.. I guess I will find out this week how that goes!
          Wish me luck
          ​

          1989 BMW ​325i - M54B30 Swap in Progress
          IG : e30rossi
          Montreal, Canada

          Comment


            Click image for larger version

Name:	441.jpg
Views:	139
Size:	236.6 KB
ID:	10085632

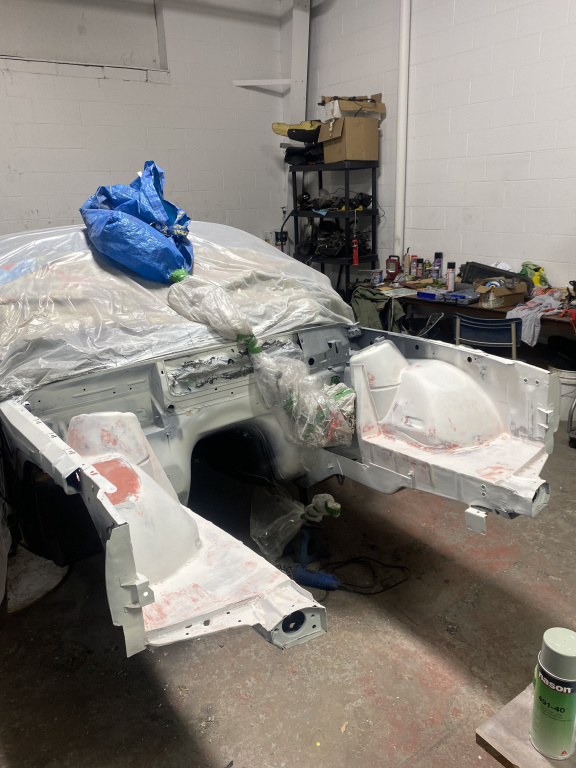

            After hours of finding imperfections, finishing putty, sanding, and repeat
            I finally was able to hit the engine bay with a thick coat of high build primer
            Besides that one corner I need to address, overall it's looking pretty ready for paint!

            Click image for larger version

Name:	442.jpg
Views:	138
Size:	154.3 KB
ID:	10085633
            Ran out of primer on this side so gonna have to finish the coat once the battery tray is done

            Click image for larger version

Name:	443.jpg
Views:	139
Size:	164.6 KB
ID:	10085634
            There's some small holes under the blower motor, but this is where I draw the line.
            Cleaned it up as much as possible, hit it with some rust converter
            It's going to be completely covered either way

            Click image for larger version

Name:	444.jpg
Views:	137
Size:	151.1 KB
ID:	10085635
            Started making the patch piece, going to cut a little further out and get this welded in this week, and that concludes the engine bay repairs 100%

            Click image for larger version

Name:	445.jpg
Views:	151
Size:	166.1 KB
ID:	10085631
            Little before / after of the last 3 months of work on every single weekend to get to this point
            Felt like I wasn't making progress but sometimes looking back makes you realize

            Next 3 months will be dedicated to tearing the motor apart ( Yes I decided why not while we're here)
            Rebuilding it and replacing whatever needs to be replaced.
            Any recommendations of what to replace would be appreciated!!
            Just talking about engine interals here, because I already have every single sensor and part around the engine brand new
            ​

            1989 BMW ​325i - M54B30 Swap in Progress
            IG : e30rossi
            Montreal, Canada

            Comment


              Originally posted by E30Rossi View Post
              The part that stresses me the most is the other side of that hole in the back is inside the car behind the dash
              I have access to it, but It will be very sketchy to weld without removing the dash.. I guess I will find out this week how that goes!
              If you can, get a bigger piece of aluminum or copper on the dash side. Can hold it in place with strong magnets. It helps to block some of the hot bits from coming through. Just did this last weekend when welding into the trunk from the rear wheel tub.

              Try to have someone on fire watch if possible.
              And keep water & fire extinguisher BESIDE you while welding.


              Originally posted by E30Rossi View Post
              Little before / after of the last 3 months of work on every single weekend to get to this point
              Felt like I wasn't making progress but sometimes looking back makes you realize
              Doesn't even look like the same car anymore!

              I love reading/posting build threads for this reason, makes you realize/helps you remember how much work went into it.

              Comment


                Originally posted by Panici View Post

                If you can, get a bigger piece of aluminum or copper on the dash side. Can hold it in place with strong magnets. It helps to block some of the hot bits from coming through. Just did this last weekend when welding into the trunk from the rear wheel tub.

                Try to have someone on fire watch if possible.
                And keep water & fire extinguisher BESIDE you while welding.



                Doesn't even look like the same car anymore!

                I love reading/posting build threads for this reason, makes you realize/helps you remember how much work went into it.
                Thanks for the tip! I think we have a fire blanket at the shop and I will definitely be ready with everything I have for prevention just in case!

                I appreciate it! And I think it was the best idea to go back and post my journey since day one just for myself to be able to go back and see all the progress! Also pretty cool when other people can appreciate and benefit from it!

                ​

                1989 BMW ​325i - M54B30 Swap in Progress
                IG : e30rossi
                Montreal, Canada

                Comment


                  Click image for larger version

Name:	446.jpg
Views:	110
Size:	227.8 KB
ID:	10086503
                  Welded that piece in without lighting the car on fire! Lots of precautions were taken and definitely stressed about it the entire time
                  but we made it through!! Happy that I was able to cut out most of the badly rusted areas on the car now!

                  Click image for larger version

Name:	447.jpg
Views:	110
Size:	234.7 KB
ID:	10086504
                  Grinding down welds to blend it in more

                  Click image for larger version

Name:	448.jpg
Views:	121
Size:	229.0 KB
ID:	10086502
                  After welding that part, there was a pretty large gap under from all the rusty metal being cut out
                  So we proceeded to cover in this section completely in the fender well

                  Click image for larger version

Name:	450.jpg
Views:	109
Size:	182.6 KB
ID:	10086505
                  More putty, sanding and paint prep!

                  Click image for larger version

Name:	451.jpg
Views:	110
Size:	182.3 KB
ID:	10086506
                  Laid another coat of high build primer
                  Very close to being ready for paint now!
                  It's not perfect in some places, but as I've said it's my first time and I'm learning as I go!
                  ​

                  1989 BMW ​325i - M54B30 Swap in Progress
                  IG : e30rossi
                  Montreal, Canada

                  Comment


                    Click image for larger version

Name:	452.jpg
Views:	121
Size:	182.9 KB
ID:	10086508
                    Very annoying trying to work around the fusebox, but the amount of work involved in depinning it is not worth the
                    trouble in my opinion, so I will have to find a way to paint with it there

                    Click image for larger version

Name:	453.jpg
Views:	110
Size:	172.0 KB
ID:	10086511
                    Looking smooth for the most part!
                    There are minor imperfections here and there that I will try to address one last time
                    All the seams and edges will get seam sealer, so that will help

                    Click image for larger version

Name:	454.jpg
Views:	111
Size:	208.0 KB
ID:	10086512
                    Driver side looks good! There's areas like the frame rail and the part that will be covered by the core support
                    That I've tried and tried to make perfect but realized they will never be visible and I was driving myself crazy over it

                    Click image for larger version

Name:	455.jpg
Views:	112
Size:	153.4 KB
ID:	10086509
                    Some more sanding to do in this corner as it was the last area worked on
                    Will get to that this week before paint!

                    Click image for larger version

Name:	456.jpg
Views:	110
Size:	173.3 KB
ID:	10086510
                    Hadn't touched the corner behind the fusebox either so this got some putty and primer

                    I was offered to get the engine bay painted by a professional painter at the shop this coming weekend
                    I had no choice to take up the offer, so stay tuned for paint very soon!!
                    I'm super excited to conclude this part of the build and move on the the motor!
                    ​

                    1989 BMW ​325i - M54B30 Swap in Progress
                    IG : e30rossi
                    Montreal, Canada

                    Comment


                      Click image for larger version

Name:	457.jpg
Views:	89
Size:	206.7 KB
ID:	10086914

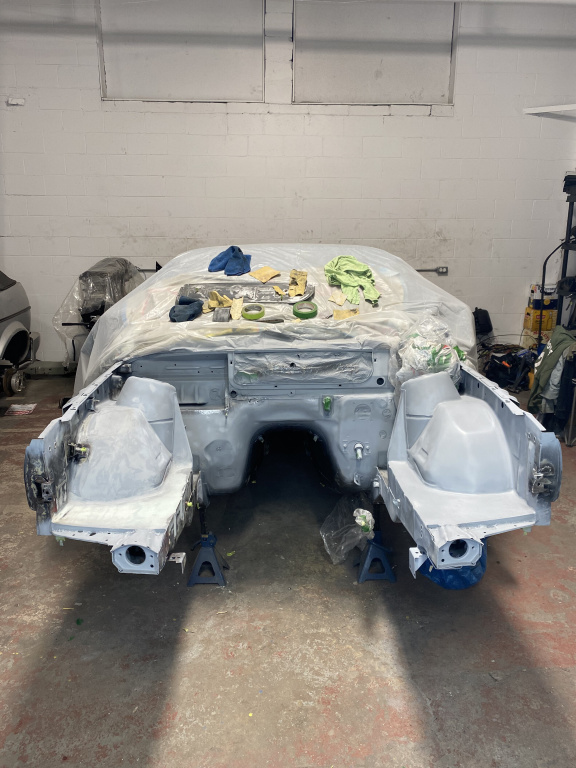

                      Final prep before paint this weekend!

                      Click image for larger version

Name:	459.jpg
Views:	88
Size:	184.6 KB
ID:	10086913
                      Taped all the areas for seam sealer

                      Click image for larger version

Name:	460.jpg
Views:	96
Size:	176.2 KB
ID:	10086912

                      Click image for larger version

Name:	461.jpg
Views:	89
Size:	190.2 KB
ID:	10086915
                      Started to apply seam sealer
                      Definitely takes some practice!
                      I learnt by trial and error than you can pass your finger through once after applying and that's it
                      Second time ruins the texture. Oh well, live and learn

                      Click image for larger version

Name:	462.jpg
Views:	89
Size:	196.4 KB
ID:	10086916
                      ​

                      1989 BMW ​325i - M54B30 Swap in Progress
                      IG : e30rossi
                      Montreal, Canada

                      Comment


                        Click image for larger version

Name:	463.jpg
Views:	88
Size:	187.8 KB
ID:	10086920
                        Finished seam sealing, and sanded down the primer to be ready for paint the next day!

                        Click image for larger version

Name:	464.jpg
Views:	95
Size:	187.8 KB
ID:	10086918
                        Click image for larger version

Name:	466.jpg
Views:	89
Size:	167.6 KB
ID:	10086921
                        Some places worked better than others but it was a learning experience!

                        Click image for larger version

Name:	468.jpg
Views:	89
Size:	182.3 KB
ID:	10086919
                        ​

                        1989 BMW ​325i - M54B30 Swap in Progress
                        IG : e30rossi
                        Montreal, Canada

                        Comment


                          Click image for larger version  Name:	471.jpg Views:	0 Size:	229.8 KB ID:	10086924
                          The day FINALLY arrived!

                          Click image for larger version  Name:	472.jpg Views:	0 Size:	243.3 KB ID:	10086923
                          Looking like glass!

                          Click image for larger version  Name:	474.jpg Views:	0 Size:	251.4 KB ID:	10086926
                          Super happy with how new and glossy this ended up looking!

                          Click image for larger version  Name:	475.jpg Views:	0 Size:	200.0 KB ID:	10086927
                          Now the engine bay looks too good, makes the rest of the car look dull !!

                          Click image for larger version

Name:	473.jpg
Views:	92
Size:	223.6 KB
ID:	10086925
                          ​

                          1989 BMW ​325i - M54B30 Swap in Progress
                          IG : e30rossi
                          Montreal, Canada

                          Comment


                            Click image for larger version

Name:	476.jpg
Views:	98
Size:	195.8 KB
ID:	10086929
                            Seeing this made the last 3 months of work all worth it! So stoked on how it looks

                            Click image for larger version

Name:	477.jpg
Views:	91
Size:	199.7 KB
ID:	10086931

                            Also painted the rad support, ready to go back on !

                            Click image for larger version

Name:	478.jpg
Views:	91
Size:	174.0 KB
ID:	10086930
                            Blower motor cover got a coat, going to blend in super well!

                            Click image for larger version

Name:	479.jpg
Views:	93
Size:	168.4 KB
ID:	10086932

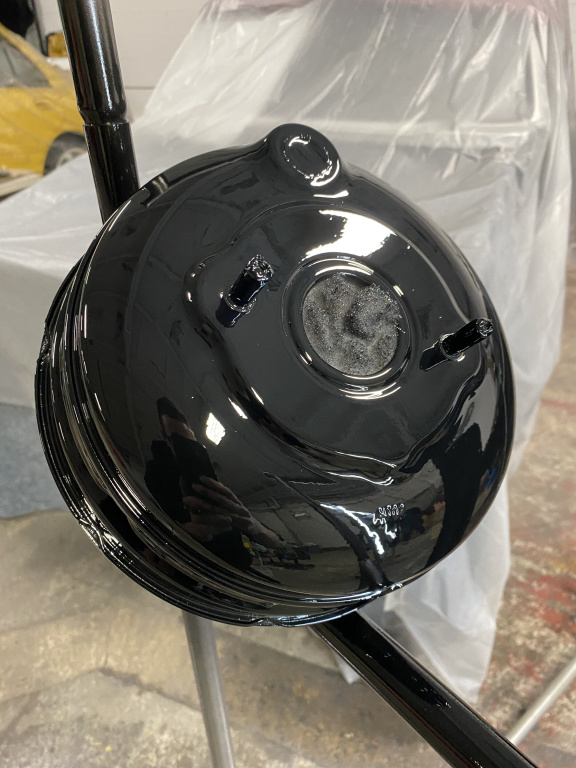

                            Last but not least, booster will look so much better colour match vs. the aluminum x3 finish
                            ​

                            1989 BMW ​325i - M54B30 Swap in Progress
                            IG : e30rossi
                            Montreal, Canada

                            Comment


                              Very nice very nice, now comes the easy bit
                              sigpic

                              (clicky on piccy to get to thread)

                              Comment


                                Nice job with the seam sealer. Came out looking great after paint!

                                Comment

                                Working...
                                X
