    #31

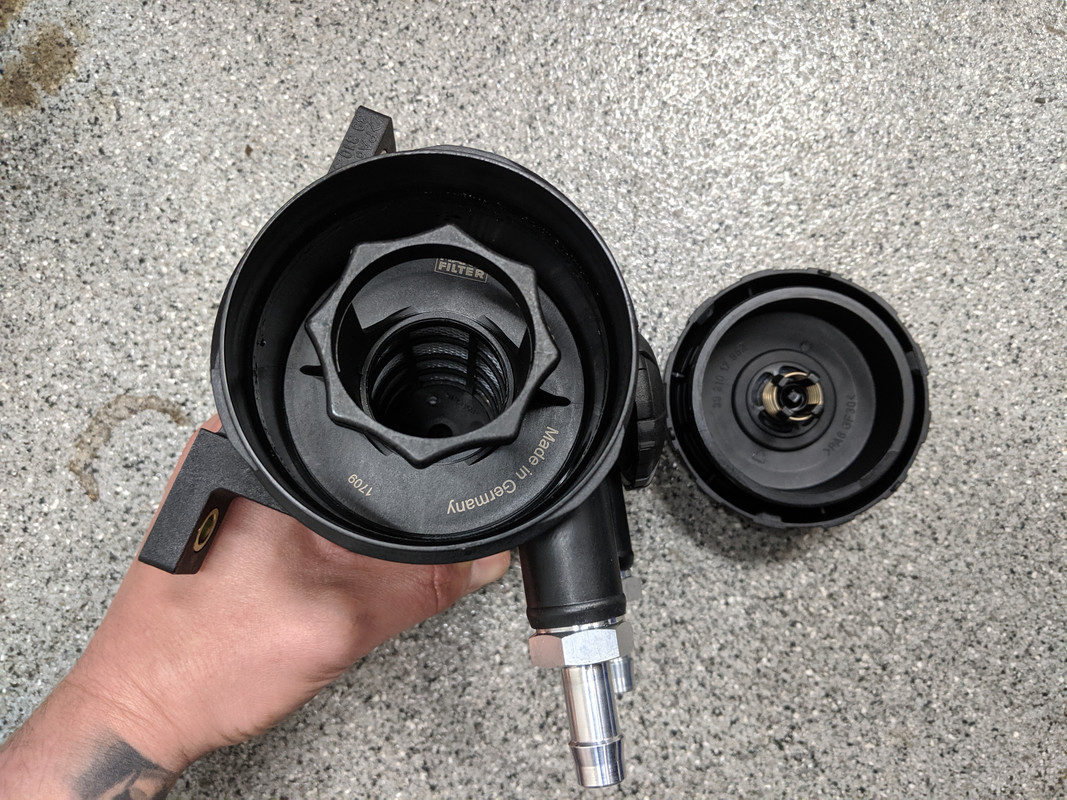

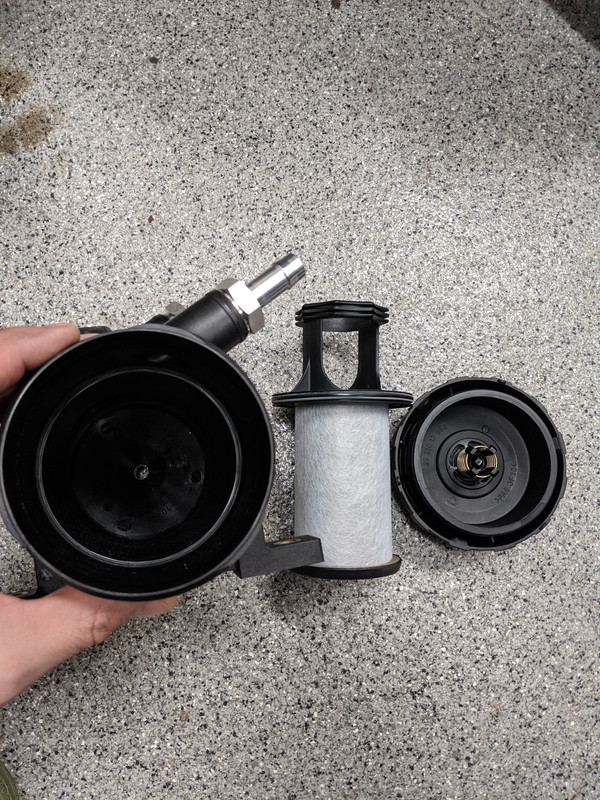

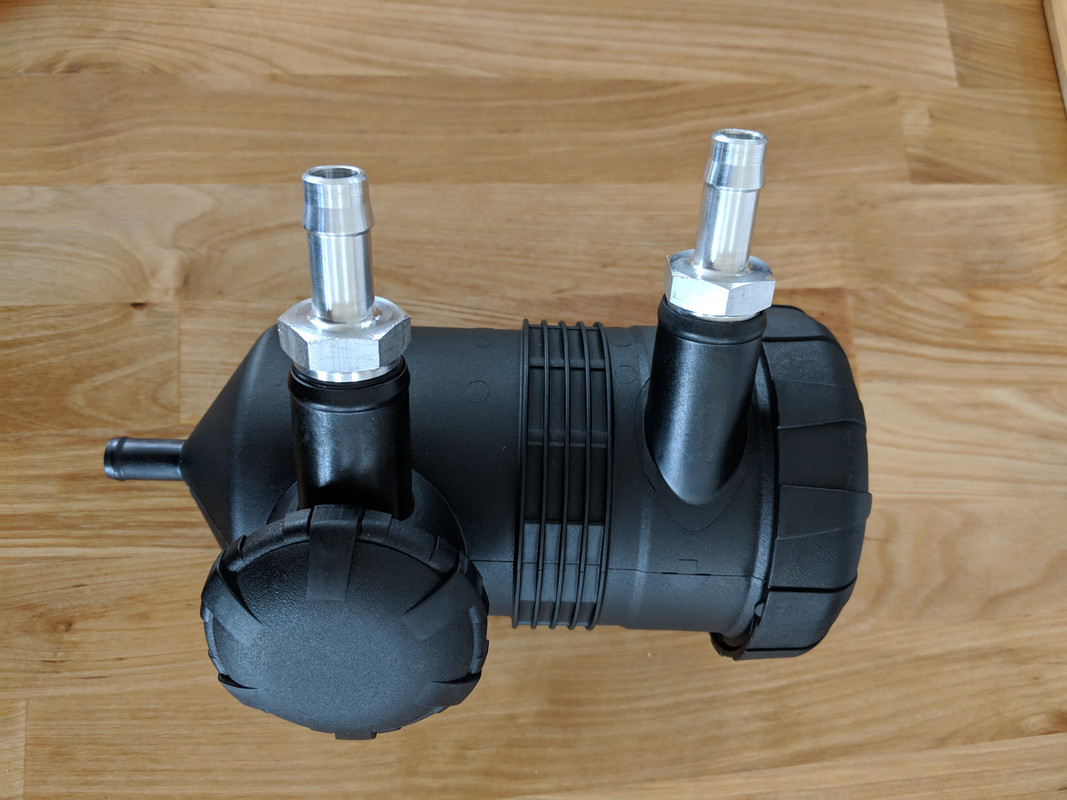

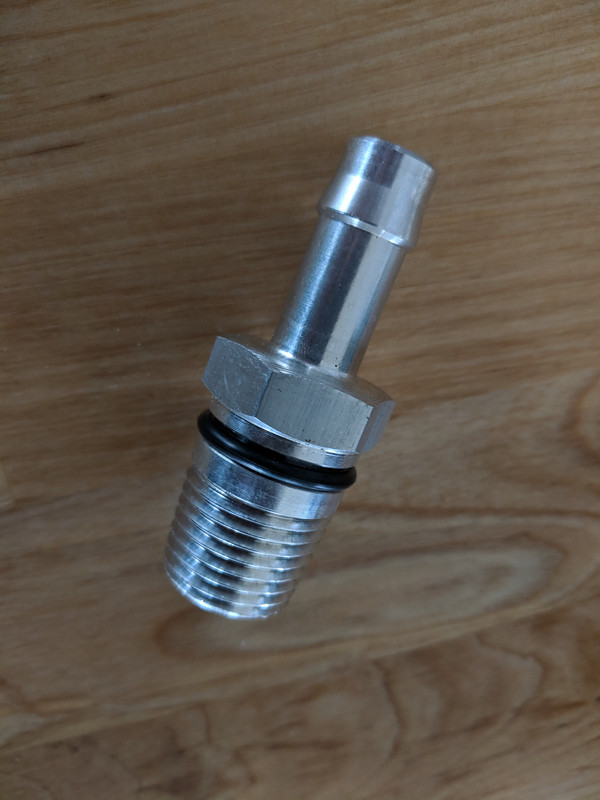

    I plan to run a PCV system on this motor. After searching around for a bit, it seems most of the aftermarket PCV filter/catch can systems aren't really setup to operate as a PCV should. I finally stumbled across the Mann Hummel ProVent 200. It's an OEM quality part with by-pass valve integrated into the cap, replaceable filter media, and a crank case pressure regulator valve. The one issue was that the inlet/outlet are huge (~1"). I ended up finding a company out of Australia that makes thread-in adapters with o-ring gaskets specifically for necking down the ports on this unit. They fit perfectly.

    Now I just need to pick a final spot and make a bracket. I plan to order a secondary catch can that I will route the bottom drain to just in case the amount of oil bypass is of any significant volume.





    Comment


      #32
      I've been traveling a lot for work, so progress is slow right now. Last time I worked on the car I got distracted and jumped on the front suspension and brakes.

      GC fabricated strut coilovers, fresh hubs with long studs,Massive 332x32 kit, Wilwood slotted rotors with Superlite calipers (1.75" pistons front and 1.25" pistons rear)





      Hopefully I'll get a weekend soon to make some more progress.

      Comment


        #33
        Originally posted by jeds View Post
        I plan to run a PCV system on this motor. After searching around for a bit, it seems most of the aftermarket PCV filter/catch can systems aren't really setup to operate as a PCV should. I finally stumbled across the Mann Hummel ProVent 200. It's an OEM quality part with by-pass valve integrated into the cap, replaceable filter media, and a crank case pressure regulator valve. The one issue was that the inlet/outlet are huge (~1"). I ended up finding a company out of Australia that makes thread-in adapters with o-ring gaskets specifically for necking down the ports on this unit. They fit perfectly.

        Now I just need to pick a final spot and make a bracket. I plan to order a secondary catch can that I will route the bottom drain to just in case the amount of oil bypass is of any significant volume.
        Ahh those crafty Australians, the provent 200 is a really good bit of kit. They are almost a none negotiable to fit in common rail diesels to mitigate carbon buildup.

        Looking forward to seeing more progress

        Comment


          #34
          Looks like your doing things right, keep it up. Clean ride man.


          1992 M tech 2 Convertible - S50 Swap
          1992 e34 Touring- Currently Building.. S50 Swap
          1995 e36 M3 Mugello Red - S50
          1991 325i Convertible Laguna Green (SOLD)
          1987 325i (SOLD);1992 M tech 2 Convertible (SOLD)
          1988 325i Convertible Alpine White (SOLD)
          1991
          Brilliantrot Convertible 80k Miles (SOLD)
          1992 325i Convertible Schwarz (SOLD)
          1992 318i Convertible Project-Finished (SOLD)

          Comment


            #35
            That oil separator is awesome. Nice find. My belief is all 24v swaps need some form of oil separator and that looks like a good option.



            Comment


              #36
              The Sikky kit came with a remote mount oil filter setup, but it felt and looked a little cheap. I ended up getting a Peterson mount with a 360 degree swivel base to replace it. It's mount it up under the front frame rail right behind the front valance.






              Next item was the fuel vapor vent canister. The unit is from II Much. It has -6 port for the line from the fuel tank, and a -6 bronze filter for the vent side. There happened to be a vertical bracket where the fuel pump relay use to live, so I made a few holes and bolted it on. You can also see the chase bays power steering reservoir mounted in the stock location.



              Comment


                #37
                Are you running those new accel ceramic booted wires? I picked a set of those up for my trans am, haven't put them on yet though.

                Your swap looks great, any reason you didn't mount the filter in a spot to keep it vertical?
                1984 325e m50nv/G260
                1991 325i Mortdecai the pickup project
                1991 Trans Am turboLSx/t56
                1984 Husqvarna Abomination

                Comment


                  #38
                  They are the ceramic booted wires. I'm a little annoyed with how sloppy the long angled boots make the wire routing, but I'll run them for now.

                  The filter mounting came down to packaging. I wanted it out of sight and in a place where I could easily route hoses to. I also need to allow room for the headers to be placed. It was the most convenient spot I could find.
                  Last edited by jeds; 05-28-2019, 07:12 PM.

                  Comment


                    #39
                    I've been traveling non-stop for work, so progress has been pretty much at a stand still. I took half of July off, so hopefully some more progress can be made.

                    I did get wheels and tires delivered and mounted. The Arc-8s cleared the brakes, but were almost touching the struts. I ended up with 8mm spacers in front. Everything looks like it should clear now...



                    Comment


                      #40
                      Looks good man. Cant wait to hear this thing fire up.
                      sigpic

                      https://www.r3vlimited.com/board/sho...d.php?t=420591 5.3 LSA build in progress :devil:

                      Comment


                        #41
                        Nice brakes!!

                        I love my Wildwoods.
                        Euro Delivery Thread///E30 Project Klaus

                        Comment


                          #42
                          Originally posted by Staszek View Post
                          Nice brakes!!

                          I love my Wildwoods.
                          Comments like these get me excited about the future ;>)
                          1991 318is
                          2004 330ci
                          2011 335d

                          Comment


                            #43
                            Good to hear positive feedback on the Wilwoods. I foresee much fussing with the manual brake setup to get everything playing nicely...

                            I started in on the car this weekend.

                            Modified the core support for radiator cap clearance and radiator overflow mounting. After I clearanced everything, I went back and put panel bond between the sections where spot welds were removed.



                            Installed the washer fluid reservoir. Its pretty diminutive, but it should get me by. I'll just have to keep up on topping it off.



                            Got the headers installed. In order to get them in, I had to balance the motor/trans assembly on a couple of jacks and pull out the motor mounts. This allowed me to rock everything side to side to get them in.




                            I also installed the secondary diff mount. This turned out to be more annoying than I had anticipated. The clearance between the Z3 diff cover and the spare tire well didn't allow for removal of one of the diff cover bolts. I had to drop the diff to do the install. There was also little-to-no room for drill bit access. Oh well ... it's in and ready to go.

                            Comment


                              #44
                              I feel your pain on the headers mine were a paint to get in
                              1989 325i LS Swap (Money Pit):https://www.r3vlimited.com/board/sho...d.php?t=244933
                              COTM Feb 2019: https://www.r3vlimited.com/board/sho...d.php?t=428404

                              Comment


                                #45
                                Looks like it’s coming along nicely, I’m going to steal the chasebay washer mounting location I’m ordering one for mine shortly
