89' 325is LS3 swap

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    #46

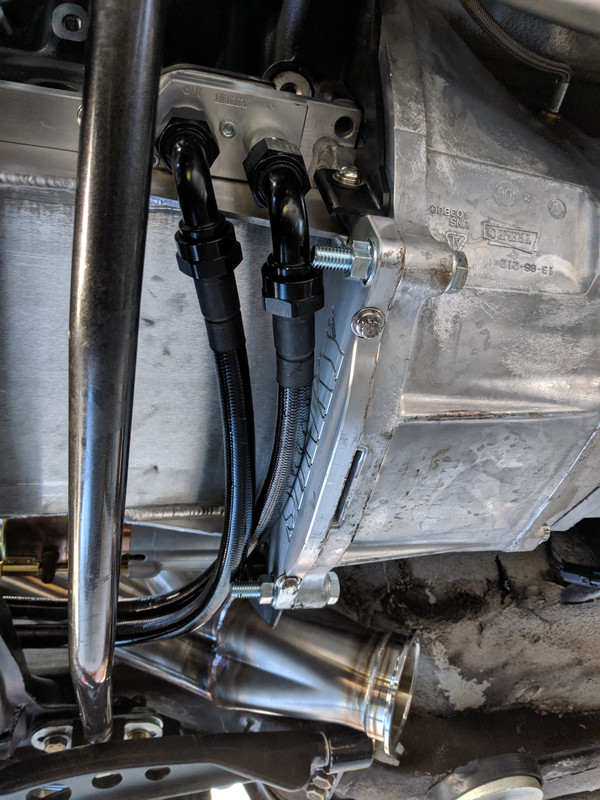

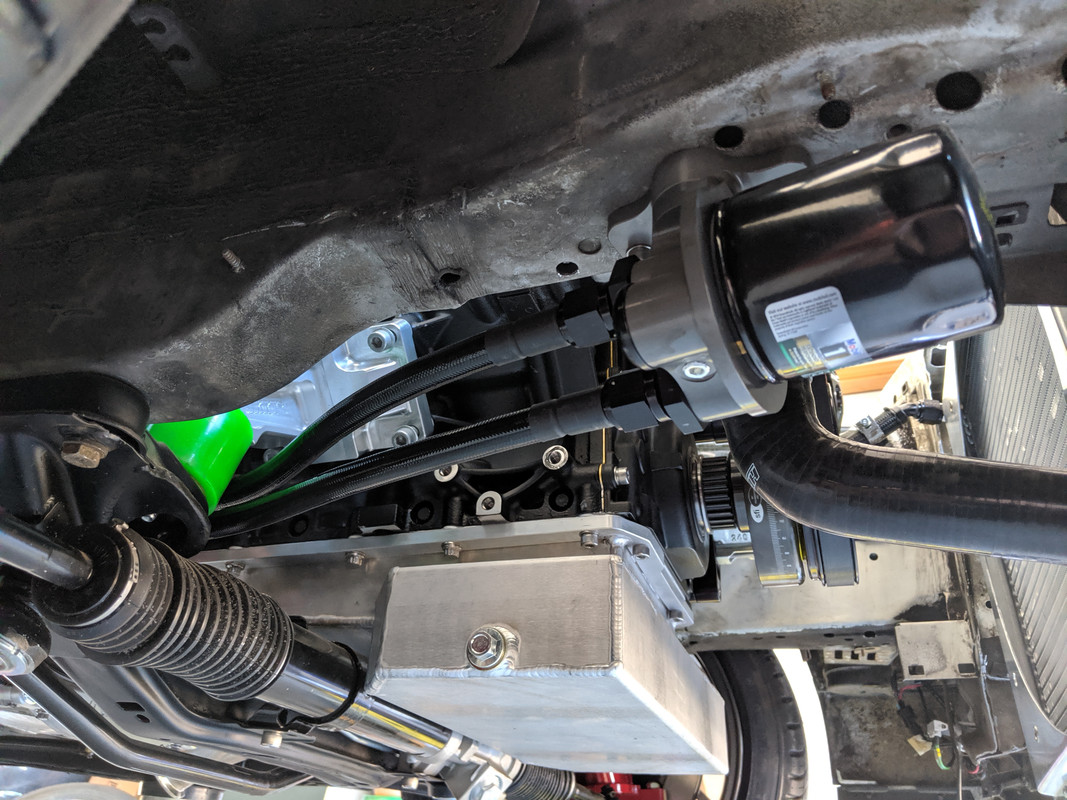

    • oil lines ran
    • driveshaft and diff spacers installed

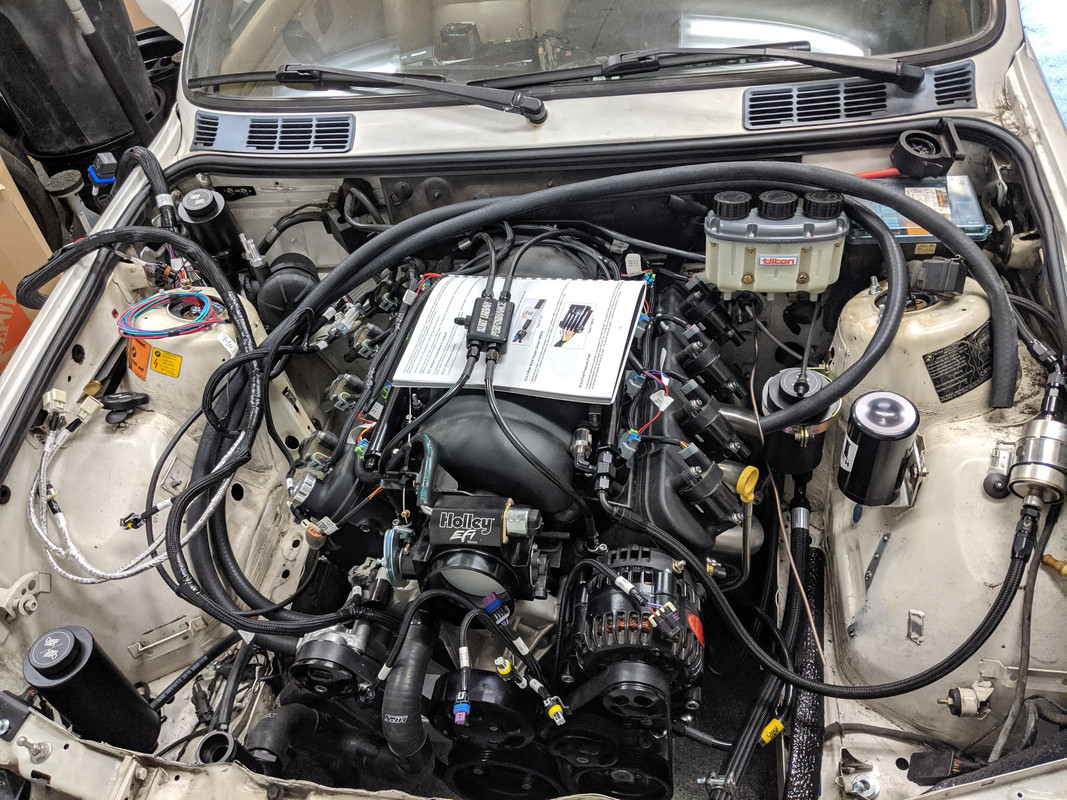

    • brake reservoir mounted
    • started trying to figure out engine harness routing
    • installed (and removed) heater hose connections at the firewall. I wasn't happy with the interference with the engine, so I'll have to redo them.
    • decided to ditch the braided lines. I started making NiCopp hard-lines for the master cylinder connections. The Mastercool flare tool makes it easy.


    Everything looks like a complete disaster, but hopefully things will start cleaning up soon.

















    Comment


      #47

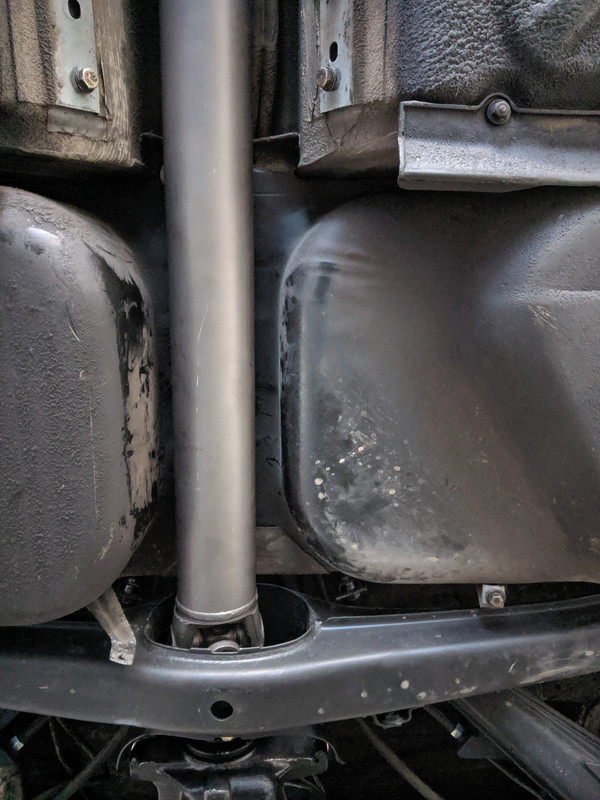

      is it just the photos or is that driveshaft not straight
      sigpic

      (clicky on piccy to get to thread)

      Comment


        #48
        That's how it is. The mounting flange on the diff is offset to the passenger side.

        Comment


          #49
          Is that how you are going to leave the steam port vent line thing?
          1989 325i LS Swap (Money Pit):https://www.r3vlimited.com/board/sho...d.php?t=244933
          COTM Feb 2019: https://www.r3vlimited.com/board/sho...d.php?t=428404

          Comment


            #50
            Pretty much...

            I still need to run a line from the junction block to the radiator fill neck port. It's not the prettiest thing...

            Comment


              #51
              This build is too clean to leave it like that. That is something I would expect in my build lol
              1989 325i LS Swap (Money Pit):https://www.r3vlimited.com/board/sho...d.php?t=244933
              COTM Feb 2019: https://www.r3vlimited.com/board/sho...d.php?t=428404

              Comment


                #52
                Haha.

                There aren't a lot of options. In order to function properly, it needs to be the highest point in the system. I could just not run it though...

                Comment


                  #53
                  You could run the under intake one. It isn't that essential of a system. Just make sure the motor is bled well
                  1989 325i LS Swap (Money Pit):https://www.r3vlimited.com/board/sho...d.php?t=244933
                  COTM Feb 2019: https://www.r3vlimited.com/board/sho...d.php?t=428404

                  Comment


                    #54
                    The under-intake version doesn't seem to work with the ls3 style intakes. Motion Race Works sells a side mount one that's marginally cleaner.

                    https://www.motionraceworks.com/prod...lastic-intakes

                    Comment


                      #55
                      I have a long term plan to mount the pcv breather. I'll be getting a license for Creo through work soon. The plan is to design a nice solid mounting bracket that I'll either print or have machined. In the interim, I made a quick and dirty mount to keep things moving.







                      Comment
