    Originally posted by BUDNUNTA View Post
    where did you get the head modded to suite Dual Vanos? i want to run a m52b28 in my e46 touring
    Modded at home with carbide burr
    RHD OBD2 M50b25 turbo build thread:
    http://www.r3vlimited.com/board/showthread.php?t=384800

    Comment


      Taking up the challenge from facebook, it's time to make a proper update to this.
      Progress is very slow, with another child just arriving in January i haven't had any real time to dedicate to the car to get it built. I had planned to have it ready to drop in over easter, but that might be a bit far-fetched now.

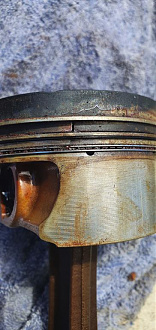

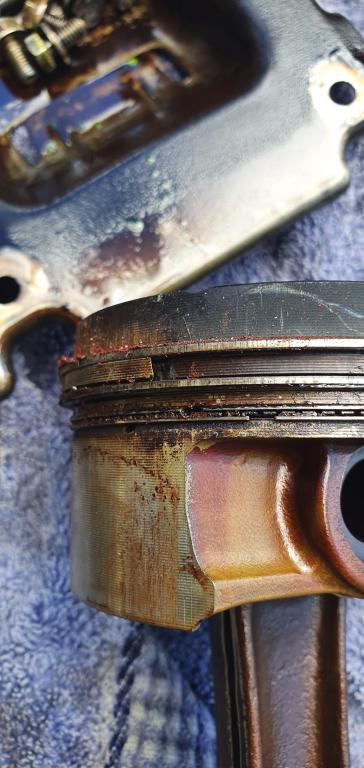

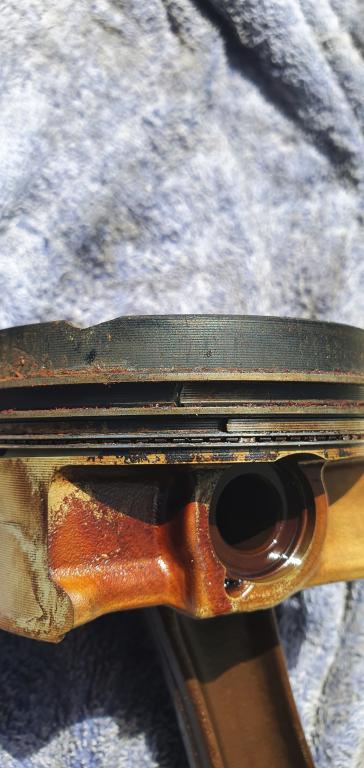

      So to start with, finally pulled the old motor to identify where it failed, and as suspected, it was ringlands. Note: 20+ psi on stock ring gaps is a no-go.
      Click image for larger version

Name:	20201229_151845.jpeg
Views:	563
Size:	50.6 KB
ID:	9980817 Click image for larger version

Name:	20201229_151720.jpeg
Views:	560
Size:	51.8 KB
ID:	9980818 Click image for larger version

Name:	20201229_151707.jpeg
Views:	555
Size:	48.3 KB
ID:	9980819

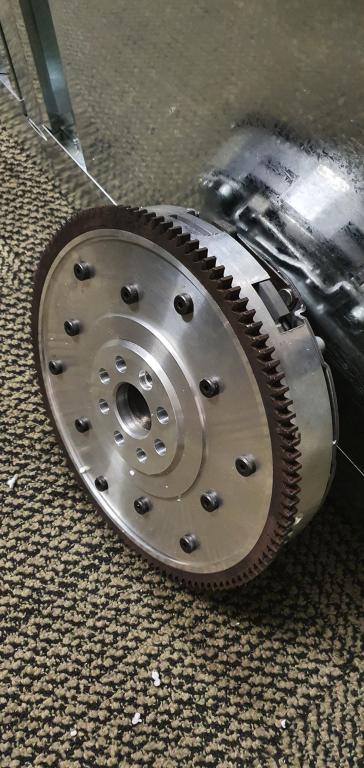

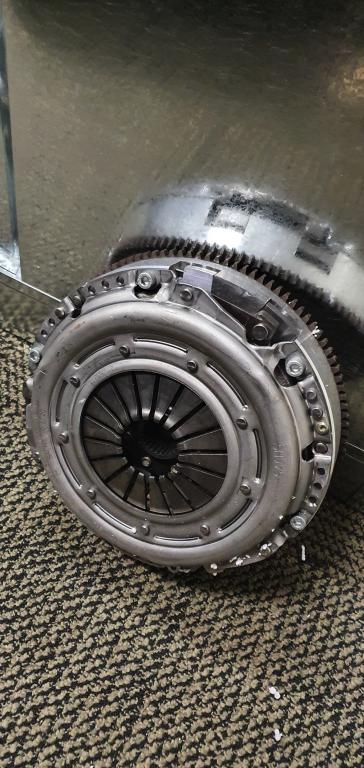

      Twin disk 1040nm setup for gs6-53bz arrived from adamat. This was a custom job that uses the m5x ring gear to allow using an m5x starter instead of the n54 starter.
      Click image for larger version

Name:	20200820_102354.jpeg
Views:	581
Size:	65.1 KB
ID:	9980815 Click image for larger version

Name:	20200820_102412.jpeg
Views:	561
Size:	64.3 KB
ID:	9980816

      RHD OBD2 M50b25 turbo build thread:
      http://www.r3vlimited.com/board/showthread.php?t=384800

      Comment

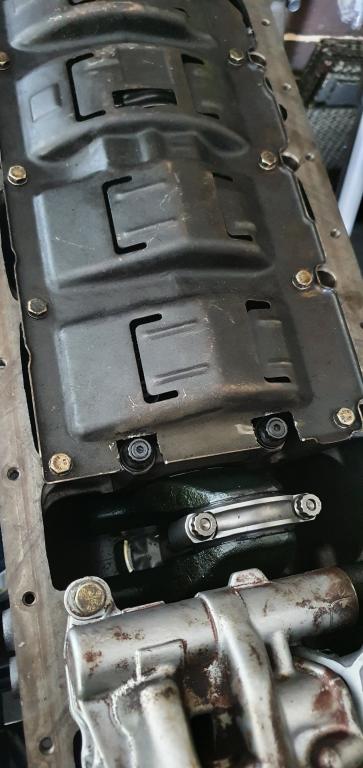

        When it came to mounting the windage tray, i could not get it bolted down. The arp main studs protrude higher than stock bolts so this required notching the windage tray.
        Click image for larger version

Name:	20201116_082828.jpg
Views:	483
Size:	44.6 KB
ID:	10028333 ​

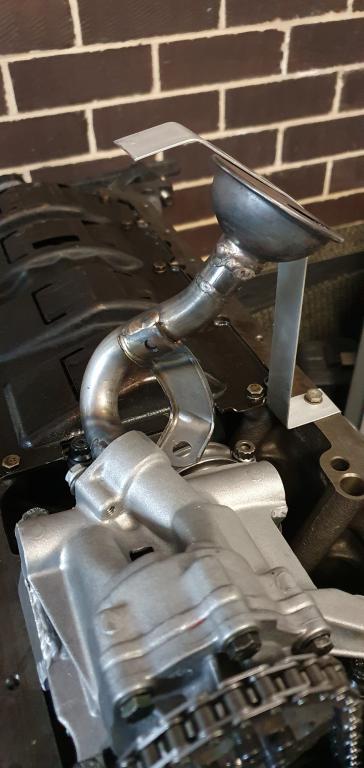

        Fitted an oil pump chain tensioner. This will complement the new crank sprocket and custom 7 bolt m54 oil pump modified to work on m50/m52 motors - this was a custom job from finland. Before removing the e34 pump and pickup, i made a jig to mark where the oil pickup was so i could get the new setup in the same location. I used a 728i front oil pickup which needed to be shortened slightly and re-welded.
        Click image for larger version

Name:	20210202_220212.jpg
Views:	432
Size:	41.6 KB
ID:	10028334

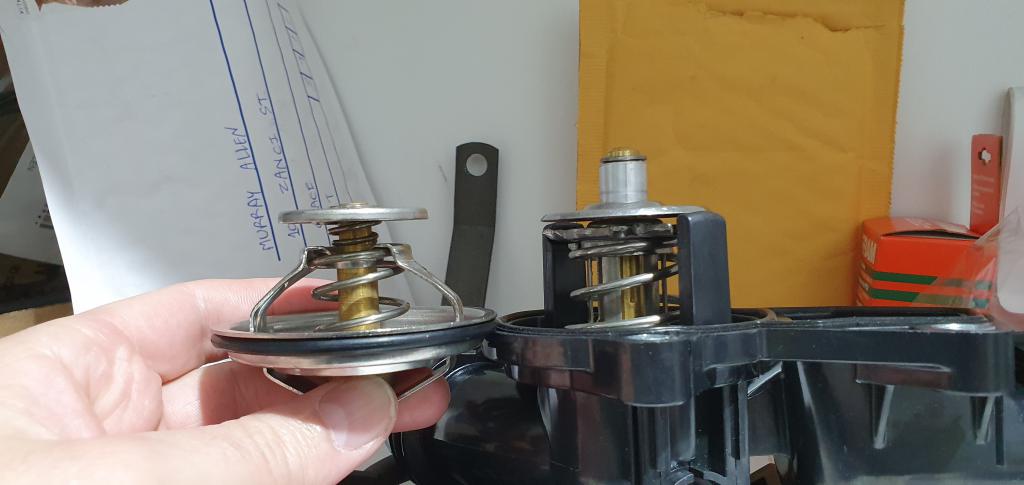

        Modified an m54 thermostat to work with m50 head. basically involves removing the spring from under the bypass plate and creating a spacer to hold the bypass plate down under the circlip. This gets the bypass plate to the same position as a stock m52 thermostat. Without doing this, the bypass port would be constantly blocked. Taking the gasket out of the m54 thermostat and placing on the m50 head seems to indicate it will seal.
        Click image for larger version

Name:	20210630_211050.jpg
Views:	428
Size:	47.2 KB
ID:	10028335 ​
        ​

        Difference in gearbox length between gs6-37dz and gs6-53bz. The e36 325i driveshaft will compress enough to make up for the difference. I had the front half of a 135i driveshaft (106mm guibo) grafted onto the stock e36 325i driveshaft. After the fact i learned that the output flange from an 420g gearbox will apparently bolt up to a gs6-53bz which would have negated needing a custom driveshaft.
        ​

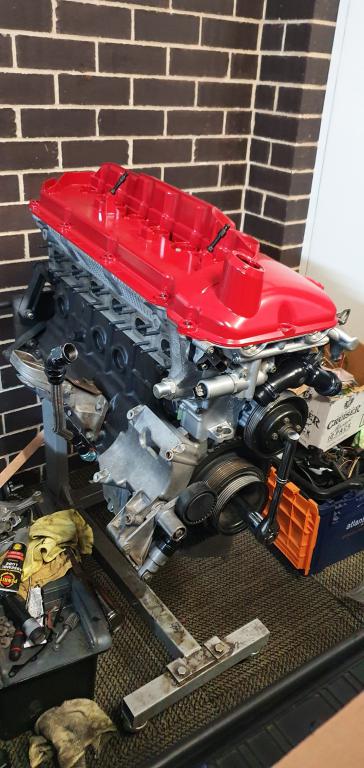

        Cams in and timed. Dual Vanos unit mounted and m56 valve cover painted in zinnoberrot to match the body paint.
        ​ Click image for larger version

Name:	20210312_223540.jpg
Views:	442
Size:	60.8 KB
ID:	10028336

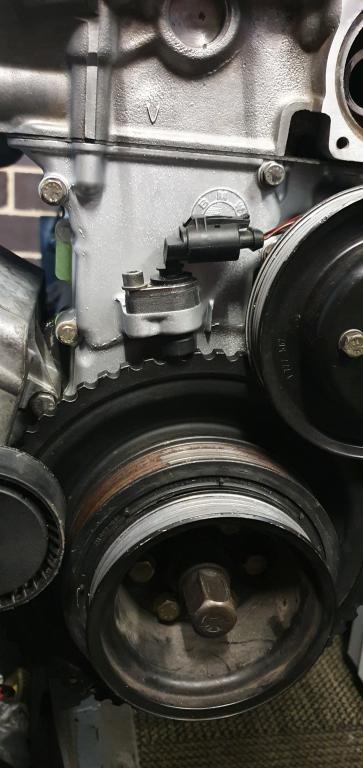

        Designed and 3D printed (CF nylon) a spacer to allow the use of the MS43 crank sensor on the front timing cover as the m50 block has no provisions for the rear mounted crank sensor. Made an extension harness as the stock wiring cant reach to the front timing cover. Anyone else that needs to do this, the connectors needed are Kostal 09442311 (22140492050).
        Click image for larger version

Name:	20210112_130030.jpg
Views:	438
Size:	45.1 KB
ID:	10028337 ​
        Last edited by ba114; 08-18-2021, 08:37 PM.
        RHD OBD2 M50b25 turbo build thread:
        http://www.r3vlimited.com/board/showthread.php?t=384800

        Comment


          Flywheel/Clutch setup looks great!
          Originally posted by priapism
          My girl don't know shit, but she bakes a mean cupcake.
          Originally posted by shameson
          Usually it's best not to know how much money you have into your e30

          Comment

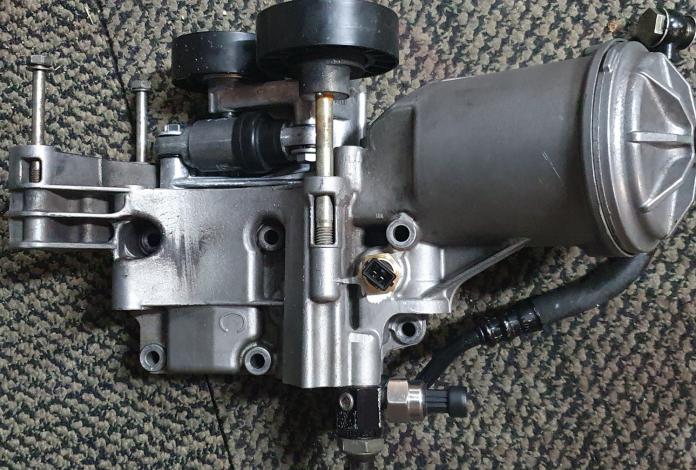

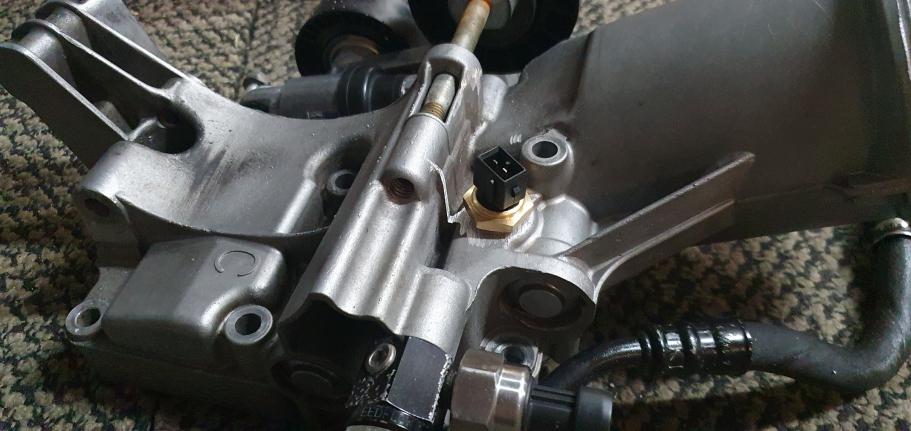

            Drilled and tapped m50 oil filter housing to fit ms43 oil temp sensor
            Attached Files
            RHD OBD2 M50b25 turbo build thread:
            http://www.r3vlimited.com/board/showthread.php?t=384800

            Comment

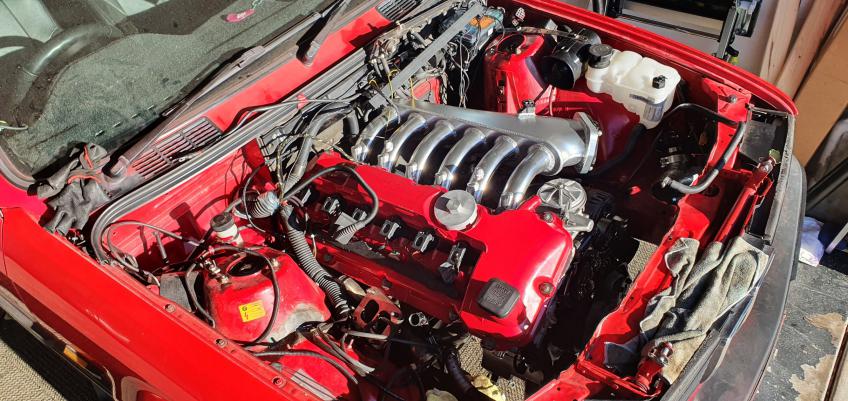

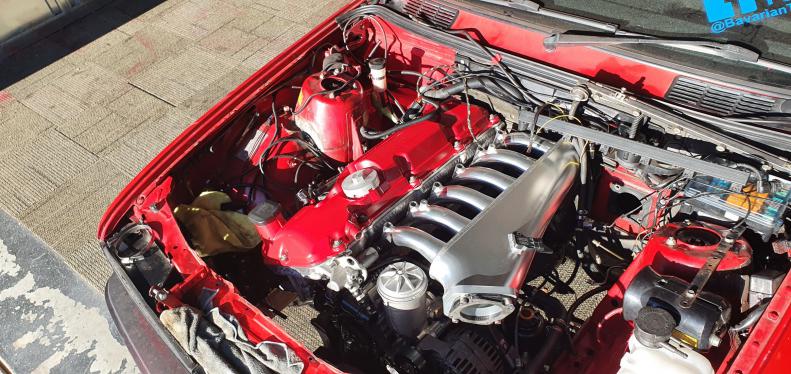

              She's in!
              Click image for larger version

Name:	20210404_161320.jpg
Views:	543
Size:	91.0 KB
ID:	9993025
              Click image for larger version

Name:	20210404_161334.jpg
Views:	544
Size:	83.5 KB
ID:	9993026
              RHD OBD2 M50b25 turbo build thread:
              http://www.r3vlimited.com/board/showthread.php?t=384800

              Comment


                Fitted up the e90 booster and master. Used a T-piece for splitting the front brakes and the grabbed a brake line from an e60 that has the correct m12x1 fitting on one end of the line and m10x1 on the other end. It's 190mm long and the perfect length for what I wanted to do. I also got a reservoir for the e60 as well which fits up and allows you to put the push rod through the master and reservoir to secure it.

                Last edited by ba114; 06-24-2021, 05:51 AM.
                RHD OBD2 M50b25 turbo build thread:
                http://www.r3vlimited.com/board/showthread.php?t=384800

                Comment


                  Needed to tidy up the shock towers. Years of abuse saw lots of damaged paint so was time to give it a fresh coat....yes I should have done this before putting the new engine in... Anyway, it's done now, looks OK. Fitted the turbo to wrap up for the night. Sent from my SM-G973F using Tapatalk
                  RHD OBD2 M50b25 turbo build thread:
                  http://www.r3vlimited.com/board/showthread.php?t=384800

                  Comment


                    Been tinkering with the 3D printer in the evenings and modelled a centre air vent to make a housing for a palm phone. It will also house a wireless charger to keep the phone charged. The phone will be connected to my jb4 for gauges, logging and map switching. Sent from my SM-G973F using Tapatalk
                    RHD OBD2 M50b25 turbo build thread:
                    http://www.r3vlimited.com/board/showthread.php?t=384800

                    Comment


                      Looks good, keep it up!
                      Originally posted by priapism
                      My girl don't know shit, but she bakes a mean cupcake.
                      Originally posted by shameson
                      Usually it's best not to know how much money you have into your e30

                      Comment


                        Been thinking about brakes more and more lately as i now have the 25/22 e90 master instead of the 22.2/17.46mm stock master, and decided its time to invest in a bbk.
                        I've been looking at the IE 310mm wilwood bbk kit. Seems like a good package that will fit my 16" esm002r.

                        Unfortunately there are two issues:
                        1. The calipers supplied are the 120-13434 and 120-13434 which has the 1.62, 1.12, 1.12 pistons in it; 4.04" piston area when paired with the 310mm front rotor, and running stock rear brakes setup, the front bias would be a huge 78% which is not acceptable. To fix this needs more fixes:
                          • Replace the calipers with 120-13438 and 120-13439 which have 1.38, 1.0, 1.0 pistons; 3.08" piston areas.
                          • Replace rear brakes with 36mm bore Z3 calipers which are direct bolt on to e30.
                          • Re-drill 10mm e36 325i 280mm rotors to 4x100mm and have a ring machined to centre on the hub, or i engage a rotor manufacture for a custom spec item (im exploring this further right now).
                          • These changes combined will bring the bias back to 67/33
                        2. Shipping from USA to Australia is ridiculously expensive. IE will sell me the kit minus rotors to try save on shipping costs...but we'll see what the quote comes in at.

                        The other issue i'm not clear on, is my stock master DEFINITELY is stamped 22/17. All my research suggests that the original F/R bias is around 63/37 yet my calculations are returning 57.5/42.5:


                        Can anyone explain why this is and should i be concerned by the fairly significant difference? If so, i can switch to a e46 325i caliper which would make it 62/38.

                        RHD OBD2 M50b25 turbo build thread:
                        http://www.r3vlimited.com/board/showthread.php?t=384800

                        Comment


                          Have you factored in the pressure drop in the rear lines from the bias valve?

                          Some info here but a bit muddy to sort through
                          I’m going to try to write a post which will explain brake bias. Well, at least it will try to. I’ve got some book-learning under my belt, but I’ve never been anywhere near the design side of brake systems. There’s 4 elements that contribute to our brake bias. The brake bias valve. The curve of front brake hydraulic pressure to rear has a “knee” at about 355psi. See pic below. The knee is caused by the bias valve. At pressures below 355psi, both front and rear slaves get the same pressure. Bu...


                          I am going to do this at some point soon and I think I would try to spec everything to eliminate the stock bias valve, or use an aftermarket one if necessary to hit whatever bias range.
                          Originally posted by priapism
                          My girl don't know shit, but she bakes a mean cupcake.
                          Originally posted by shameson
                          Usually it's best not to know how much money you have into your e30

                          Comment

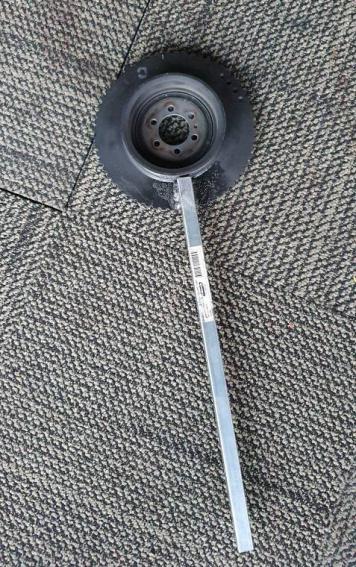

                            Got a new mig and decided it was to put it to good use. Fabricated a new gearbox crossmember for the gs6-53bz. Still running the e28 mounts with aluminium cups. Also made a tool for locking the crank so I could tighten the crank bolt. It looks ugly, but theres good penetration and the splatter is actually clear coat I sprayed while still hot.
                            Click image for larger version

Name:	image_161136.jpg
Views:	414
Size:	83.3 KB
ID:	10022000
                            Click image for larger version

Name:	image_161135.jpg
Views:	436
Size:	84.6 KB
ID:	10021999
                            Click image for larger version

Name:	image_161137.jpg
Views:	417
Size:	78.6 KB
ID:	10022001
                            Last edited by ba114; 06-24-2021, 05:49 AM.
                            RHD OBD2 M50b25 turbo build thread:
                            http://www.r3vlimited.com/board/showthread.php?t=384800

                            Comment


                              Water feed for turbo


                              Hardline for turbo oil return


                              Radiator mounted, pipework attached
                              RHD OBD2 M50b25 turbo build thread:
                              http://www.r3vlimited.com/board/showthread.php?t=384800

                              Comment


                                Fitted a HVAC panel from a LHD e30 so the radio would be moved to the left side. It needed a few mods, doesn't fit perfectly, but pretty close.


                                This was done to provide more visibility, and enable the fold out screen to NOT hit the indicator stalk. Why do i want more visibility? for the JB4 mobile app of course


                                Those of you with a keen eye will notice the 2nd image has a different headunit. I had to return the first one because of a horrendously loud white noise issue that was persistent unless you muted the sound.
