    under side of the car was power washed in preparation for some fresh paint. Not a fun time, wouldn't recommend. I decided to paint over the OEM undercoating but found out the hard way some of the aftermarket stuff doesn't react well with whats on our cars. Both the Eastwood brand and Hud Bright didn't want to cure. I had to go over the entire car with SEM trim black in order to seal everything. If i had to guess its something to do with the rubberized compounds of them. Everything worked out well in the end, just a lot of extra work.


    At this point everything had been removed from the underside.


    Click image for larger version  Name:	49362871127_1fe6c00541_z.jpg Views:	25 Size:	63.1 KB ID:	9901518


    Click image for larger version  Name:	49362237588_b59513e9bf_z.jpg Views:	24 Size:	116.5 KB ID:	9901519



    Click image for larger version

Name:	49456298153_c355b6356a_c.jpg
Views:	590
Size:	64.1 KB
ID:	9901943

    Click image for larger version

Name:	49457004102_73d3fc9422_c.jpg
Views:	579
Size:	63.0 KB
ID:	9901944
    Last edited by 968Reckless; 01-28-2020, 02:38 PM.
    /// MTech Belts ///


    S52 BUILD

    M3 VERT BUILD

    Comment


      #17
      Rear sub-frame was complete stripped down, painted and rebuilt with new parts. Went with street quality bushing to keep the ride smooth, POR15'd the diff case and powder coated the cover. New sensors, hardware and gaskets throughout.


      Ended up going with a 3.25lsd out of an e28. Had to swap the cover and output flanges.

      Click image for larger version  Name:	49362659211_32db85c64a_z.jpg Views:	0 Size:	107.2 KB ID:	9901528

      Click image for larger version  Name:	49362911037_239ce03afe_z.jpg Views:	0 Size:	85.5 KB ID:	9901529


      Click image for larger version  Name:	49362913597_253ff7ecf5_z.jpg Views:	0 Size:	80.3 KB ID:	9901530




      Not pictured but i went with GKN Drivetech shafts.




      Click image for larger version  Name:	49362658206_f403fa0520_z.jpg Views:	0 Size:	83.0 KB ID:	9901531


      Click image for larger version  Name:	49362870652_a7a717da44_z.jpg Views:	0 Size:	89.2 KB ID:	9901532

      Last edited by 968Reckless; 01-27-2020, 08:57 AM.
      /// MTech Belts ///


      S52 BUILD

      M3 VERT BUILD

      Comment


        #18
        Gas tank was replaced with an aftermarket unit i bought on eBay. Happy with the quality, fit as it should but it doesn't have a drain. Vape tank was also refreshed with new lines and fittings. Everything was scrubbed clean and painted. Will most likely be chopping up the filler neck to account for the wider body, still brainstorming on this....


        Click image for larger version  Name:	49362703046_4898982c8e_z.jpg Views:	0 Size:	93.7 KB ID:	9901535

        Click image for larger version

Name:	49595679263_ceb2746c08_z.jpg
Views:	423
Size:	94.9 KB
ID:	9908526


        Every line in the car was basically replaced. You can see how much of this dry rots after 30 years.


        Click image for larger version  Name:	49450308756_e570484ece_z.jpg Views:	0 Size:	88.5 KB ID:	9901534


        Click image for larger version  Name:	49455313046_f08ab4a873.jpg Views:	199 Size:	42.2 KB ID:	9901851
        Last edited by 968Reckless; 02-28-2020, 08:54 AM.
        /// MTech Belts ///


        S52 BUILD

        M3 VERT BUILD

        Comment


          #19
          Over all the car was in good condition. It was clearly been in a rear accident as you can still see damage in the trunk but it drove straight. I had to cut out a few small rust holes in the floor but that was about it besides some surface rust. Any areas that i removed rust were covered with POR15, love that stuff.


          Click image for larger version  Name:	49362707651_dd30a38c3f.jpg Views:	0 Size:	52.8 KB ID:	9901853


          Covered a majority of the trunk with 50 mil sound deadener so i used a few extra pieces for under the front seats. Might do more in the cabin and doors but not sure yet. At this time i also ran all new speaker wire, RCA cables and relocated the battery to the trunk. I read the OEM battery cable needed to be extended a few inches but that wasn't the case for me, we'll see if that changes after the rear bench is installed.
          Last edited by 968Reckless; 01-28-2020, 08:52 AM.
          /// MTech Belts ///


          S52 BUILD

          M3 VERT BUILD

          Comment


            #20
            Awesome project, sub'd

            Comment


              #21
              Originally posted by CorvallisBMW View Post
              Awesome project, sub'd
              thanks! lot to come, lot of pics to go though lol
              /// MTech Belts ///


              S52 BUILD

              M3 VERT BUILD

              Comment


                #22

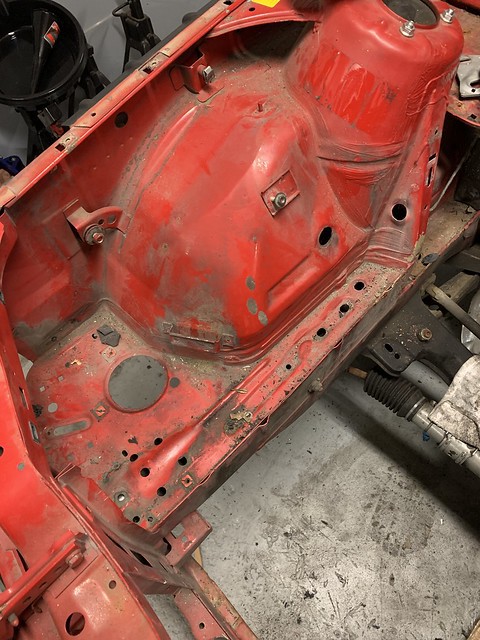

                At this point i started to tackle the engine bay. Shaved off basically everything, ABS was removed and the expansion tank went to the battery tray. Wire harness was pulled back and folded away. Cardboard cutouts were made to get an idea for the plates i need to cut, surprisingly it was pretty easy and the final product was made. I also cut a few circle pieces to fill the holes on both sides.


                Click image for larger version  Name:	49362662366_206481e547_z.jpg Views:	0 Size:	108.6 KB ID:	9901951

                seam sealer was ground out....what a pain


                Click image for larger version  Name:	49362237653_3a5b969acf_z.jpg Views:	0 Size:	113.3 KB ID:	9901952


                plates tacked into place, weldable primer was used on the bare spots and underside.


                Click image for larger version  Name:	49362197738_f64b6d2b35_z.jpg Views:	0 Size:	94.5 KB ID:	9901953


                Click image for larger version  Name:	49362235513_b2a9c89c51_z.jpg Views:	0 Size:	108.7 KB ID:	9901954

                /// MTech Belts ///


                S52 BUILD

                M3 VERT BUILD

                Comment


                  #23
                  Awesome work !
                  you made my day by posting a picture with the oem brand new fuel line cover !
                  i was trying to find the part number for this pièces for eternity hahaha !

                  keep on the good work !

                  Comment


                    #24
                    Originally posted by Iloveboost View Post
                    Awesome work !
                    you made my day by posting a picture with the oem brand new fuel line cover !
                    i was trying to find the part number for this pièces for eternity hahaha !

                    keep on the good work !
                    LOL very expensive part for what it is.
                    /// MTech Belts ///


                    S52 BUILD

                    M3 VERT BUILD

                    Comment


                      #25
                      Filler was the next step.


                      Click image for larger version

Name:	49362235728_c67b33df09_z.jpg
Views:	575
Size:	88.3 KB
ID:	9902094



                      Click image for larger version

Name:	49362916207_8c301e4a27_z.jpg
Views:	558
Size:	106.6 KB
ID:	9902095


                      Click image for larger version

Name:	49362656226_0424dfcba8_z.jpg
Views:	548
Size:	104.6 KB
ID:	9902096

                      /// MTech Belts ///


                      S52 BUILD

                      M3 VERT BUILD

                      Comment


                        #26
                        While the engine bay work was being done a buddy of mine worked on the rear quarters. Overall I'd say for the body work i have around 30 hours into the bay and probably 15 into the quarters.


                        Click image for larger version  Name:	49362915947_8d2ed599a9_z.jpg Views:	72 Size:	79.3 KB ID:	9902104


                        I know in the past people have welded strips into the doors but it would still require filler so i didn't see the point. Drivers door had also been hit so after the dents were popped out it required a little filler on the lower sections.


                        Click image for larger version  Name:	49362236388_e9149e4792_z.jpg Views:	70 Size:	59.5 KB ID:	9902106



                        Click image for larger version  Name:	49362864662_fd8271184f_z.jpg Views:	70 Size:	72.8 KB ID:	9902105


                        close to done.

                        Click image for larger version  Name:	49362241623_7b19f03237_z.jpg Views:	74 Size:	45.6 KB ID:	9902107

                        Last edited by 968Reckless; 02-05-2020, 02:03 PM.
                        /// MTech Belts ///


                        S52 BUILD

                        M3 VERT BUILD

                        Comment


                          #27
                          wow, great work!

                          Comment


                            #28
                            Body work continued...


                            Click image for larger version

Name:	49362708716_7cc4d85ae4_z.jpg
Views:	527
Size:	66.7 KB
ID:	9903737


                            Click image for larger version

Name:	49362194723_8d85e4b690_z.jpg
Views:	491
Size:	104.7 KB
ID:	9903738

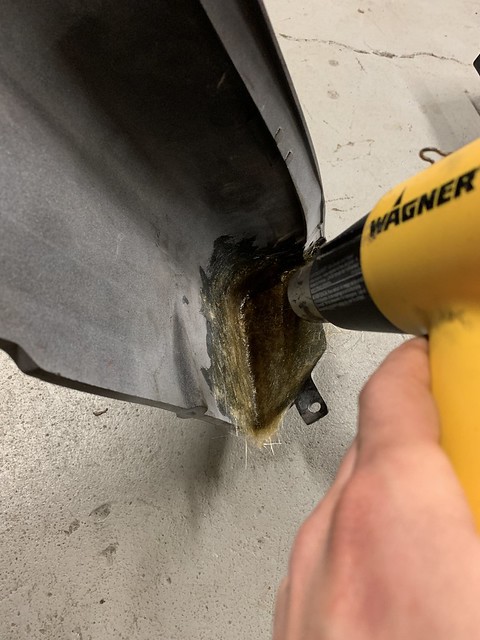

                            friend of mine broke the driver side skirt so a little glass repair was needed.

                            Click image for larger version

Name:	49450142601_e2a64f87ab_z.jpg
Views:	470
Size:	74.4 KB
ID:	9903739

                            /// MTech Belts ///


                            S52 BUILD

                            M3 VERT BUILD

                            Comment


                              #29

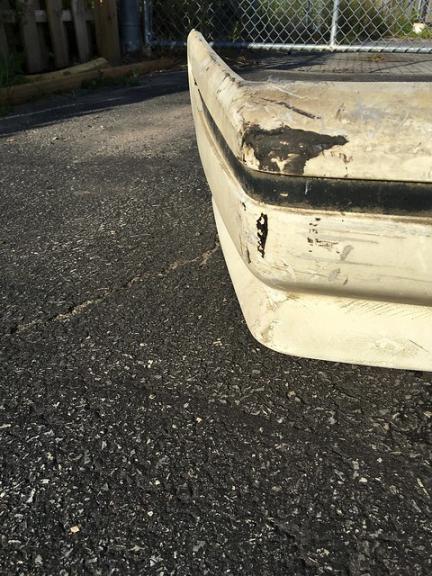

                              Was lucky enough to get the rear bumper from a pick n pull for dirt cheap but it did require a ton of work. Had about 20 layers of paint, deep scratches and some kind of tar on it. Most of the ssanding done by hand due to the angles. Also decided to fill the side markers to match my euro front bumper. Applied a thin fiberglass layer from the backside and filled it from the front after it was dry.


                              Click image for larger version  Name:	49362197748_361dbb4b09_z.jpg Views:	0 Size:	61.3 KB ID:	9903742

                              Click image for larger version  Name:	49362698411_4bb3c1abf0_z.jpg Views:	0 Size:	62.3 KB ID:	9903743

                              Click image for larger version  Name:	49362243808_160693246b_z.jpg Views:	0 Size:	66.1 KB ID:	9903744


                              Click image for larger version

Name:	49521839186_e753582c13_z.jpg
Views:	439
Size:	53.2 KB
ID:	9904994
                              Last edited by 968Reckless; 02-11-2020, 10:37 AM.
                              /// MTech Belts ///


                              S52 BUILD

                              M3 VERT BUILD

                              Comment


                                #30
                                Picked up a spare front subframe from the classifieds so i could leave mine in the car. Ben @ Bayside Fabrication modified the frame and oil pan. Only good things to say about Ben, good product, good communication and fast turn around time. This was the first modification he did for a convertible so we had a bit of a learning curve, make sure you let him know this when ordering. I ended up modifying the sway bar mounts to fit the longer frame rails of the convertible. Engine isn't in yet but i think everything should be normal moving forward.

                                Bayside link


                                https://www.r3vlimited.com/board/for...dification-2-0



                                Click image for larger version  Name:	49362870857_52102a34c7_z.jpg Views:	0 Size:	61.9 KB ID:	9903751
