PUCH build: Cafe racer chapter!

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • F34R
    replied
    Grind, smooth, fill with weld...repeat till sexy!


    ;)


    Little bit left to smooth here. I could not find my carbide bit for the die grinder.


    This is so sick! I love building shit like this.


    I now have to wait on the forks to get in to place the tank with the handle bars. Other than that I have just a swing arm to make. Waiting on someone to sell the Puch Magnum swing arm, it is perfect and just needs to be extended 6" for the mean look.

    Leave a comment:


  • F34R
    replied
    Originally posted by z6ne View Post
    Nice. What color are you going to paint it?
    General 5 stars are my favorite. Maybe sell me the rest of the bike?
    check this one out, the swing arm is ridiculous

    Everyone seems to go with a matte black finish. I am leaning more to a white with black accents. Kinda like the teal and black combo of the one you posted.

    Here is the build to that picture you posted. I bookmarked it because of the swing arm. I am going to same route but less extreme.
    http://www.mopedarmy.com/forums/read.php?1,2984576

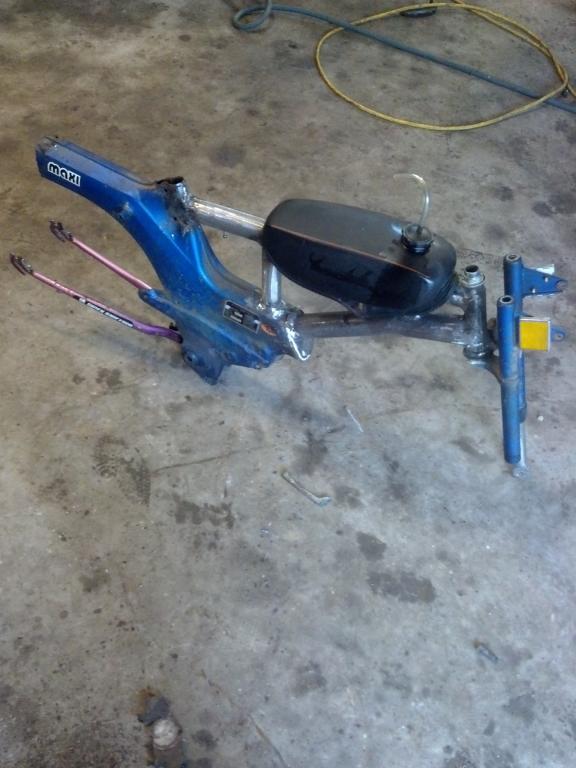

    Today started great! Got a rare general 5 star top mount tank. Looks so awesome! Just waiting on my new EBR forks to place the tank with the handle bars.
    Attached Files
    Last edited by F34R; 06-08-2013, 08:53 AM.

    Leave a comment:


  • z6ne
    replied
    Nice. What color are you going to paint it?
    General 5 stars are my favorite. Maybe sell me the rest of the bike?
    check this one out, the swing arm is ridiculous


    http://garage.1977mopeds.com/build/752

    Leave a comment:


  • F34R
    replied
    It was raining today...got some stuff done ;)

    How it looked with new tires and chrome sanded and done in black.


    Completely bare frame!


    Cut the top of the tank to allow room to fit the new top tube.


    Ground the factory seam smooth for the rear of the tube.


    Ground the ends to match the frame for a tight fit.


    Rear


    Front


    Bracing the top tube to the Puch, keeps the fork tube in place.(Don't mind the ugly tac welds. I closed my eyes haha)


    More tacs and removed the tank.


    Cut out a plate cover for the hole from the tank. Then made a bottom tube and bent it to add room. Also added another bracing towards the front.
    **NOTE!! I do not like the swing arm, I will be picking up some thin rectangle tubing and making my own. I just tac'd it there to get an idea. It adds 4" from stock.


    Have to finish the rear fender and make the swing arm. Other than that I am 75% finished with the build. Ordered EBR forks since the stock ones fell apart haha! Hoping to picking up a General 5 star tank. My buddy said he wants to sell the whole bike. Might get it for a good price!

    Leave a comment:


  • z6ne
    replied
    inspiration perchance

    http://garage.1977mopeds.com/

    Leave a comment:


  • Nick_S
    replied
    This is awesome.

    Leave a comment:


  • z6ne
    replied
    well hopefully you build a rad one, looking forward to more progress.

    Leave a comment:


  • F34R
    replied
    Right now I am jumping from a hard tail. Or retaining the stock design and making my own swing arm. Both paths are custom, it is just too soon for me to really know what setup I want. I am leaning more at the custom swing arm and retain the springs for comfort.

    Leave a comment:


  • z6ne
    replied
    oh i see you got the party never clicked it earlier. Love how treats writes all their product descriptions

    Leave a comment:


  • z6ne
    replied
    okay I gotcha. Are you gonna cut the tail off? any plans for upgraded suspension and candy for looking hot?

    Leave a comment:


  • einhander
    replied
    Originally posted by F34R View Post
    Hipsters do not care about what they own. They slap stickers on it and swap a carb'd v8 ;) lol

    I am doing a complete cafe from this.





    They are amazing, it will be even better once the engine is woke up with that big kit!

    On topic:

    I am VERY excited to start this build. I have been inspired by many before me with amazing frame up builds to convert them into slick legal road blasters.

    My plans are going to be:
    -Custom swing arm to house the 2.75 tires that do not fit currently.
    -Top tube support beam/Puch frame fuel tank delete.
    -Top tube fuel tank
    -Front and rear mechanical disk brakes
    -70cc phbg conversion kit:
    port matching for added flow/power

    End result will be along these lines below:
    I love that.

    Tell me more. I'd love to ride one of these around the city and freak everyone out.

    Leave a comment:


  • F34R
    replied
    Originally posted by z6ne View Post
    so you're gonna attach a crossbar and then mount an external top tank onto that? You should fab it up somehow to where the tank sits totally horizontal to the ground, ive seen so many pictures of maxis top-tanked at an angle, looks really stupid in my opinion. What kit did you order? I've always wanted to build one and read so much in anticipation that I'm somewhat knowledgeable about them, but it turned into motorcycles. Got a 125cc enduro a while back, sold it and then got my first e30. Was a blast, really wanna get another one someday. what pipe are you gonna run?
    Did you read post #52? There is all the info and a picture of what I am going for. Delete the stock frame tank then fab/mount a top tank.
    I have a top tank from a Magnum style moped. I will see if it works for my plans, if not I will cut it up and make new sections for a custom tank. Wonderful thing about a welder! Anything with metal can be made.

    I have this kit paid and inbound right now:
    https://www.treatland.tv/puch-PHBG-t...ty-supreme.htm

    Leave a comment:


  • z6ne
    replied
    Originally posted by F34R View Post
    I have a top tank from an old moped, going to see if I can make it work. I belong to both forums. Army is by far the most informative place out there. So much tech in the FAQ section.
    I want to make the frame more skelton/bare. I have a tubing bender that I bought to build my cage on my e30. I will most likely end up bracing from the seat to the forks. Then removing the Stock Puch tank/frame and make my own. We will see how much has to be hacked up.
    so you're gonna attach a crossbar and then mount an external top tank onto that? You should fab it up somehow to where the tank sits totally horizontal to the ground, ive seen so many pictures of maxis top-tanked at an angle, looks really stupid in my opinion. What kit did you order? I've always wanted to build one and read so much in anticipation that I'm somewhat knowledgeable about them, but it turned into motorcycles. Got a 125cc enduro a while back, sold it and then got my first e30. Was a blast, really wanna get another one someday. what pipe are you gonna run?

    Leave a comment:


  • F34R
    replied
    Originally posted by z6ne View Post
    I remember this one. Always wanted a top tank.

    you should make the frame like this

    also, you know of http://www.1977mopeds.com/ and www.mopedarmy.com right?
    I have a top tank from an old moped, going to see if I can make it work. I belong to both forums. Army is by far the most informative place out there. So much tech in the FAQ section.
    I want to make the frame more skelton/bare. I have a tubing bender that I bought to build my cage on my e30. I will most likely end up bracing from the seat to the forks. Then removing the Stock Puch tank/frame and make my own. We will see how much has to be hacked up.

    Originally posted by pacmanE30 View Post
    this thing is going to be a beast! that cafe style is sick!
    Stay tuned, this is going to be happening fast. Only thing that was holding me back was the kit. Now that is inbound I can design the frame around the filter placement.
    Last edited by F34R; 06-06-2013, 07:05 PM.

    Leave a comment:


  • pacmanE30
    replied
    this thing is going to be a beast! that cafe style is sick!

    Leave a comment:
