    sealed beams to euro ellipsoids wiring

    so I wired up my euro ellipsoids today going from sealed beams. I didn't want to deal with tinkering around with the fuse box or relay so I created a simple diode connector that can easily be removed if I ever want to go back to the sealed beams.

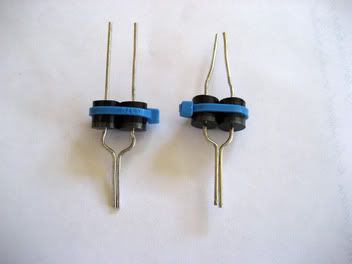

    first step was to get the diodes. I used 6A, 100v diodes as this was the best rat-shak had. (55w lows shouldn't draw more than 5A anyways as the circuit is protected by a 7.5A fuse)

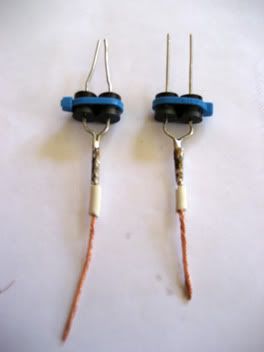

    Soldered on some 16ga wire as the diode leads wouldn't fit in the 1/4" spade connectors.

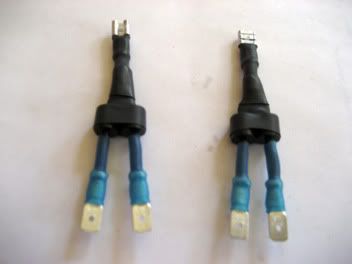

    All shrunk up and ready for install.

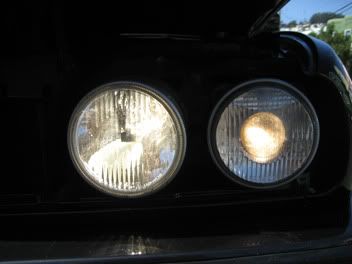

    Let there be light! :)

    Im no engineer so we will see, but works for now. This may be an easier way to go, especially for you HID guys, as it does not interrupt power switching from low to high on the low side and can be quickly reversed.

    Thanks for looking.
    [IMG]http://www.r3vlimited.com/board/
  • StreuB1
    Advanced Member
    • Sep 2007
    • 113

    #2
    Still working properly?

    Can you show where this is connected??

    I bought a car and the relays were jumpered out and have DDMs installed. Im redoing the lighting and have euro depos and bought new DDMs (one died) and want to clean up the wiring more. This looks like it will do that.
    I like to build things with metal n stuff

    Comment

    • stumble_t
      Mod Crazy
      • Aug 2009
      • 759

      #3
      Yes still working properly. Ill update w/more pics tomorrow...
      [IMG]http://www.r3vlimited.com/board/

      Comment

      • 16v of E30
        Banned
        • Aug 2008
        • 157

        #4
        Im no electrician but I can confidently say that this is probably the best bet, you just saved $200. Its clean, simple and pretty much exactly what youd get somewhere else.

        Comment

        • StreuB1
          Advanced Member
          • Sep 2007
          • 113

          #5
          Thanks much appreciated!

          Just replaced my oldddddd euro projectors and old DDM HID's with brand new depo H1's and the new 55w raptors (5000k's) and its completely unreal the difference. I was diring home lastnight after work (aimed them in the shop) and they blew my mind. The color is pure white, illumination is astonishing and the best is the angle and distance of the uptick. Some of the best money I've spent to date, and I've spent ALOT!
          I like to build things with metal n stuff

          Comment

          • X_WizarD_X
            Member
            • Jul 2005
            • 99

            #6
            I'd like to see more photos also....Just about to install euro ellip's in mine also..
            sigpic
            ...
            The Keystone Killers: for the Commonwealth!
            Member #18 of M42Club.com
            1991 318is Diamantschwarz Black
            1992 850i Calypso Red

            Comment

            • McGyver
              R3V Elite
              • Jun 2009
              • 4438

              #7
              wow, as long as Amps, Watts, and Voltage are accounted for in the components used and it is protected from water, i don't see how it could fail. this is definitly the route i will take when i get my new headlights.
              sigpic
              1987 - 325i Convertible Delphin Auto [SOLD], 325i Convertible Delphin Manual [SOLD]
              1989 - 325i Convertible Bronzit m30b35 swapped [SCRAPPED], 325i Sedan Alpine Auto[DD]
              1991 - 325i Coupe Laguna Manual [Project], 535i Sedan Alpine [SCRAPPED]

              Comment

              • stumble_t
                Mod Crazy
                • Aug 2009
                • 759

                #8
                here's a crappy (sorry) photo of the diode in the OE connector
                [IMG]http://www.r3vlimited.com/board/

                Comment

                • Grant8311
                  Noobie
                  • Nov 2009
                  • 12

                  #9
                  Sorry I am a bit new to this (BMW newbie), but what is the reason for this? when I took my car apart I only see two leads for the connector, so I figured there would be a relay to already keep the low beams on while the high beams are on?

                  Comment

                  • JasonC
                    Site Manager
                    • Aug 2006
                    • 14451

                    #10
                    This seems like alot of work for something as simple as just hooking up a + to + and - to -. The popping two relays and running a 2" long wire from one prong to the other.

                    1992 BMW 325iC
                    1978 Chevrolet Monte Carlo
                    1965 Chevrolet Corvair Monza 140hp

                    Comment

                    • BimmerScreamer
                      E30 Addict
                      • Dec 2008
                      • 413

                      #11
                      so what bulbs are being used, I was just going to stick with the H1's that my smilies are made for and I didnt think I would have to do anything like this
                      Anything can be done

                      Comment

                      • stumble_t
                        Mod Crazy
                        • Aug 2009
                        • 759

                        #12
                        Originally posted by JasonC
                        This seems like alot of work...
                        The reason I did this was to provide myself with a quickly reversible alternative that didn't involve bridging relays in the fuse panel

                        Originally posted by BimmerScreamer
                        so what bulbs are being used...
                        H1 OSRAM Silverstars

                        Originally posted by Grant8311
                        ...what is the reason for this?...
                        If your car has dual filament low beams(sealed beam) switching to ellipsoids will require some form of mod to make the highs and lows operate at the same time.
                        [IMG]http://www.r3vlimited.com/board/

                        Comment

                        • X_WizarD_X
                          Member
                          • Jul 2005
                          • 99

                          #13
                          Originally posted by stumble_t
                          If your car has dual filament low beams(sealed beam) switching to ellipsoids will require some form of mod to make the highs and lows operate at the same time.
                          91 318is must use a different setup...I went from sealed beams to H4 lows/H1 highs and now to Euro Ellip's (all H1) and my lows have always stayed on with my highs without any "relay or fuse box" fix.. I still use the original headlight wiring and just use spade's to hook up the lights to the original connectors..
                          Next step is some 5000k HID's..

                          Dan
                          sigpic
                          ...
                          The Keystone Killers: for the Commonwealth!
                          Member #18 of M42Club.com
                          1991 318is Diamantschwarz Black
                          1992 850i Calypso Red

                          Comment
