Turbo Manifold Adaptor Kit for M20 to 524TD Manifold

[MonkeyMadness]

Hey All..
Updated: Bump for more kits finished and ready to go! 35 sets left
And Ready to build more if needed!
Open for trades, throw me an offer...


Built this for my an old build but figured I'd offer it out to anybody else
thinking of running the 524td turbo manifold..










So it's a simple little kit, 6 adaptors and 6 M8 flat head bolts. No Porting of the manifold needed
$60 +shipping ($5.20 USPS)

Or $80 +shipping: You get flanges, flat head bolts, complete studs set "6 short & 6 long", Nuts and washers.

1. Remove lower exhaust studs.
2. Thread in stock exhaust studs into threaded holes of adaptors ( i suggest locktite)
3. Slide adaptor top hole over top stud on head and insert flat head bolt into lower counter sunk hole and thread into head and tighten.
4. Now slide 524td turbo manifold on to studs and tighten.

You'll need to get the standard exhaust gaskets as well as the exhaust gaskets for the 524td that you can get from Pelican parts...

[MonkeyMadness]

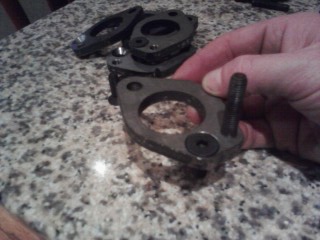

Picture Update :mrgreen:

[richardb]

Very cool idea. Props!

[MonkeyMadness]

ttt

[ZM Blue Devil]

Love it!

[Erik j]

Interested, this may solve my turbo hitting the head problem.

[MonkeyMadness]

Very cool idea. Props!

thank you...

Love it!

thanks..:D

Interested, this may solve my turbo hitting the head problem.

It may! I can't say for sure, don't know your setup but I'm sure if your just slightly touching it this should do the trick..
This adaptor is 5/16" then add 1/16" per gasket. So your looking at about a spacing of 7/16"

------------

If your looking for more info this is the Idea/build thread..

http://www.r3vlimited.com/board/showthread.php?t=193212

[Erik j]

I have the 524td manifold that has no egr port. So it's a little closer to the head.

[e30euro]

i like yesa i like. good thinking man bump for you.

[Aptyp]

how many sets have you made? I am in for one for sure. Just let me get a few things sold, hehe.

[lifeiskaos]

the stock top studs are long enough?

had these been around back in the day, i would have picked them up for sure. no more m20 though...

[MonkeyMadness]

how many sets have you made? I am in for one for sure. Just let me get a few things sold, hehe.

I've made a few set so far.. but can make them to order..
just let me know when your ready...:)

the stock top studs are long enough?

had these been around back in the day, i would have picked them up for sure. no more m20 though...

You may have to turn them out a few theards but should be no problem
the mochup i used had no problem.. :)

[AutoXinE30]

how many sets have you made? I am in for one for sure. Just let me get a few things sold, hehe.

I would like to know too.

[MonkeyMadness]

I would like to know too.

I have 6 sets as of right now, but like i said above I can make them to order..

[MonkeyMadness]

bump

[mars_colt]

Hey if you still have a set I am interested
