FS: 13 OBC wiring harness

[m3/e30fanatic]

Well i believe it is that. LOL. Got it in my car when i bought the car.
Who ever knows please comment. The part number says its a dashboard cable harness.

Asking $30 but i have no idea what its worth. If its more or less we can work a deal. No cut wires.

[m3/e30fanatic]

up

[m3/e30fanatic]

Up! Someone help me know what it is at least :(

[Poorboyz]

Can't really tell by those pics. Can you post up a pic of the connector connector hat plugs into the OBC? I could tell you then.

[m3/e30fanatic]

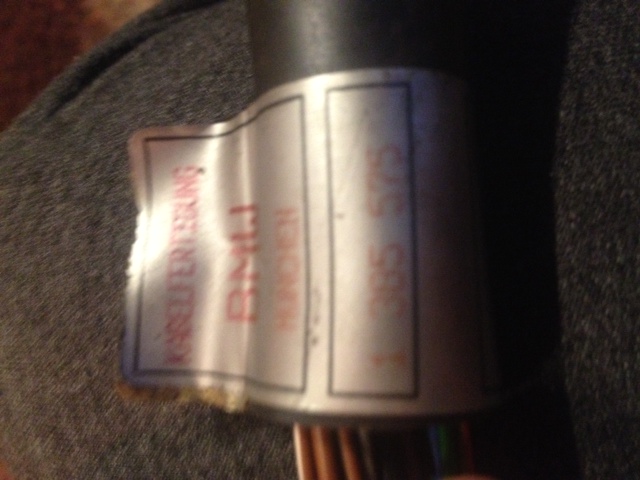

I will when I get home. But the part number is 1 385 575. Is that any help?

[Poorboyz]

I'm a noob so a part number to me right now means nothing until I look it up. I do however have a 13 button OBC harness so I know what it looks like.

[m3/e30fanatic]

I'm a noob so a part number to me right now means nothing until I look it up. I do however have a 13 button OBC harness so I know what it looks like.

its not a obc harness i think. the plus is rectangular and has a bunch of circles in the plug

[keflaman]

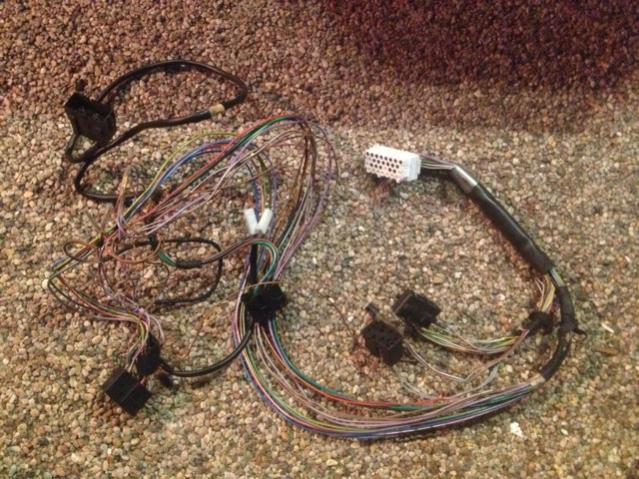

It is the harness that runs behind the dash (61 11 1 385 575) and here's the breakdown starting from right to left:

http://www.r3vlimited.com/board/attachment.php?attachmentid=61581&d=1350873686

-The white connector is the female side of C103.
-The black nine pin connector goes to the headlight switch.
-The black two pin connector goes to the fog light switch.
-The light goes to the light switch panel for back lighting.
-The next two black connectors go to the defrost and hazard switches.
-The four female spade connectors go to the glove box light switch and light.
-The black two pin connector is the glove box charging receptacle.

http://bmwfans.info/parts/catalog/E30/2-doors/USA/325i-M20/LHD/M/browse/?search=61111385575&date=true
