    iX Brake Booster and Brake Master Assembly

    Complete 89 325 iX brake booster assembly for you M50 swap guys.
    Booster, master.....All the little parts too....clevis pin, clip, nuts.... bla^3
    PM for pics.
    $95 OBRO
    Last edited by Mitch M; 10-13-2006, 09:51 PM.
  • LINUS
    R3VLimited
    • Jul 2004
    • 2422

    #2
    Do you have the little adapter part bolted on it? The part that makes it a 4 bolt pattern to the firewall from the 2 bolt side on the MC itself.

    I NEED pics of that part F'ing Barvarian Imports crushed the IX mine came out of already, and it didn't ship with the part.

    PM me please so I can get some pics from you so I can weld up my own. I need to see the way the flanges "twist" the bolt pattern.

    Thanks!

    -Ben

    It's not how you handle the good times, but the faith you keep in the bad that defines you.

    Comment

    • equate975
      No R3VLimiter
      • Jun 2004
      • 3382

      #3
      OT: but to answer LINUS's question. I dont think you "need" the adapter, I have not tried this but I think another member on this board did after telling him I think this would work. But I am 99% sure that if you shorten the IX shaft like the 320i booster and poke 2 more holes in the firewall it will bolt up. The good part about this is you get the IX double drum design, and the real kicker is I dont think you will need a remote res.
      Rollin' with a Geistkuchen

      Comment

      • LINUS
        R3VLimited
        • Jul 2004
        • 2422

        #4
        Not to thread-jack, but my plan is to shorten up the MC rod, and to make a new adapter that is much shorter to use all 4 of the holes in the firewall (might be like 3/4" thick, maybe even thinner) . I remember the idea brought up back then too, and it seemed like it wasn't thought of too highly to just punch 2 new holes in the thin sheetmetal.

        Sorry Mitch, at least you're getting some free bumps and maybe someone else will want to try my experiment too and buy your MC.

        -B

        It's not how you handle the good times, but the faith you keep in the bad that defines you.

        Comment

        • Mitch M
          E30 Modder
          • Oct 2003
          • 881

          #5
          Re:

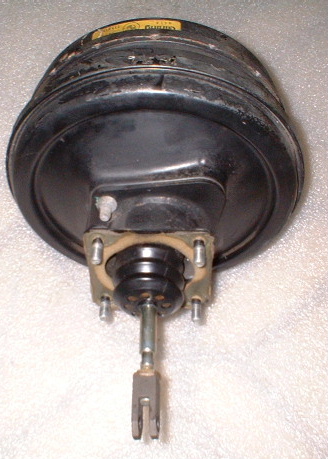

          Pic added for your viewing pleasure.
          Attached Files

          Comment

          • Bimmer335is
            Advanced Member
            • Jun 2006
            • 146

            #6
            pm sent

            Comment

            • E30_pilot
              E30 Fanatic
              • Sep 2005
              • 1461

              #7
              still for sale?
              -Frank
              1987 325is m50nv (schwarz)
              1990 325is (sterling silber)(sold)
              2001 525i

              Comment
