Wilwood Superlites - feeler

[passdanachos]

I have a set of Wilwood Superlites caliper and pads I am thinking of selling. They are used but only for a couple of months. I purchased them from Massive Brakes along with the complete E30 kit.

The problem is that the calipers are too wide to fit behind my rims without a spacer. When I mount them with a spacer, I cannot mount my rims properly as it no longer hub centric. Without being hub centric, my car steering wobbles at high speeds above 80 KM/hr. So I am downgrading to Wilwood NDL's which will fit my car with the rims and without spacers and I will be hubcentric again.

They are black, with pads, brand new but they do have scratches where they rubbed the rims.

I am only changing the calipers and pads, I am not selling the hats, rotors or mounting kit.

Anyone interested?

I was thinking in the range of $240 USD plus shipping.

[RyanZ06]

sounds like you just need to convert to wheel studs, and buy some spacers and some hub centric rings.... No big deal.

[passdanachos]

That is why this is a feeler! But right now I can't find a hubcentric ring that will fit in my wheel.

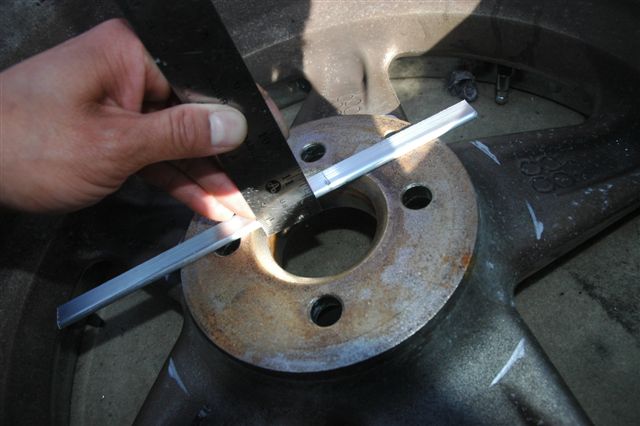

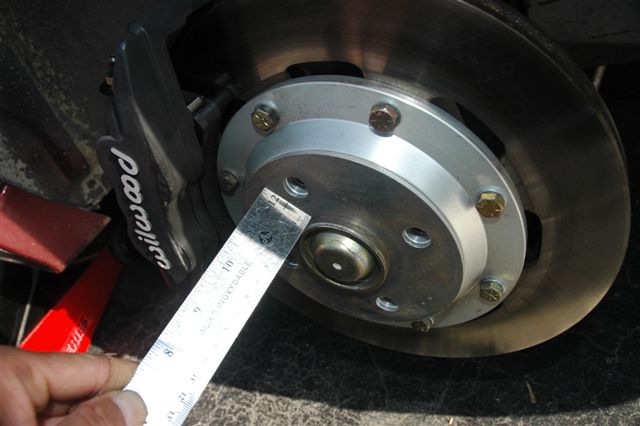

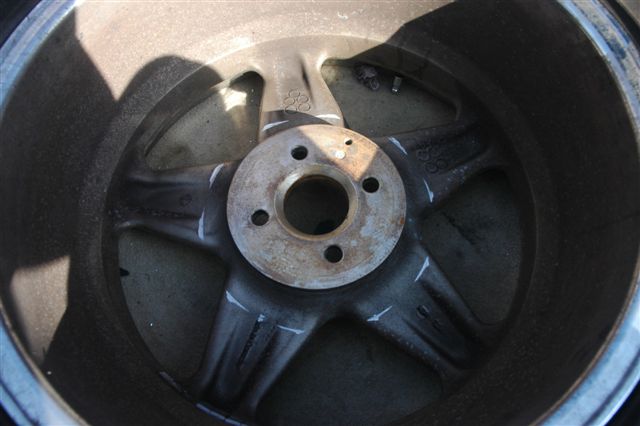

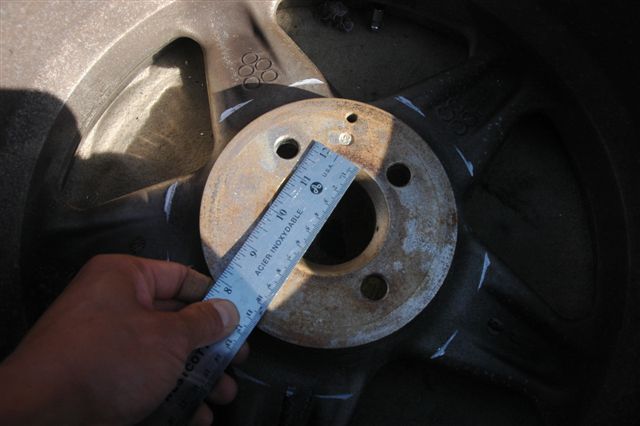

There is 7mm of hub exposed after the spacer installed as in the pic. Unfortunately my wheels also have a bevel on the back which is also 7mm deep. Therefore the rims just barely miss the hubs. So without the 3mm spacer the rims would seat on the hubs.

So I really have two options, if I go with replacing the Superlites with the NDL's I will have the hub seating I need to eliminate the wobble. Alternately I can also try to get custom rings machined so that it fits within my wheel bevel and seat on the hub. But because of the bevel, I don't know if it will seat the rims on the hub properly.

Or is there hubcentric ring out there that will solve this?

[Jesse30]

if these would fit under my wheels i would jump on them. but i know for a fact they wont :(

my stock ones barely clear it.. haha

[pussy]

sorry to hear that it can't fit.. Lee had the cut-outs that i used to my Borbets A rims and it cleared about 1mm.. using the NDL calipers too..
it does a good job of stopping..

[E30-323ti]

That is why this is a feeler! But right now I can't find a hubcentric ring that will fit in my wheel.
There is 7mm of hub exposed after the spacer installed as in the pic. Unfortunately my wheels also have a bevel on the back which is also 7mm deep. Therefore the rims just barely miss the hubs. So without the 3mm spacer the rims would seat on the hubs.

So I really have two options, if I go with replacing the Superlites with the NDL's I will have the hub seating I need to eliminate the wobble. Alternately I can also try to get custom rings machined so that it fits within my wheel bevel and seat on the hub. But because of the bevel, I don't know if it will seat the rims on the hub properly.

Or is there hubcentric ring out there that will solve this?

3. Make a pair of hub extenders.

These are for E36's but pretty simple to make.

[Jason89i]

active autowerks also sells hub extneders for 70. they are ment for the e36/46 but i bet they would work for the e30's. worth a call.

http://www.activeautowerke.com/suspension/misc/main2.jpg

[passdanachos]

Actually, that is what I am thinking but I can't find hub extenders specific for the E30. The Turner ones are for everything BUT E30's!!!!

[browntown]

http://www.1010tires.com/hubrings.as...FReyhgodFAzv9Q

[ebelements]

My car acts the same way, as I'm running 10mm spacers, which aren't made hubcentric. It's pretty awesome.

So my braking sucks and I vibrate anyways, if I were to pick these up from you, what else would I need to install these? Also, how big are the rotors?

[JRKOUPE]

Actually, that is what I am thinking but I can't find hub extenders specific for the E30. The Turner ones are for everything BUT E30's!!!!

Email sent......

Lets talk!

[ebelements]

^^^ if you make or can find hub extenders, please let me know, it would be awesome to not have this thing trying to shake itself to bits on the freeway.

[Eric]

i'll buy those calipers...
