E34 harness connector

[JFarhanbod]

Where does this connector go?

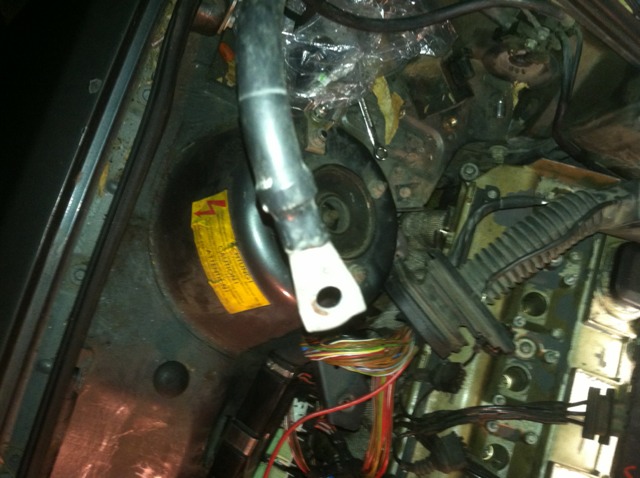

And the power cables have me a but confused. Is this power or a ground?

An for the harness power, do I just hook it up to the block here? Which terminal?

Thanks

[JFarhanbod]

fawkin tapatalk posted this in the wrong spot..

[cormier]

That black wire looks like an alternator/starter cable. If you trace it is it a separate, 3-ended piece with a rubber grommet? Peel back the cover too and it may indeed be red underneath.

Hook up harness power to that +12 block, I don't think it matters what terminal as long as its nice and shiny

[adam325i]

I'm in the same boat as you. Not sure if their power or ground. Also that connecter I don't think needs to be connected to anything. Ill most likely find out tonight if it works or not.

[JFarhanbod]

That thick cable goes to the starter. And the other one was removed.

[immigrationseo]

Hi

BMW 5 Series E34 ISO Wiring Harness Connector Stereo Radio Adaptor PC2-05-4 in Vehicle Parts & Accessories, GPS & In-Car Technology, Terminals ...


Australia Immigration

[iViLe]

There should be a big ground wire which just has heaps of little ground wires bunched up to a big connector, then the big starter/alternator cable, usually with the battery + terminal on it and then another red one which is for the main engine harness. I just put an e34 m50 setup into my e30, Only got the thing working today.

[iViLe]

I used a manual m50 e34 too, so maybe that first connector has to do with the auto?

[Fritz_Wetherbee]

I'm also mid swap with an e34 harness. I'm pretty certain that the first plug is for auto and is useless.
