Help!!!!!! can't get motor mounted M50

[Kingb]

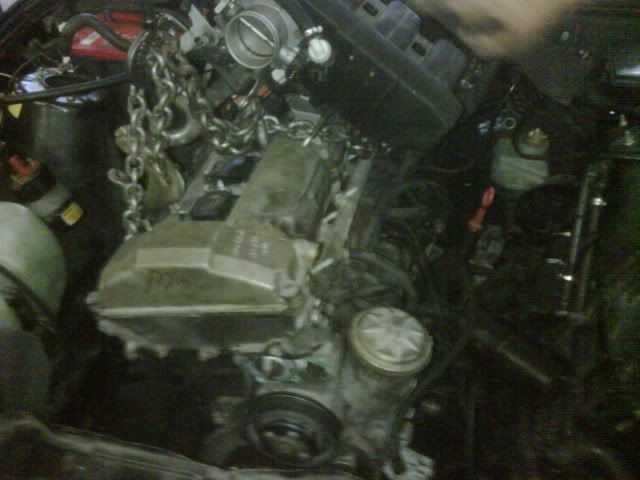

I have a euro 90 325i and have a euro m50 that I can't get to line up at all. We have a screw driver inthe DS motor mount holes to hole it and called it a night. The pass side motor mount is about 3 inches too far forward and the head is on the firewall. The motor still needs to be tilted forward but we couldn't push it back that way. I am so stuck have very limited time tomorrow and then I am gone for a month. I just want to have this thing mounted. The car is on a lift with cherry picker and 2 floor jacks.

This is what I have:

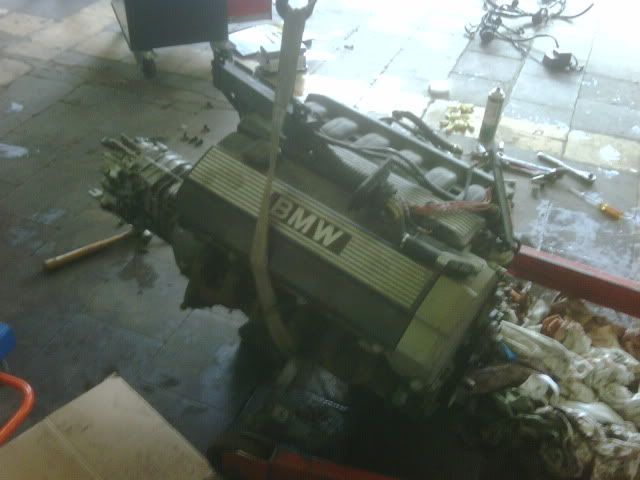

e34 M50
e36 motor mount arms euro
Getrag 260
87-88 535i mounts ( these are not green)

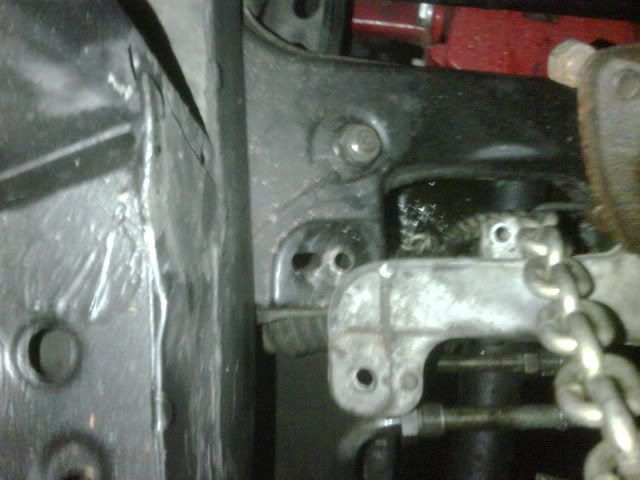

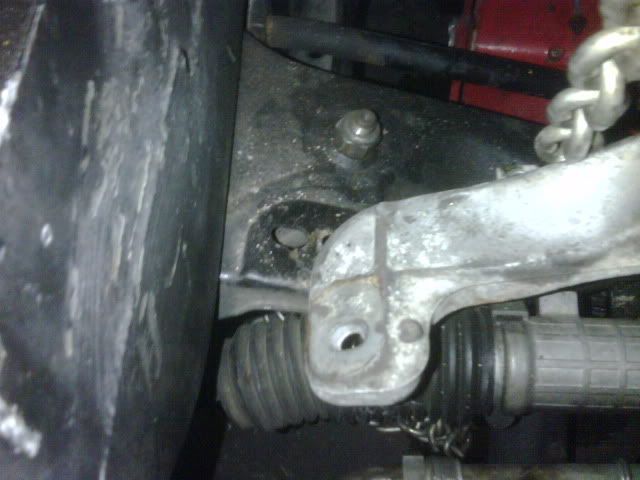

Pass side mount, the angle on these doesn't look right

[e30s52]

I think your mount arms are upside down. But I cant really tell from the pictures. Take some pictures of the mount arms and motor mounts.

[Kingb]

I just googled it, found a pic and you beat me to it. I had another mechanic with me too and we spent 2 hours putting this in. They are upside down. Now I feel like an idiot. Can I use the e34 manifolds and e36 down pipes? I read somewhere that the e36 cats fit so I might go that route.

[e30s52]

Yeah somthing looked alittle off to me. If you are talking about the e34 intake manifold then yes you can and the e36 down pipes will work I think.

[Kingb]

I meant e34 down pipes. But now that I know the mounts were upside down that explains everything. The e34 exhause manifld was hitting the motor mount and the firewall. I just don't want to get headers since I have to sell it in 6 months anyways.

[e30s52]

Yeah I really dont know sence I used SS rep headers.

[gregslow318i]

I meant e34 down pipes. But now that I know the mounts were upside down that explains everything. The e34 exhause manifld was hitting the motor mount and the firewall. I just don't want to get headers since I have to sell it in 6 months anyways.

the fronts are the same but the rear is about 2 in shorter
also part# on real oem are same for the fronts and the rears are not the same

[Kingb]

the fronts are the same but the rear is about 2 in shorter
also part# on real oem are same for the fronts and the rears are not the same

So If I am going to get e36 cats then use e36 mainifolds that are not the same to e34. I am going to look it up on real oem now. LMK when you figure out that adapter for my friend.

[Kingb]

Got it mounted. Thanks.
