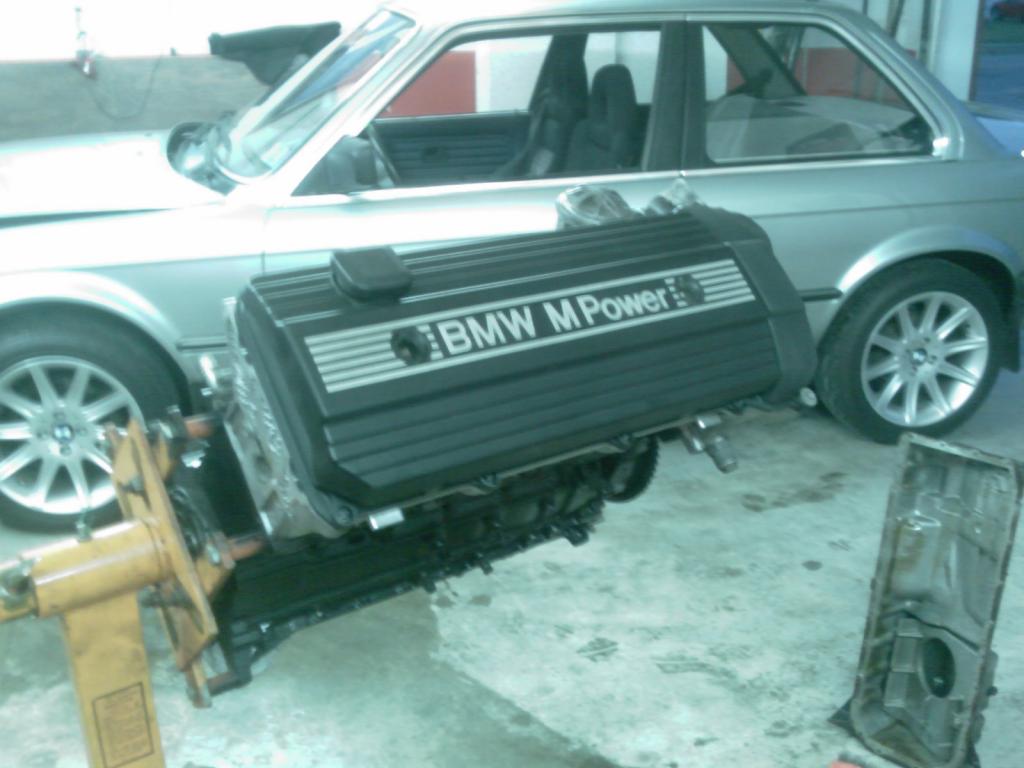

Does anyone know where i can get wiring information for a 1983 euro 318i. Searched high and low. The square plug diagrams i found are from 1984 on.My fuse box clover has german writing on it and i do not speak the language. Has anyone swapped into a euro spec car? If you can point me in the right direction please.I have a s50 waiting to get into my engine compartment.

[gregslow318i]

can you get me a pic of the harness more specifically the colors and they location on the harness. at the c101 port and the c103 port (3 wire plug in the glove box about the dme)

[veet]

harness plug

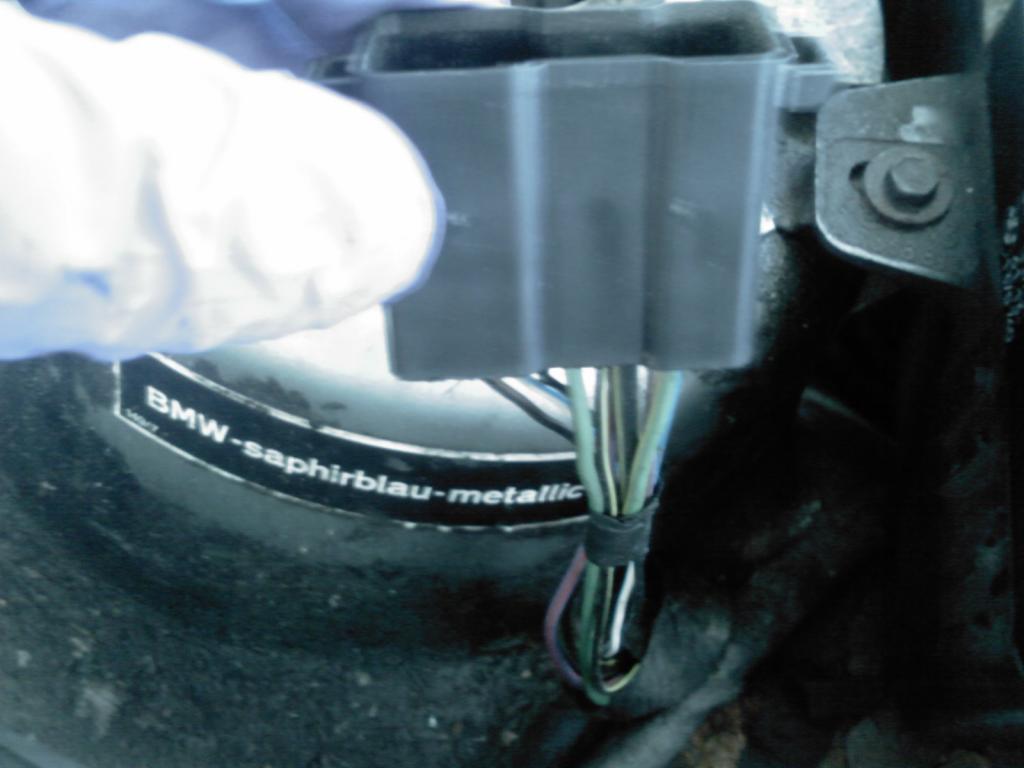

here are the colors i have on my engine harness. I also took some pictures and i will post. thanks

[veet]

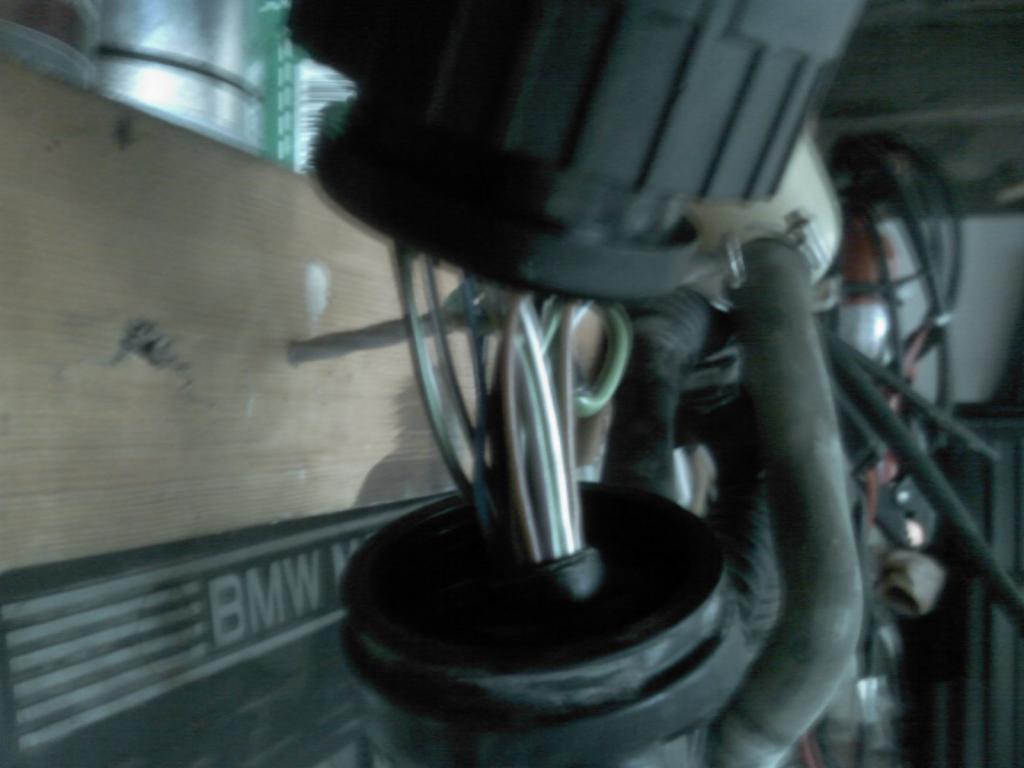

here are some more pics.

[veet]

harness pictures

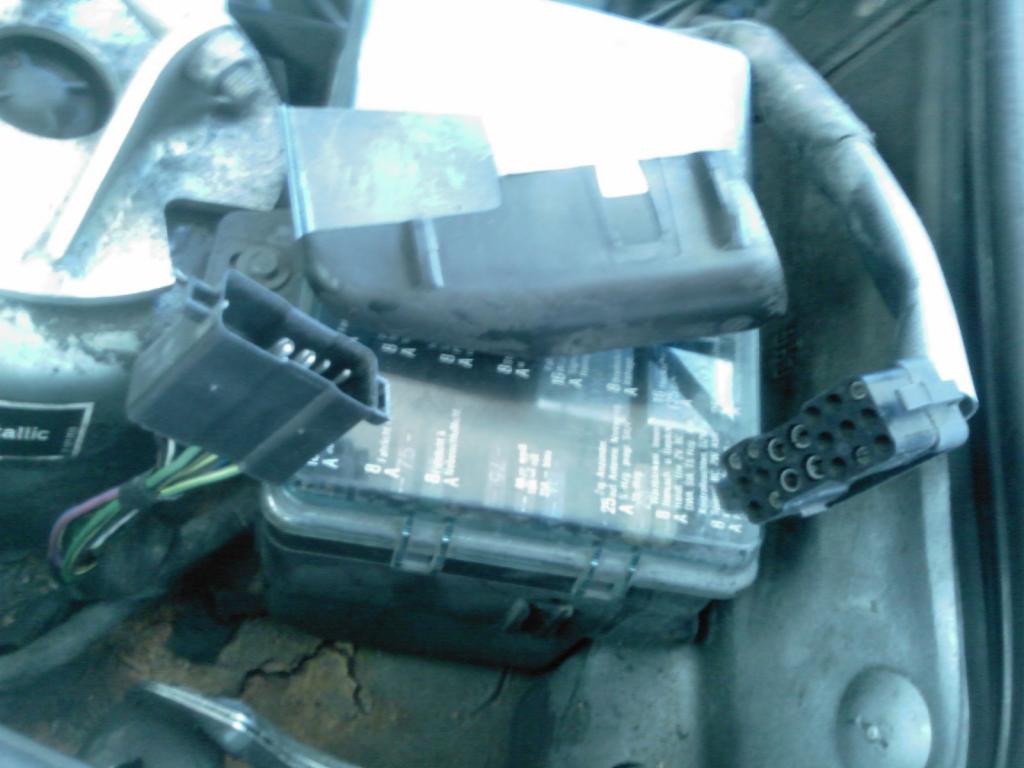

here are pictures of square plug i am dealing with.

[Good & Tight]

The wires are the same color as my 84 euro 318i. Just match them up to the round connector and your good.

[veet]

wire colors

thanks for the reply. I am looking to find out what each wire is assigned to. i am pretty sure about black/yellow =starter blue=alternator green=ignition switch. all the electrical dwgs i found refer to the US models.
Do you have dwgs for the euro model e30? veet

[gregslow318i]

give me a day or to I think I have all the parts needed to make a early c101-x20 adapter for your swap.

[veet]

messed up

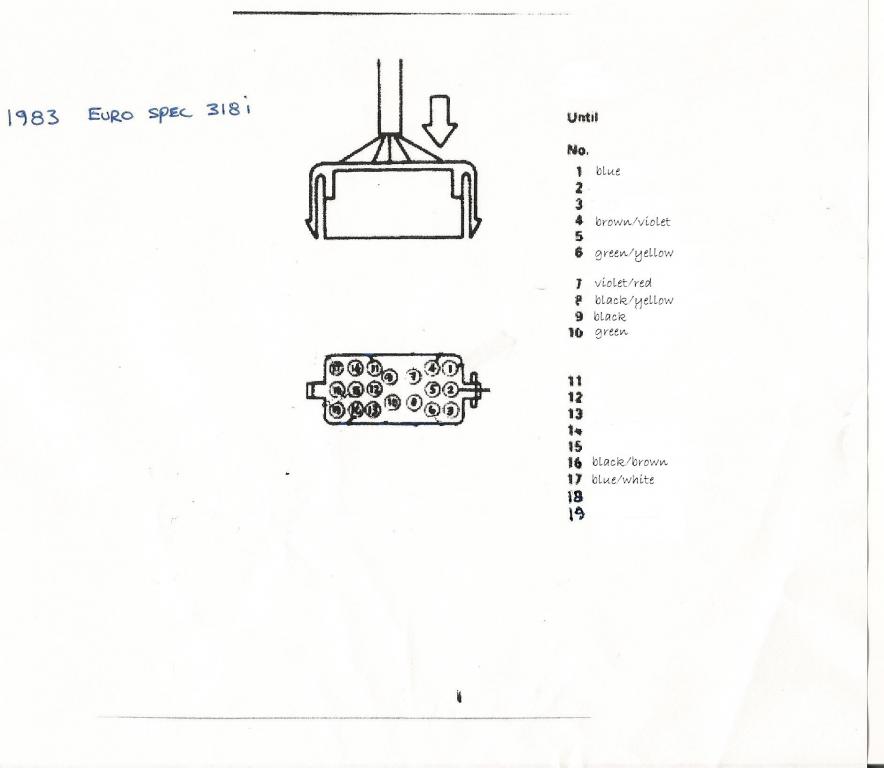

sorry guys i messed up... i have being looking at the engine harness plug the wrong way..check out what i have on my revised dwg..
