High beams not connected and misc connectors not plugged in! (pics inside)

[skatingzooyork]

So the PO told me that the sealed beam "lows" are wired for highs and lows (he didn't do it, so he didn't know why) So when I got the car, that's exactly how it was. The inner "highs" aren't even hooked up!

So today I finally got a chance to start digging into the wiring and these were all of the connector that were unplugged!! Can anyone help me identify them so I can get this sorted out?

And I did check out the wiring diagram pdf but it doesn't identify any of the connectors...

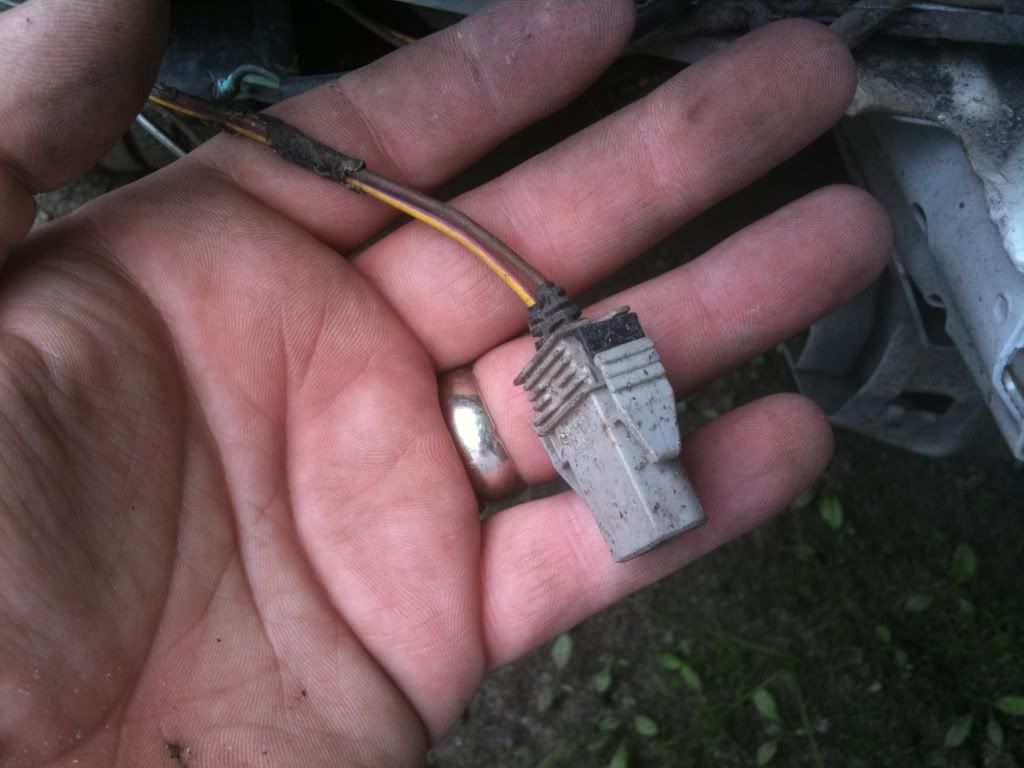

1. DS


2. DS


3. DS


4. DS - This looks like a fuse but it doesn't attach to anything!



5. PS


6. PS - This was BARELY connected to green/black wire in picture #4. But not attached to anything!


7.PS




Thanks for any help!

EDIT:
Ok - from digging a little more I have figured out the lows are duel filament so the highs just aren't working and I'm just seeing the stock lows switching. But I didn't see a pair of connectors to plug into the "highs"...Yeah.....

Also, #4 looks like it's the resistor for the aux fan. Which then I realized my fan isn't stock! :) Kinda looks like a spal but not sure...

Here is a pic of my fan:

[skatingzooyork]

Ok - from BFC I found out the grey connectors are for the fogs (which I don't have yet); and the yellow plug is for the obc temp probe so I will ziptie that somewhere away from the motor...

[jrdeamicis]

2, head light, 4, fan resistor, 5, horn Im pretty sure.

[jrdeamicis]

6, corner marker

[skatingzooyork]

Thanks guys, I got things semi orginized and plugged in the highbeams; so now when you turn on the headlights all of them come on! Ugh... Also on the cluster, the highbeams light stays on as soon as I turn on the lights.

No idea why, gotta research it I guess...
