Quck question on spal wiring for 24v

[Matt-B]

In this picture, its saying to add a fuse, to the red wire going to battery, and its blurry, what size fuse do I need?
Does it say 30AMP? On my screen i can barely read it




thanks guys,
-MattB

[bimmerteck]

30 Amp for High CFM fans.

The Aux fuse panel in your e30 actually has both constant and keyed power for pins #86 and #30 on your relay all you need to do is add a fuse.

[Matt-B]

Cool thanks man, i have a shitbox compaq laptop, and the clarity on small detail is lacking..

thanks

[cabin]

Thanks for posting that diagram, I have been looking for it for a couple weeks, didn't realize it was from understeer.com. Now I can get my Spal wired up!

[Matt-B]

yea, if you go to the 24v sticky, and go to wiki, its on bottom of page :)

[Matt-B]

wow, so fucking easy this was...I can answer any questions, comes on after car sits a bit

[motorsports_3]

30 Amp for High CFM fans.

The Aux fuse panel in your e30 actually has both constant and keyed power for pins #86 and #30 on your relay all you need to do is add a fuse.

I just curious, you would ad a fuse and then what? What source would the spal fan get power?

wow, so fucking easy this was...I can answer any questions, comes on after car sits a bit

Good to see you got it, and found it easy. I used that diagram as well but the colors were off. I'm pretty sure it was drawn for an e36.

[Matt-B]

colors were good on my m42 car :) replied to your booster thread

[BlapBlap]

Damn thanks for posting this! I'd been looking for this for a while

[blackhawkimpact]

wow, so fucking easy this was...I can answer any questions, comes on after car sits a bit

Pics? Or more detailed info? I'm still having trouble wiring my e-fan. I'm an Nincompoop when it comes to wiring. Idk how I splice my harness and it work 100% the first time

[Matt-B]

Yea Ill get pics today... : )

[blackhawkimpact]

Nice. Thanks.

[Matt-B]

today i mean, maybe you need a better pic?



i got switched power from the purple wire on ignition switch

Constant 12v from the ECU wire power or junction block

Grounded strut tower

Tapped black brown sensor wire

[blackhawkimpact]

lol

[Matt-B]

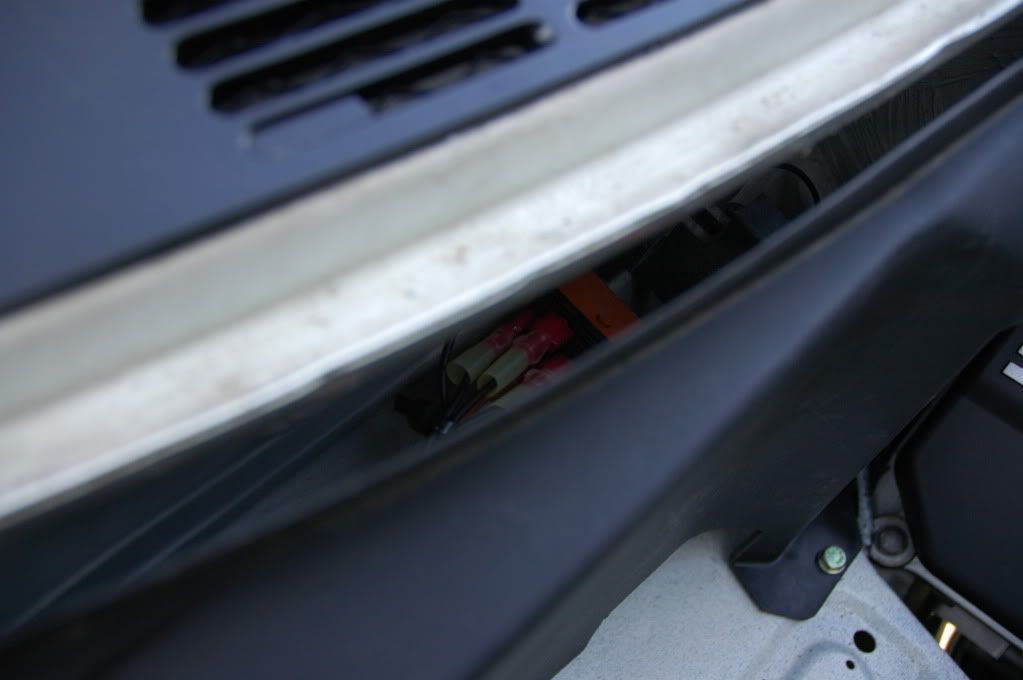

get an orange relay from glove box, there #s are on bottom

super easy, ill get more pics today dammit!!1
