    Need Radiator Hose advice! Help!

    Hello everyone,
    I purchased this radiator on ebay while I was out of town. It arrived and looks awesome, however I cant figure out which hoses to use. I have a91 318is with an m50. I dont mind fabbing but any hose advice would be great. Also, is it really meant to be oriented in the way the picture shows? The pipe coming out at a 90 degree, not the 45 degree, has a long male nipple next to it. Thanks for the help. This is my first time doing a radiator swap. I thought this would be plun-n-play but I guees not. Want to install tonight. Thanks everyone.

    88 M3 - S54

    Tags: None
    #2
    What I was trying to point out about the nipple and orientation is that shouldnt that nipple be on the driver side top to go the overflow tank? If so, I need to have a hose that does almost a full curl in order to reach that 45deg pipe, or a hose with a crazy-tight S curve.
    88 M3 - S54

    Comment

      #3
      Bump for impatience. Need to go get parts in a few hours if I want to do the install tonight.
      88 M3 - S54

      Comment

        #4
        Did you check to see if that radiator will even fit in the spot it's supposed to go in, or if hoses will even reach properly to those locations from the M50 water pump?

        I've never heard of that brand, or of anyone using it with a 24V swap.

        Comment

          #5
          When I bought the car, only last week, it didnt have a radiator and the mounts were are bent up so I figure I will be fabbing up something somewhat custom. The listing for the radiator stated it was for e30s, and I had a few people tell me any e30 (late model) radiator would work. Getting it in there isnt an issue, it is the hoses.

          Originally posted by Janderson View Post
          Did you check to see if that radiator will even fit in the spot it's supposed to go in, or if hoses will even reach properly to those locations from the M50 water pump?

          I've never heard of that brand, or of anyone using it with a 24V swap.
          88 M3 - S54

          Comment

            #6
            E36 hoses..go to advance auto,they have them..you may have to trim the top a little..actually ask for the e34 top hose from a 5 series.that should do the trick
            NASA
            BMWCCA member
            PCA member 25yrs




            1991 318IS slick top
            1997 M3 sedan
            2001 325CI DD

            “whoever turns the wheel the least, wins"

            Comment

              #7
              Originally posted by e30s50dan View Post
              E36 hoses..go to advance auto,they have them..you may have to trim the top a little..actually ask for the e34 top hose from a 5 series.that should do the trick
              The top hose seems to be fine, but the bottom hose (driver side is the issue). help me out on the orientation. The photo given is upside down, right?... This would mean the higher of the two hoses is on the passenger side. Is this an issue? This radiator really has me confused.
              88 M3 - S54

              Comment

                #8

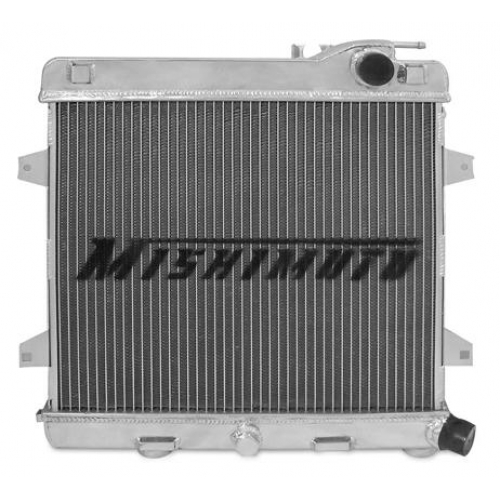

                If you ask me, they sent me an m3 radiator...it looks IDENTICAL to this:
                88 M3 - S54

                Comment

                  #9
                  Looks the same to me, too. You want the radiator for an M42.

                  Comment

                    #10
                    Originally posted by HamiltonSeth View Post
                    If you ask me, they sent me an m3 radiator...it looks IDENTICAL to this:
                    Am I the only one who sees a problem with this radiator?? The inlet and outlet on the same side, for example?? This is going to be a major pain to hook up to an M50, and yes, your going to need some crazy "S" hose.

                    24V M50, M3 cams, Turner Tune, full exhaust, ect....

                    Comment

                      #11
                      Exactly,
                      How does everyone else hook it up? Can't find anyone with the same problem
                      88 M3 - S54

                      Comment

                        #12
                        Originally posted by HamiltonSeth View Post
                        Exactly,
                        How does everyone else hook it up? Can't find anyone with the same problem
                        Return the radiator.
                        It is for the E30 M3 S14 Engine.
                        You want one for an M42(integral expansion tank) or an M20 late.
                        Or do an S14 swap.
                        Running extra lengths of sliced'n'spliced hoses is asking for trouble.

                        m
