last couple wires and plugs... halpp

[ScHpAnKy]

having trouble with the last couple plugs, I tried to label as much as I could based on the diagrams, but I want to verify the last couple to make sure they're labeled correctly... or simply finding out what they are.

Car is a '88 325iS, engine is a '92 m50nv

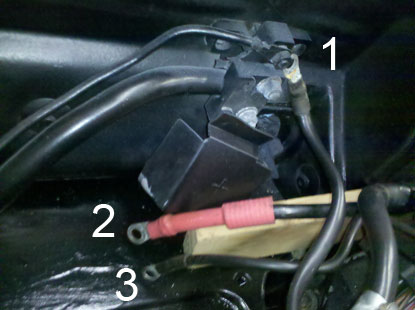

First up are these gems on the passenger's side... what are they? Which are power, grounds, where are they supposed to attach?

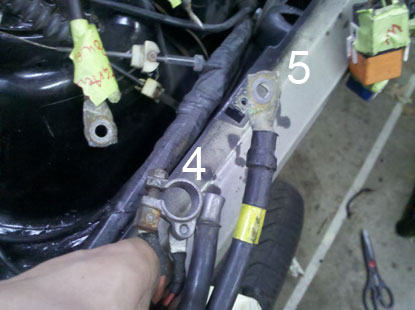

I didn't have time to trace these back last night, #4 looks like it's supposed to be attached to the terminal on the passenger side firewall, the other looks like a starter power terminal or similar... but if that's the case there's like 5 starter wires for two posts which can't be correct...

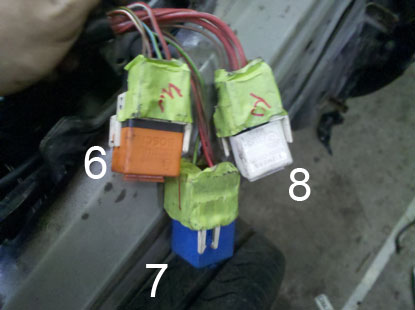

relays... I'm pretty sure I found out that the blue one (#7) is the fuel pump, right? What are the other two?

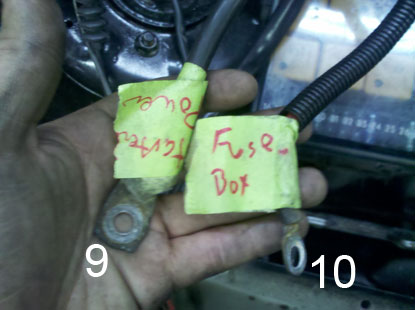

Two from the driver's side... #9 I have as yet another starter power(???) cable...

#10 is labelled as a fuse box cable, but I don't see where to plug this connector anywhere into the fuse box... do I cut the connector and splice it somewhere into the fuse box? Or does it recieve power and need to splice it with something providing power?

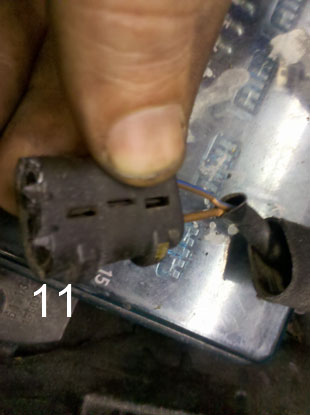

I don't have my booster hooked up yet, but I'm pretty sure this little guy goes to the reservoir?

[N2MYE30]

8- main relay
6- o2 relay
11-brake res

As for the starter, there was alot on mine but removed the one of the e36 wires and used the e30. IIRC, I have a total of 4 goint to the starter. Have you traced the wire from the alt to the starter? Im sure by the time I reference mine, fellow r3vers will reply back.

[ScHpAnKy]

8- main relay
6- o2 relay
11-brake res

As for the starter, there was alot on mine but removed the one of the e36 wires and used the e30. IIRC, I have a total of 4 goint to the starter. Have you traced the wire from the alt to the starter? Im sure by the time I reference mine, fellow r3vers will reply back.

I'm a little confused... bear with me, here...

hmm, I could have sworn the altenator had it's own power and ground off of the harness? I swear that there was a cable that matched the rear plastic bit off the altenator with power and ground already in it.

Which wire did you remove/where? I read in some thread that it was easier to yank a couple wires out of the harness and instead use the e30 ones... but I don't understand the differences in powering of the components to know which ones to plug in and what to remove :(

[N2MYE30]

It took me a bit to sort out the wires for this part too. IIRC, your #2 is what I removed. the other end might have 2 thick wires at the end of it...that whole wire, i removed from the harness.

You can see the 2 reds on the drivers side...I pulled that out.

[Matt-B]

1
2 12v power
3

on 1 and 3, peel back the rubber if brown there ground. if red, connect to firewall

4 goes to terminal on firewall

6-7-8 are relays. them them chilling somewhere

5 and 9 should be the same cable, it goes from starter to alternator

10 - 12 v power. connect to firewall

11- brake fluid resovoir level sensor
