M50 p/s hose routing

[maneeno325e]

Installing a new p/s reservoir i was hoping i had the lines set up right. the line that comes out of the bottom of the rack is obviously the return lines since it has hose clamps on it, this connects to the smaller of the two stubs on the reservoir (also has arrow pointing up).

the down arrow connects another line with a hose clamp and feeds the power steering pump if im not mistaken. im just wondering which hole on the p/s pump it bolts into. is the line in the picture hooked up correctly? and if it is then the other bolt is for the pressure line that has the U on the end of it?

lemme know if im doing this right haha, thanks.

[vic_325]

doesnt one come from the steering rack?

[hooken m]

from the reservoir one goes to ps pump and one goes to ps rack. then you have one that goes from pump to rack.

[vic_325]

does he have that right so far in the pick? which hole on the pump feeds the rack?

[cmeptb13]

The bolts are different sizes for the return lines and the high-pressure hose. Basically there's only one way you can connect it.

[vic_325]

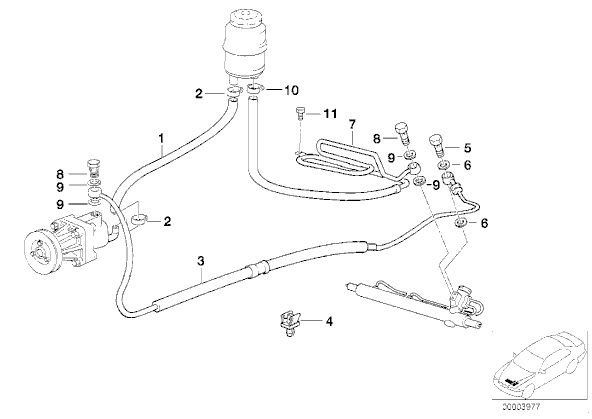

this is the pump i have, so i had to extend #3 but clamped it onto the non banjo had it on backwards...gave me no P/S. but this image solves my problem.
