Need Help with M50 Harness

[gath]

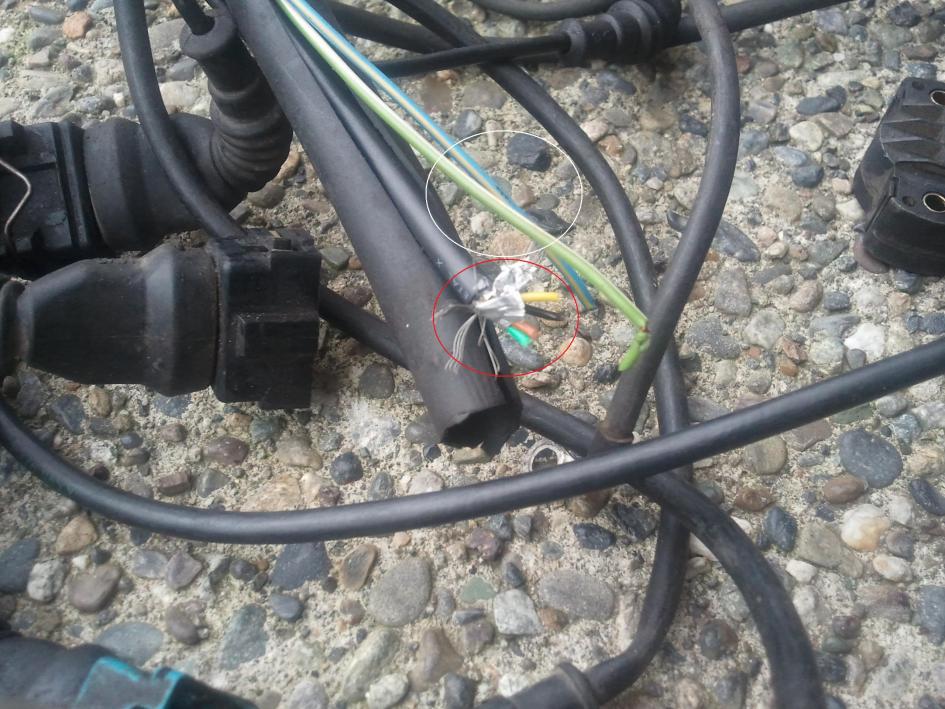

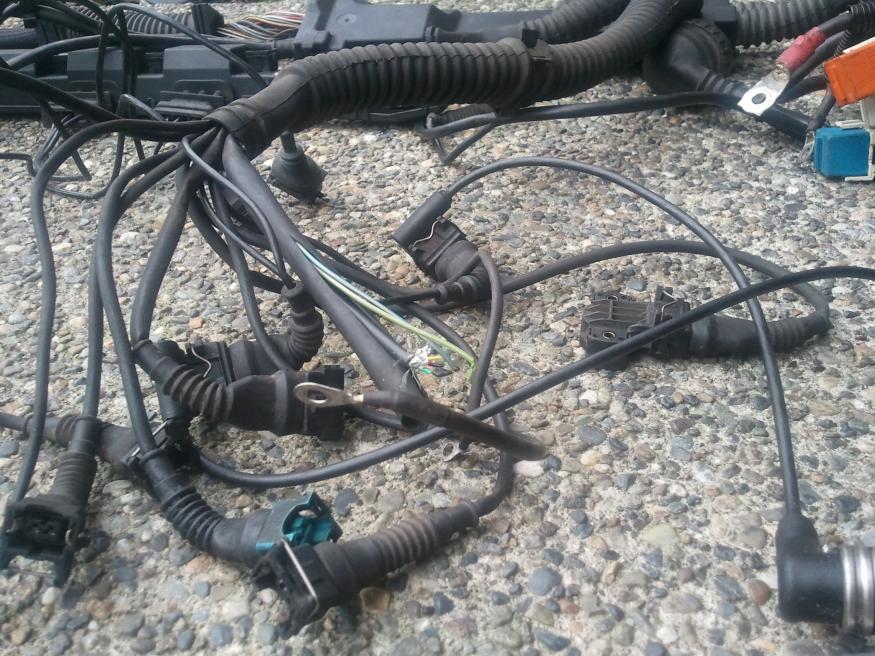

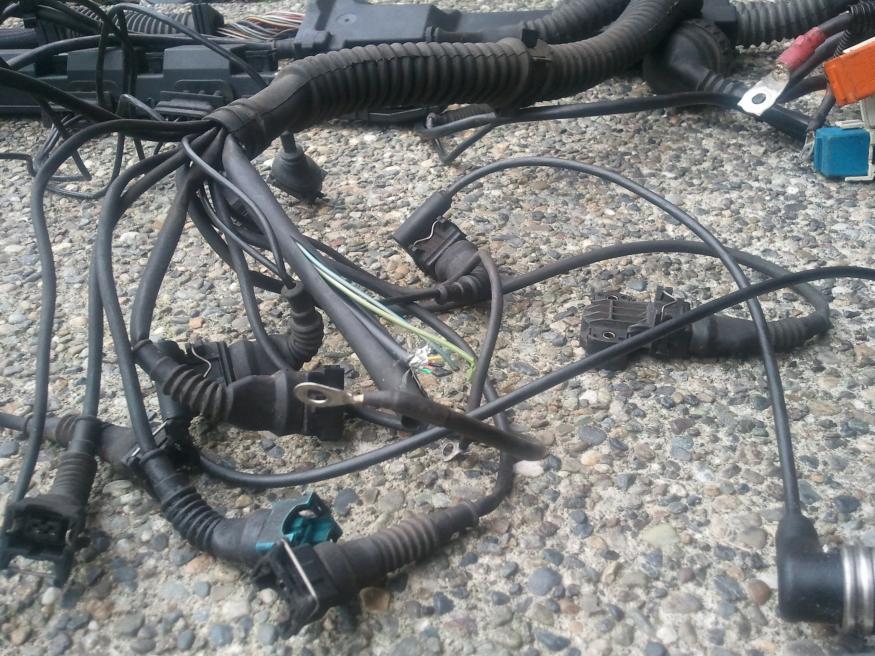

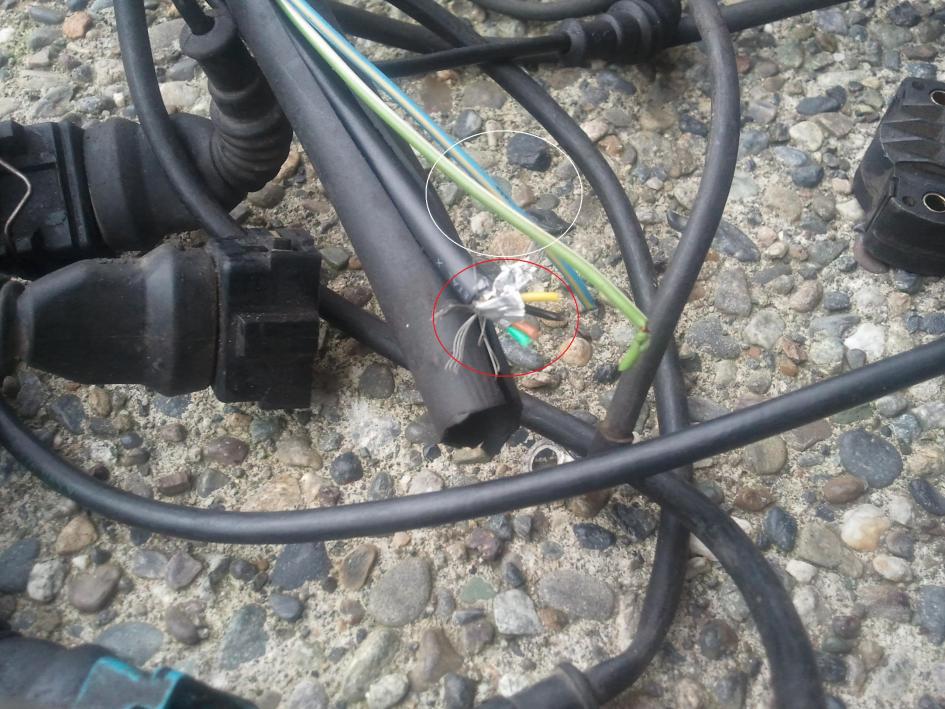

I got a harness that has one of the portions hacked and I need help with Identification of what cables this are as in the pics. I think the circled in red is the O2 sensor but i don't know about the other two circled in white. Help is much appreciated.

[gath]

Anybody?

[!kid]

I dont see the connector for your MAF sensor maybe thats it? i am talking about the bundle of four wires.

[gath]

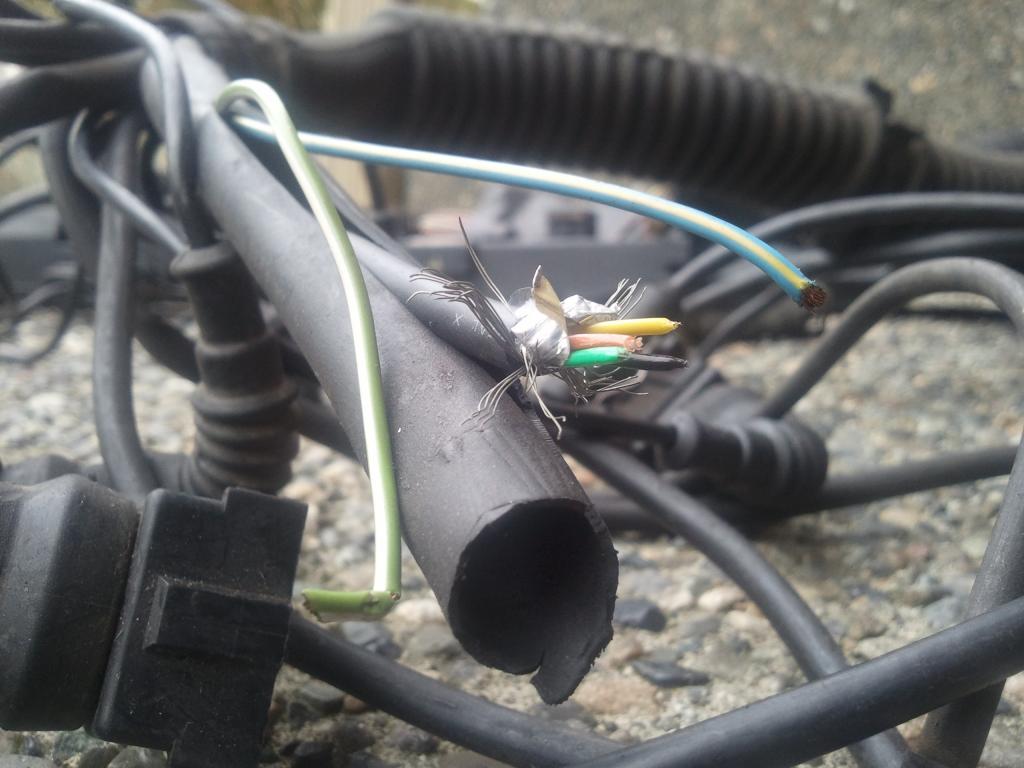

The MAF connector is there, I just didn't get it coz I was zooming in to give a better view. If you look closely you will see that this is one of the thickest insulation that goes under the vehicle to the cat. What about the two wires (blue/white and green/white), what are they for and what kind of connector do they have?

[gath]

??

[Gooch]

Reverse light switch, splice on the correct connector and you're good to go.

[gath]

Reverse light switch, splice on the correct connector and you're good to go.

so for the two wires, the blue and the green, I need to connect them to the reverse switch?

[gath]

Reverse light switch, splice on the correct connector and you're good to go.

Got it, Thanks. :D
