The OFFICIAL 24v Engine Bay Thread

[White325is]

how about some more photos of that air box setup and info?

[Yeee30]

how about some more photos of that air box setup and info?

(temp)
pretty much auto gooped a silicone hose to the airbox....
(future plan)
plastic weld an e36 airbox inlet to the e30 airbox

[phreshkid]

It works

[325isboosted]

my dirty engine bay after two years sitting under a tree, provided a title shows up it will be getting a serious scrub down soon

[Reckless_Havoc]

my dirty engine bay after two years sitting under a tree, provided a title shows up it will be getting a serious scrub down soon

Wow! That's scary dirty man. It looks like you're not far from being able to grow things in that engine bay.

[Jand3rson]

This thread is great. I just scrolled through the whole thing on a whim, and found pics of 4 or 5 different things that I needed to see. Keep posting, people! Work in progress shots are very valuable, too!

[jizo]

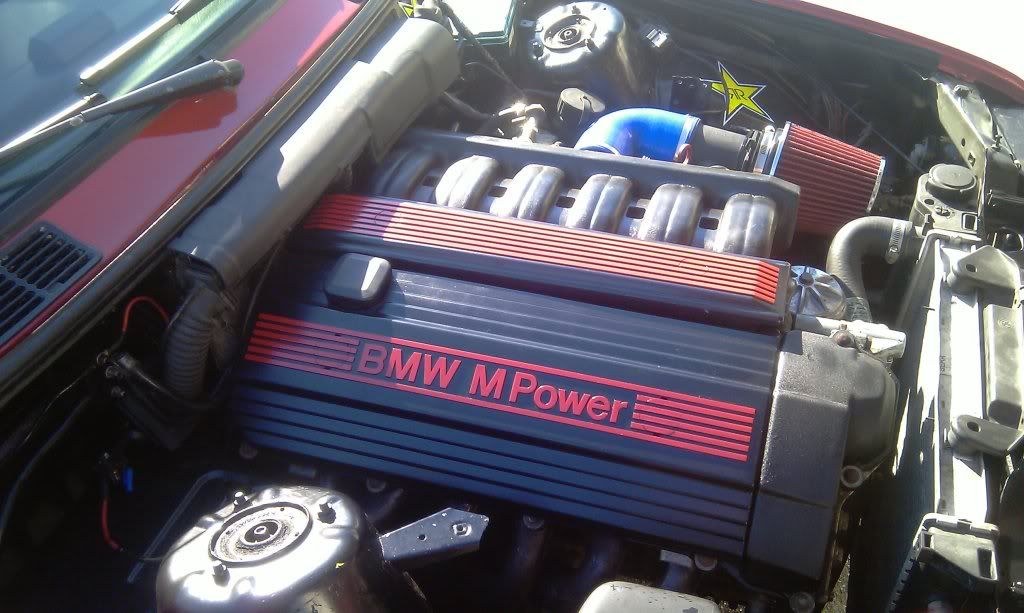

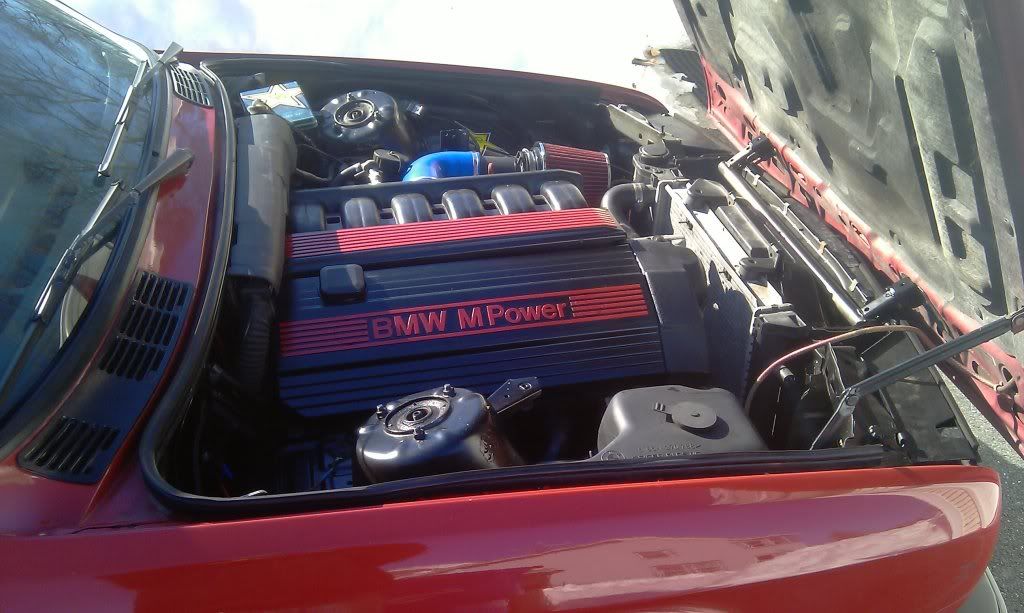

I still have some cleaning to do and I have to install my sparco bar. These are the pics for now....[IMG][/IMG][IMG][/IMG]

[Joe G]

[Aptyp]

I see some people with clutch fans and some without... how come?

[DREWHALL]

It's easier to run an electric fan in most cases. With the stock late model 325is radiator I didn't quite have room for a clutch fan, and didn't feel like messing with different combos to fit one. Just fit a pusher electric fan on the front of the rad. Cools just fine so far.


My ugly jawns, I need some more cloth tape to finish wrapping the harness and get the M3 covers.

[Ecrossdaily]

I go to this thread when im horny, instead of redtube. :puppy:

[JRKOUPE]

alt. cooling set up...

I must admit I just NOW learned the alt. has a cooling intake snorkel set up...

I always saw the gaping hole above my alt. and never knew what it was.


My swap was completed last yr...and has 3 track days......no issues.

After looking thru this thread....Why did some/mos
t of you choose NOT to run the intake set up?..


is it superfluous?...

http://www.realoem.com/bmw/showparts.do?model=BF93&mospid=47486&btnr=12_0391&hg=12&fg=23

[Matt-B]

I never see track and pro3 e30s use them, so Im not going to, daily driving.

[luckysnafu]

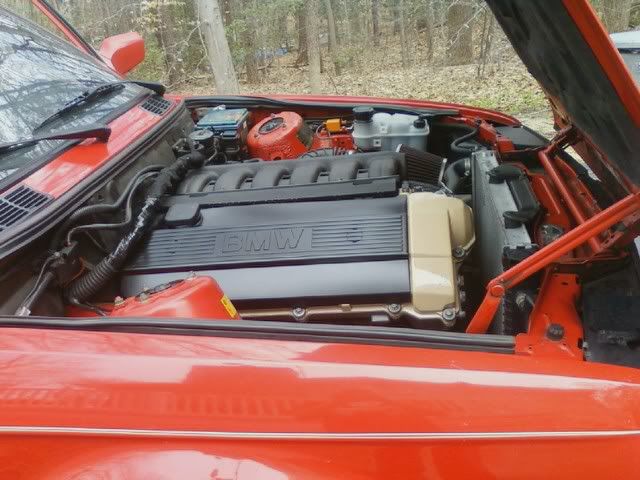

Here is my m52 in my 87 325e engine bay

[Jand3rson]

Any reason you didn't go with the M50 intake manifold?
