does anyone know where these wires belong. they are on the same side as the brake booster. there are 13 wires in one bundle. 5 red w/white stripe, 1 blue w/green, 2 blue, 1 green, 1 green w/purple stripe and 3 red.
-
-
did the diagnostic port somehow manage to get cut off?
I dont remember there being 5 power wires going to the diagnostic port when I took my harness apart-
but i remember all of the other colors.
Doing something M50 related? -> http://www.addissimo.com
On Myspace? ->http://groups.myspace.com/r3vlimited
BF2142 SN = BillyGoose -
the diagnostic port is on the other side. i bought the plug and play adapter for the s50/e30 conversion.Comment
-
wire harness s50

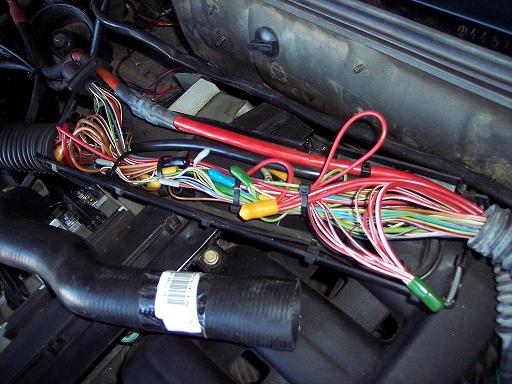

here is the pics of the wire harness. the wires i'm talking about is on the right side.Attached FilesComment
-
-
wire harness s50
another picAttached FilesComment
-
-
maybe starter and fuel railSold-87 325
BBS RK Wheels
H&R Cup Kit
E30 ///M3 Light up knob
Clutch Stop
///M Roadster FloorMats
Jim C Chip
91 318is
M50 Swap
Headers
UUC Underdrive pulleys
K&N 3in Cone
Jim C Chip
Soon H&R Coilovers
BBS RSComment
-
Was the car an automatic, it could be the tranny plug.Comment
-
Where are your Relay connectors? I have money those are them.
Anyways, if you bought the WHAD, give us a call.
NASA MidSouth TT Director / GTS2 #018
Mods: Coastal PS Fluid, 10w40 Oil
Future Mods: Bosch Micro-Edge Wiper Blades, Painter's Tape, Spark Plugs, Freezer for Nutty Buddys, Adam Nitti CD'sComment
-
Yeah, pretty sure thats the harness for the 3 engine relays- main, fuel pump, and o2 sensor.Originally posted by Skafrog'91 318is
sigpicComment
-
got a new wire harness for a 95 3 series. this one has a extra connector on it. the wire colors are white/blue and brown. in betleys electrical wiring diagram, it shows it as a solenoid valve (running losses). since the other harness didn't have it , do you think i will have any problems . should i just cap the off.Comment
