Pictures of My swap

[NZM50SWAP]

Finally I've got my picture's on my computer of my swap.

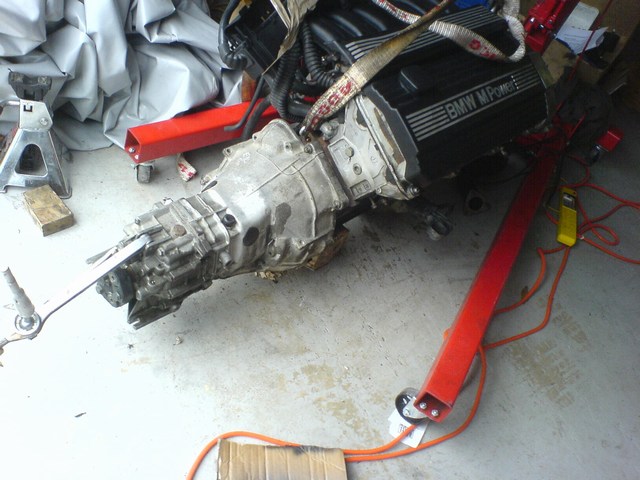

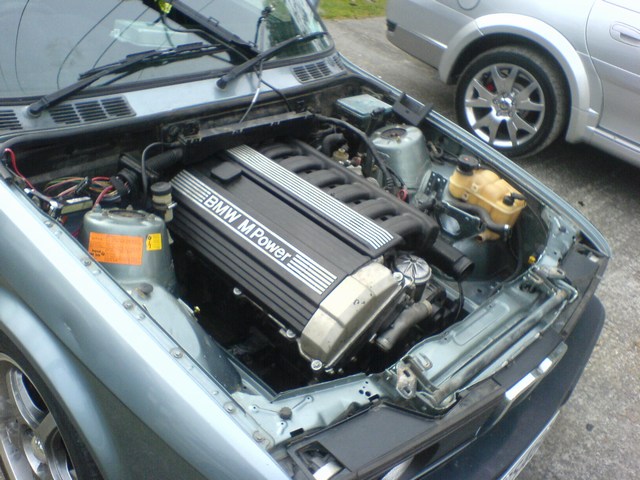

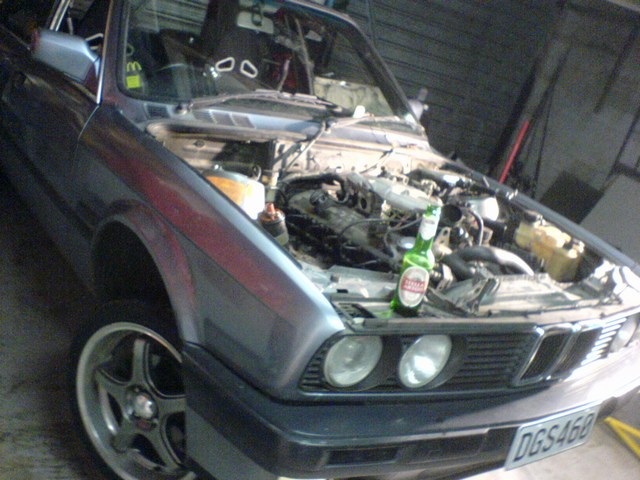

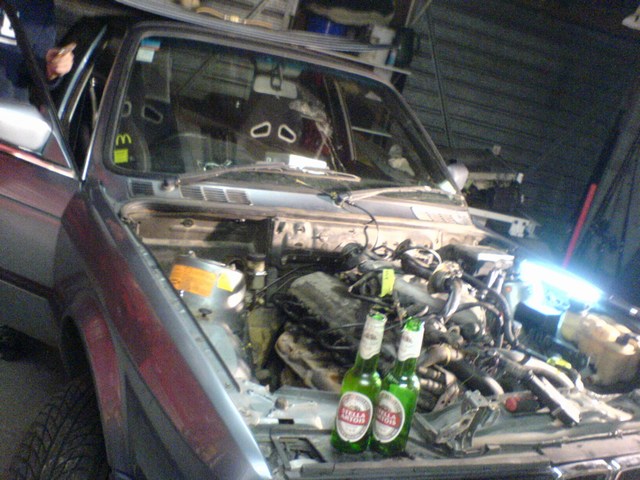

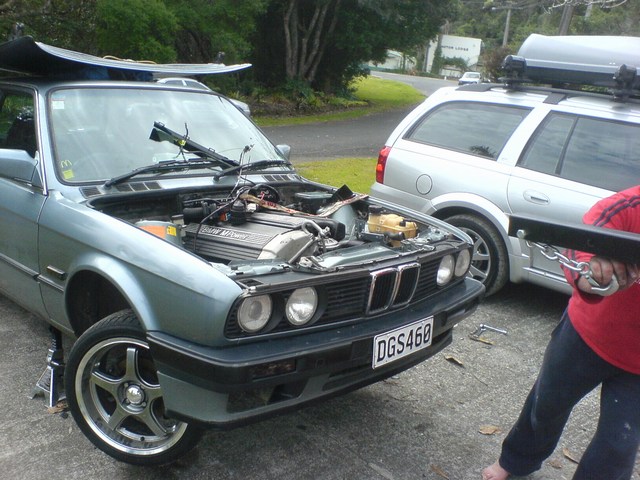

Motors in and I'm just hooking everthing up. Engineer is making up some extractor's and a gearbox corssmember at the moment so hopefully will be driving it next week.

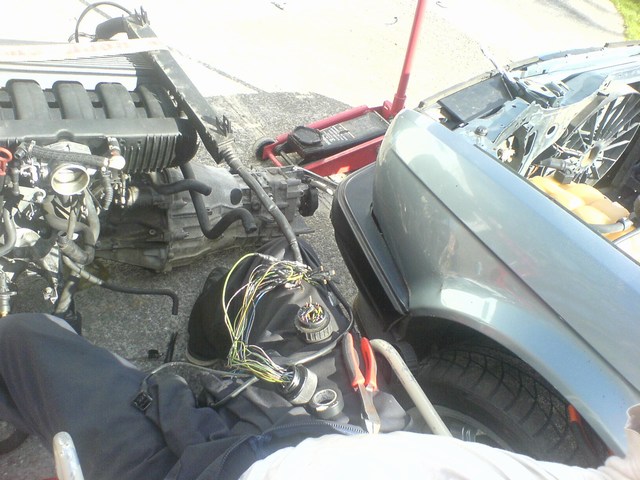

Thanks to everybody on r3v limited as this forum as being the main resource for information. Special thanks to addiss for his help and that wiring chart he made up. (saved me buying treehouse adaptor $749 NZD)

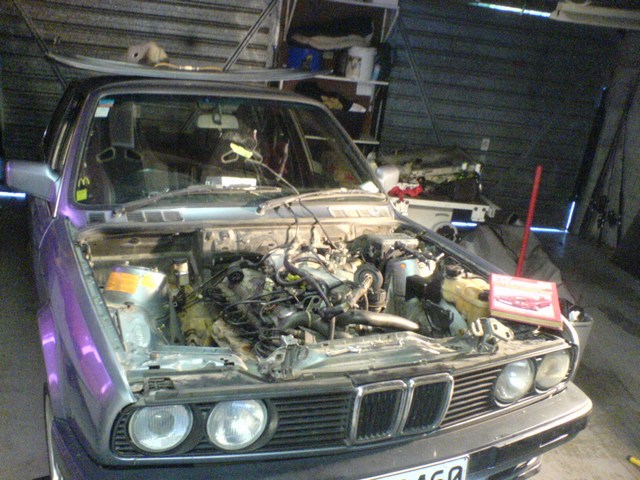

Here's what I out with. 89 sa 320i 5spd with broken cambelt

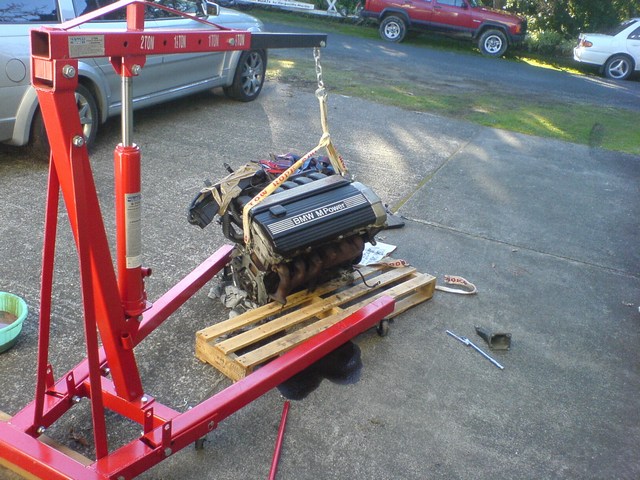

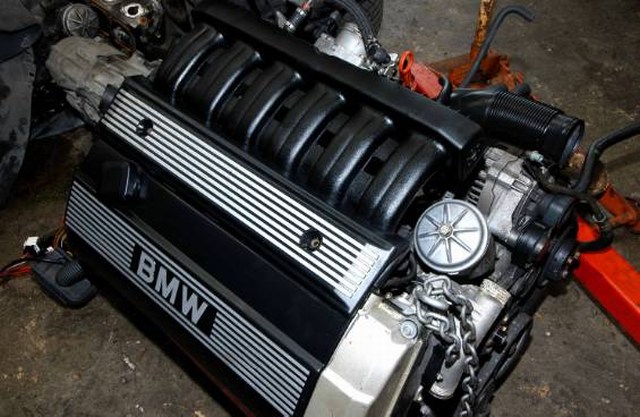

92 nonvanos 2.5ltr m50 out of e34 auto

[DEV0 E30]

Sweet. You'll enjoy it.

Love the McDonalds sticker.

[NZM50SWAP]

Continued

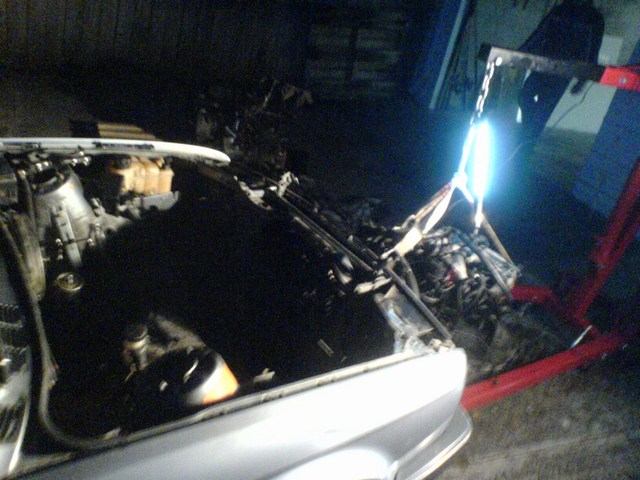

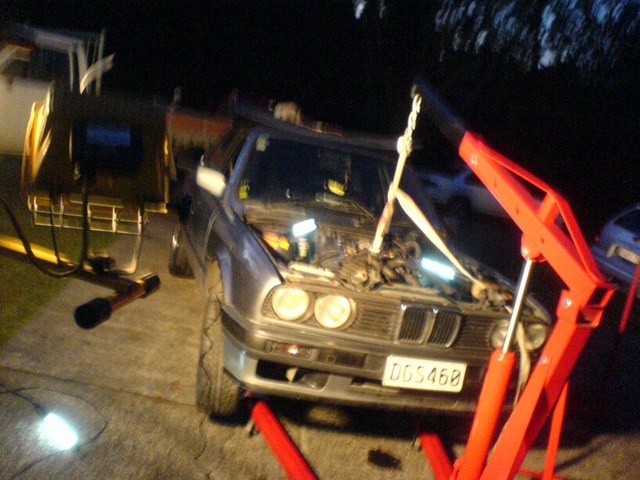

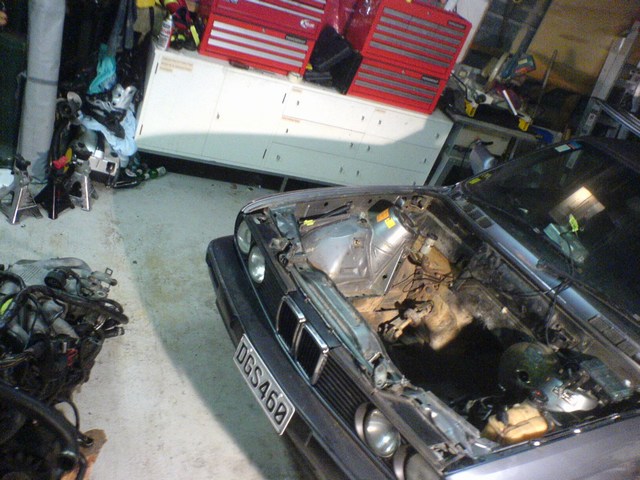

Running into the night we managed to get the m20 out with minimal fuss and damage.
The next morning I had a close inspection of the engine bay only to find chassis rust. FUCK! So had to do a bit of welding and pooing to fix that up.

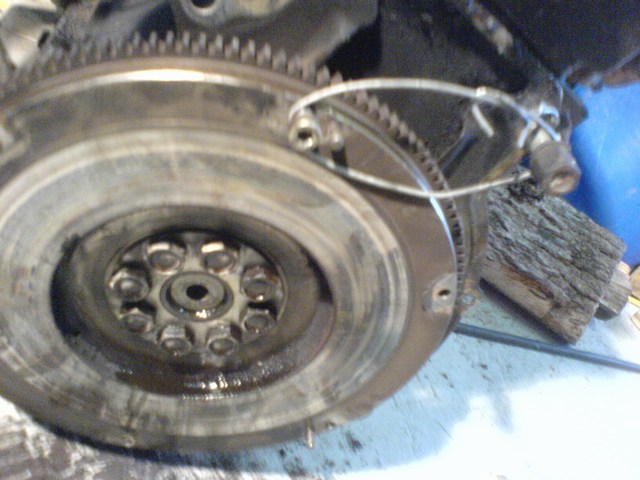

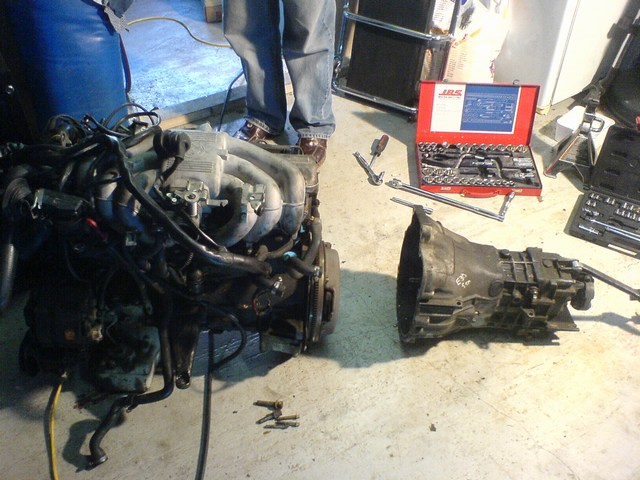

After m20 was out I began to remove the e30 brake booster and swap it for the allready prepared e21 booster with e30 rod attached. Then began pulling the trans off the m20.

[NZM50SWAP]

Fuck gotta go to work

More pic's to come

[FredK]

Stella. Mmmm, tasty skunk!

[NZM50SWAP]

Yeah bro and they Kick some ass.
Hahaha went fishing yesterday and drank box of 18.:drink: Went to hook the boat back up to mooring and fell str8t in the water. Gezus!!:crazy:

[NZM50SWAP]

On with the show....

Once again big thanks to addiss
With out your help that m50 would still just be sitting in my driveway

[NZM50SWAP]

Note in the last picture my mate without shoe's.
Lol us Kiwi's live in bare feet. Not the safest but who give's a fuck

[NZM50SWAP]

Thought I'd add a mugshot of myself so uz can see how fucking stunning I look..... :pimp:

[NZM50SWAP]

I've got some more picture's but they are all bigger than 100kb. Sorry

[DanThe]

Have you modded the manifolds (headers) yet?

I did mine myself if you need any tips, im also RHD and ive got an E36 rack in there too

[NZM50SWAP]

Not yet aye dan
I'm getting some made up from scratch using the cast manifolds as a template Got any pic's of your setup?? I'm running a non power steer facelift rack in mine

[DanThe]

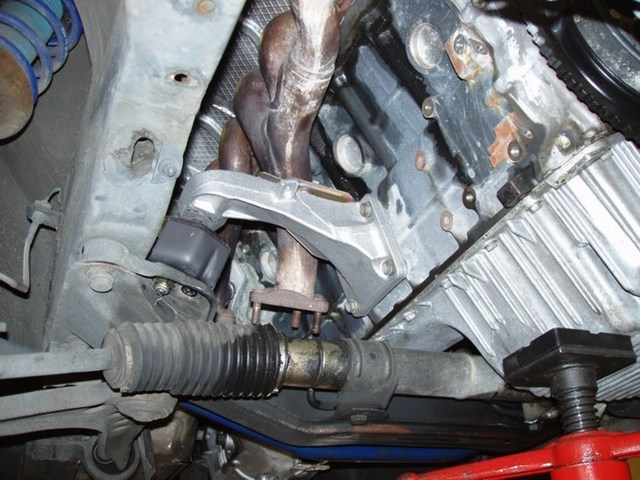

Combination of E36 328 tubular manifolds and E30 323 frontpipe

You should get an E36 rack ;)
Deffinatley worth the extra effort

[nes85er]

slick swap pics

[NZM50SWAP]

Not bad for a phone camera anyway. 2 mega pixal w800i sony ericson
