Name this sensor. obd2 328is

[ZekeTheSneak]

What is this sensor for? I have found every other sensor in the etms except this one, Neither pin is connected to the dme. 97 328is harness.


blue/green

green/white

My bet is exhaust flap?

[kronus]

reverse

[ZekeTheSneak]

The reverse switch on the tranny?

[kronus]

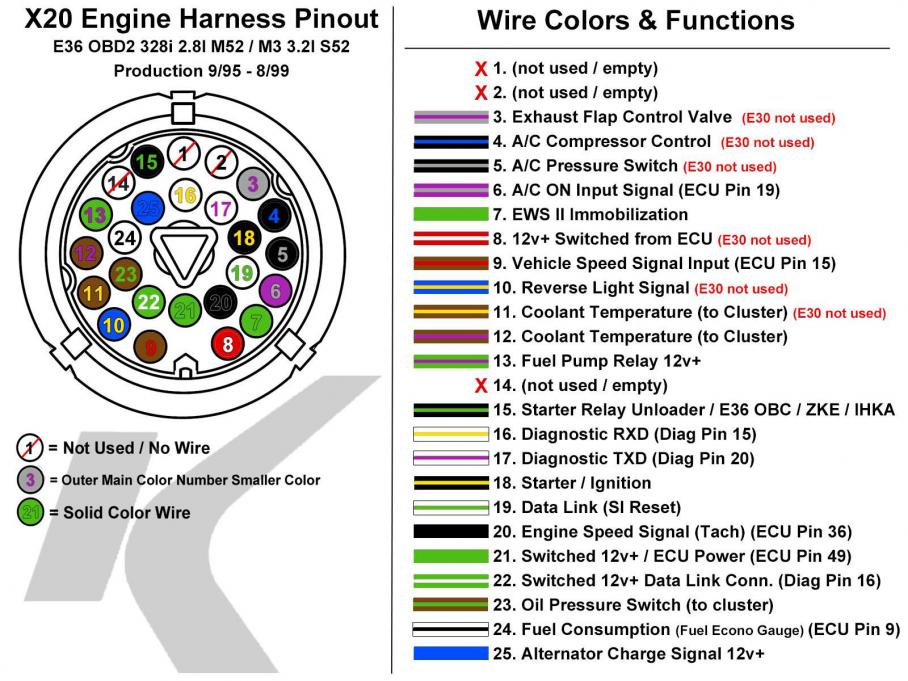

https://www.r3vlimited.com/board/attachment.php?attachmentid=113131&stc=1&d=1487603863

yeah

also that's definitely yellow, not green.

[ZekeTheSneak]

Thanks kronus, yah its hard to make out the color. Where did you get that pinout chart?
