ok still i hVE Hd no help for this, i have A 85 E with the square c101. i have figured out everything except for the fucking fuel pump. green violet to green violet i get, but on the i cars you guys are running your speed input black white pin 14 (e36) through your c101 connector. this wire i believe gives you your cranking signal. am i correct on this. on the e cars the speed input wire AND CRANKING SIGNAL CAME OFF THE FLY WHEEL IN THE BELL HOUSING ON THE M20. caps lock sorry. and also the e cars fuel pump only engages when the car is cranking thus i have to have a cranking signal. ive tried connecting the black white to the black c104 wire, tried connecting it to the back of the instrument cluster into the green plug , ive also tried connecting it to a two pin connector red brown and blue yellow. as any body done a swap into a e car with the square plug before on this site?????? please help me the car cranks over but no fuel....... also can a chip be installed upside down in the dme. i took my dinan chip out just to see if it could plug in if i flipped it and it can .
-
Last edited by nismoman; 12-16-2007, 02:16 PM.1985 s50b30, 91 front and rear valence, e30 m3 suspension, advance design coilovers, GC camber caster plates full solid bushings alla round, adjustable rear arms, ireland sways front and back, ireland big brake kit front and back , team dynamics wheels, 24lb injectore ltw fly, intake , headers, exhaust, so forth so on...... -
Please post your wiring diagram. I need to see what E30 pins you have associated with E36 pins (I hope you have determined wire color and function for each pin). -
For the love of god!!!! Paragraphs!!Comment
-
i will post up my stuff tongiht , thanks.
i am protesting paragraphs!
lol
1985 s50b30, 91 front and rear valence, e30 m3 suspension, advance design coilovers, GC camber caster plates full solid bushings alla round, adjustable rear arms, ireland sways front and back, ireland big brake kit front and back , team dynamics wheels, 24lb injectore ltw fly, intake , headers, exhaust, so forth so on......Comment
-
this is a pin out of used wires x20 to c101 then i will give a description of the wires not used. and then the c104 plug.
x20 94 m50 c101 85e square
24/blue alternator 1/blue
23/brown-grey oil pressure 16/black brown
21/green main power key switch on 15 and 10 connect to green for power and ignition
18/black yellow starter wire 8/black yellow
13/green violet fuel pump 7/green violet
12/brown violet coolant temp 4/brown violet (this may be wrong)havent gotten that far yet to see if its reading the right temp
wires i dont have plugged in are
x20
1
2
3
4black blue ac control
5blck grey ac pressure switch
6.violet gre climate control
7.green starter immobilizer
8.grey check engine light
9.brown red .says its a oil temp for a m3???
10.blu yellow backup light switch
11 brown yellow coolant switch /but you use your e30 one
15. green blck starter unloader
16 white yellow data link
17white violet ....... dont know couldnt find it. on wedophones
19.white green data link
22.green white back up light
c101
17 white blue/diagnostics
6. green yellow idle control valve for the m20.
does any body know what the dme all controls does it control when the fuel pump comes on? or am i correct in thinking that i gave to hook up a wire that will power up the relay on the fuel pump. or how does the fuel pump know when to come on and go off. ive been told that is handled by the speed input wire but why and where the hell does that tie into on my car,i have studied wedophone for hours but yet i can still not figure this out.
c104 plug under glove box get
pin 20 black tach signa
green red wire on c104 side gets power from main green wire.
and yellow white is supposedly the fuel consumption gauge.
i have also found that pin 14 x20 is the speed input wire, i do not knowwhere this wire connects to on my car,and i believe this is the cranking signal wire also that lets the fuel pump know that the car is cranking and the trip the relay. let me know if i am wrong.

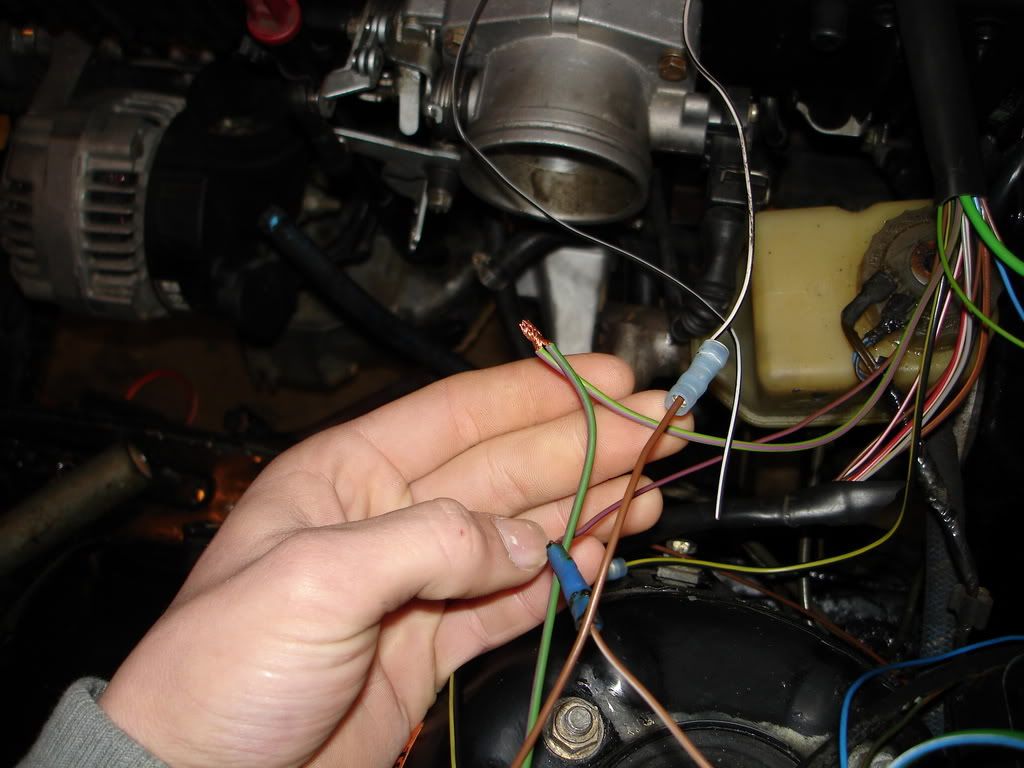

these are the wires i have left over
this is my c104 connector after i have been connecing and disconnecting wires
fuel pump
left over connector that i believe connected to the pick up signal off of the fly wheel when the m20 was in ,remember the pick ups for a e car come off of the fly wheel. i have also tried sticking my black white pin 14 x20 wire into both of these wires to see if they would show the fuel pump that the engine is spinning.this 2 pin connector brown red/blu yellow go to the junction fuse box. also the blck white wire is pin 14 speed input that is connected to a brown wire , this brown wire is just and extender so i can stick the black white wire pin 14 into different spots to see if i could get the fuel pump to come on.
Last edited by nismoman; 12-16-2007, 07:20 PM.1985 s50b30, 91 front and rear valence, e30 m3 suspension, advance design coilovers, GC camber caster plates full solid bushings alla round, adjustable rear arms, ireland sways front and back, ireland big brake kit front and back , team dynamics wheels, 24lb injectore ltw fly, intake , headers, exhaust, so forth so on......Comment
-
Where did you get that copy of the wiring diagram? Precision Performance Services hasn't sold an M50/E30 swap kit to anyone in Lewisville.
Comment
-
ought oh..sigpicComment
-
-
..Last edited by nismoman; 12-16-2007, 07:41 PM.1985 s50b30, 91 front and rear valence, e30 m3 suspension, advance design coilovers, GC camber caster plates full solid bushings alla round, adjustable rear arms, ireland sways front and back, ireland big brake kit front and back , team dynamics wheels, 24lb injectore ltw fly, intake , headers, exhaust, so forth so on......Comment
-
Drama ITT.
Stu, if this guy is ripping you off, let us know. I know what the pictures and that last post _used_ to say.Comment
-
i am not ripping any one off, this is the reason i have covered up what the sheet says because i did not even realize that it was from his company, i am not trying to steal nor give away any ones info , the sheet is not even for my car its for a i car so it doesnt help me any which is why i have posted this post, i do not meen to offend any one and i am working on getting in touch with you stu. to clear up any problems. i am very sorry and very careless , i now know who you are and understand that it would not be fair nor right for me to have your schematic in my pictures.1985 s50b30, 91 front and rear valence, e30 m3 suspension, advance design coilovers, GC camber caster plates full solid bushings alla round, adjustable rear arms, ireland sways front and back, ireland big brake kit front and back , team dynamics wheels, 24lb injectore ltw fly, intake , headers, exhaust, so forth so on......Comment
-
It's not a big deal man, I just wanted to know where the sheet came from. PM me if you want to get in touch.Originally posted by nismoman View Post
StuComment
-
pmed you stu1985 s50b30, 91 front and rear valence, e30 m3 suspension, advance design coilovers, GC camber caster plates full solid bushings alla round, adjustable rear arms, ireland sways front and back, ireland big brake kit front and back , team dynamics wheels, 24lb injectore ltw fly, intake , headers, exhaust, so forth so on......Comment
-
figured it out,and the info will never be shared bwahHHhAAAAA1985 s50b30, 91 front and rear valence, e30 m3 suspension, advance design coilovers, GC camber caster plates full solid bushings alla round, adjustable rear arms, ireland sways front and back, ireland big brake kit front and back , team dynamics wheels, 24lb injectore ltw fly, intake , headers, exhaust, so forth so on......Comment
-
Its not our fault you suck at searching.Comment
