Where do these go??

[mck]

Ok so Ive got the S50B30 euro motor in and wired now i am doing the plumbing for it, but am a bit stuck. Just wondering where all these go? If anyone has pics of it all attached that would be awsome.



brown plug? the black broken plug(yellow/blue wire, green/yellow wire)


the top comes from the intake plenum, where does ther bottom go?




the red comes from the front, the blue comes from the back of the motor, I know there water but where do they go? I think they go into the firewall heater pipes thats where I connected one?

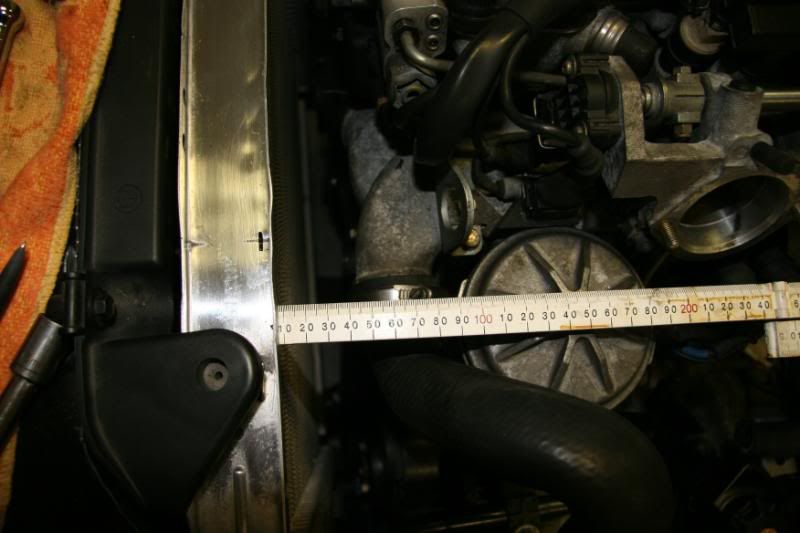

Also does this distance look a bit close, ive noticed some people can run a fan between here, Ive got no chance.

[Mr.SWISS]

the blue and green wires go to the reverse light switch on the trans. the red line hose you are miss hook up like you have it drawn, but the hose has three openings and the other goes to the coolant reservoir. The other heater hose hooks up to the back of the head. I forgot which goes to what heater core flange. I would check my E30 but I sellz it.... :(

[ZiMMie]

nice motor im jelous.. :)

[Mike B.]

The line from the plenum is from the vapor recovery valve.

I hope you realize that the brake booster you have installed won't fit with the Euro intake...
