I have been searching and reading a lot so I think I have this just about all figured out.
I wanted to post and see if I have everything right or if I am missing something
I am dropping the m50 in my 318is
This is what I already have or will be getting....
complete e34 w/acces, wiring, ecu
E36 PS pump and reservoir
PS lines from the e30
e34 throttle cable
downpipe from e34
240 trans from my 318is w/ stock mount
m20 flywheel
m20 HD PP
m20 6 puck sprung cluch disc from IE
euro 323 throwout bearing
e36 325 driveshaft with e30 CSB
e30 325 shifter carrier
e30 325 shifter rod
e36 engine mounting arms
e28 535 motor mounts (do I need a spacer for this?)
e32 735 booster with MC
m42 radiator (replace fan switch with lower temp switch)
m50 radiator lines
no mech fan
c101 from a 318is
x20 from the e34 chassis
3.73 LSD
AC lines...either I will have them made or buy from zionsville

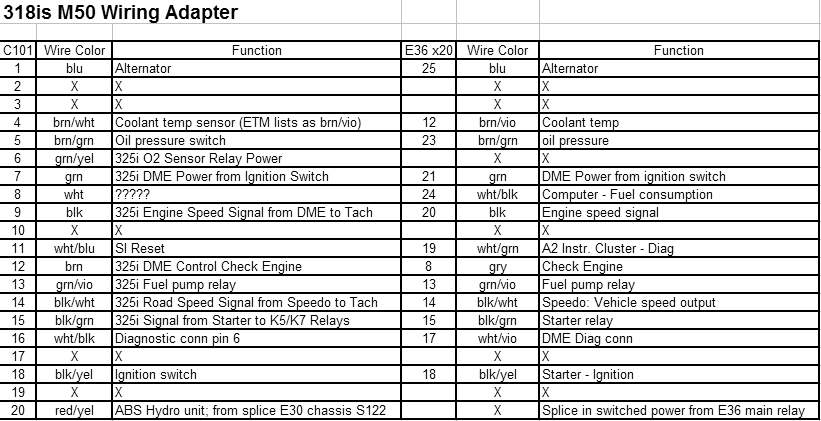

Is the attached wiring diagram correct for the swap? How should I pull power for the ABS? Just tap into the main relay? Or something off the fuse box?
Do you see anything that I am missing or anything I should look out for when swapping?
I wanted to post and see if I have everything right or if I am missing something
I am dropping the m50 in my 318is
This is what I already have or will be getting....
complete e34 w/acces, wiring, ecu
E36 PS pump and reservoir
PS lines from the e30
e34 throttle cable
downpipe from e34
240 trans from my 318is w/ stock mount
m20 flywheel
m20 HD PP
m20 6 puck sprung cluch disc from IE
euro 323 throwout bearing
e36 325 driveshaft with e30 CSB
e30 325 shifter carrier
e30 325 shifter rod
e36 engine mounting arms
e28 535 motor mounts (do I need a spacer for this?)
e32 735 booster with MC
m42 radiator (replace fan switch with lower temp switch)
m50 radiator lines
no mech fan
c101 from a 318is
x20 from the e34 chassis
3.73 LSD
AC lines...either I will have them made or buy from zionsville
Is the attached wiring diagram correct for the swap? How should I pull power for the ABS? Just tap into the main relay? Or something off the fuse box?
Do you see anything that I am missing or anything I should look out for when swapping?
