    Cam sensor

    How many ohms should I have at the cam sensors' plug?

    #2
    Originally posted by Jay325 View Post
    How many ohms should I have at the cam sensors' plug?
    I got about 1238 ohms on my nicely running 92 525iT when I was comparing against my not so nicely running M50 swap. I think the values in the Bentley are correct for the cam sensor, not the crank sensor as listed. 540 +/- 10% seems right for the crank sensor.

    Also, it's easier to check the cam and crank sensors from the ECU plug as that will also verify that the wiring between is intact. I think pins 16 and 44 are for the cam sensor and 67, 68 are the crank sensor pins.
    Tim
    Indianapolis, IN, USA
    88 325is (M50)
    92 525iT (5 speed)
    98 328is
    2011 535is
    69 Fiat Spider
    68 Fiat Spider (122nd chassis built for the US)

    Comment


      #3
      Thank you for the info.

      Comment


        #4
        Originally posted by 88E30M50 View Post
        I got about 1238 ohms on my nicely running 92 525iT when I was comparing against my not so nicely running M50 swap. I think the values in the Bentley are correct for the cam sensor, not the crank sensor as listed. 540 +/- 10% seems right for the crank sensor.

        Also, it's easier to check the cam and crank sensors from the ECU plug as that will also verify that the wiring between is intact. I think pins 16 and 44 are for the cam sensor and 67, 68 are the crank sensor pins.
        how would one test the sensor this way? doesn't the sensor need power?
        IG: deniso_nsi Leave me feedback here

        Comment


          #5
          Originally posted by dude8383 View Post
          how would one test the sensor this way? doesn't the sensor need power?
          ohm meters

          and not with the enigne running anyway
          1989 cirrisblau-metallic 325i

          Comment


            #6

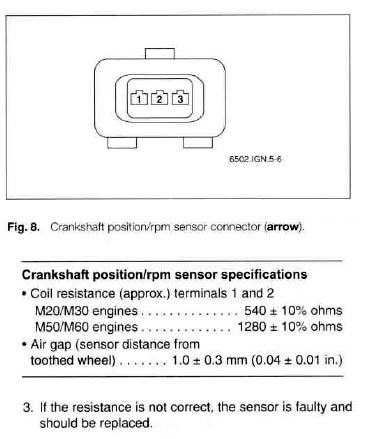

            According to E34 AND E36 Bentley it shows the following, measure on pins 1 to 2.
            Attached Files
