    Need some suggestions, T-case leaking & daliy driver

    Hey iXers, I need some help here.

    IX with 123k and the transfer case is leaking ATF. Recently it's turned into a puddle, I just got back from a 1070 mile roadtrip though. I'm going to keep checking the level and filling it. With school going on and the car down. I need a car everyday, that car happens to be my iX. So either way I'm going to have to rebuild it, not sure if I can do it in a weekend. Thought about buying another daliy. Advice is appreciated! I'm not working but still have to get to school and events. :-? If you have experience rebuilding one tips are always good. So yeah let me know if you have any questions about me writing this in panic. Oh and I was just planning on getting seals/ gaskets but if there's anything else i should replace besides the mount and guibo lmk.
    Build Thread
    https://www.r3vlimited.com/board/sho...d.php?t=419655
    Parts Thread
    https://www.r3vlimited.com/board/sho...d.php?t=408302

    #2
    Where is it leaking exactly? Front driveshaft seal? Read driveshaft seal? Between the cases?


    Sent from my iPhone using Tapatalk

    Comment


      #3
      I believe it's the front driveshaft seal but having pulled the driveshaft, kinda looks like there was some grease coming out with it. Possibly between the cases but most likely front seal..
      Build Thread
      https://www.r3vlimited.com/board/sho...d.php?t=419655
      Parts Thread
      https://www.r3vlimited.com/board/sho...d.php?t=408302

      Comment


        #4
        Yes need more info on where leak is, if ouput seals they can be replaced without removal. Don't assume it needs a rebuild just for a leak

        Sent from my SM-G360V using Tapatalk
        Angus
        88 E30M3 X2
        89 325IX
        92 R100GS/PD
        :)

        Comment


          #5
          Ok let me get it up in the air. How can I tell if it's a output seal leaking on the front driveshaft end? Fluids getting flung up on the tunnel and some under the DS floor pan. I'll try and get some pictures uploaded.
          Build Thread
          https://www.r3vlimited.com/board/sho...d.php?t=419655
          Parts Thread
          https://www.r3vlimited.com/board/sho...d.php?t=408302

          Comment


            #6
            If its getting flung it a good possibility it's a driveshaft doing the flinging. You can pull the plastic protection cone back on the front shaft and look at seals. Maybe clean the area and run it to see if leaking. Rear shaft output seal usually just leaks down back of case

            Sent from my SM-G360V using Tapatalk
            Angus
            88 E30M3 X2
            89 325IX
            92 R100GS/PD
            :)

            Comment


              #7
              Yeah it's certainly leaking from that seal. Apparently the atf removes undercoating pretty easy too
              Attached Files
              Build Thread
              https://www.r3vlimited.com/board/sho...d.php?t=419655
              Parts Thread
              https://www.r3vlimited.com/board/sho...d.php?t=408302

              Comment

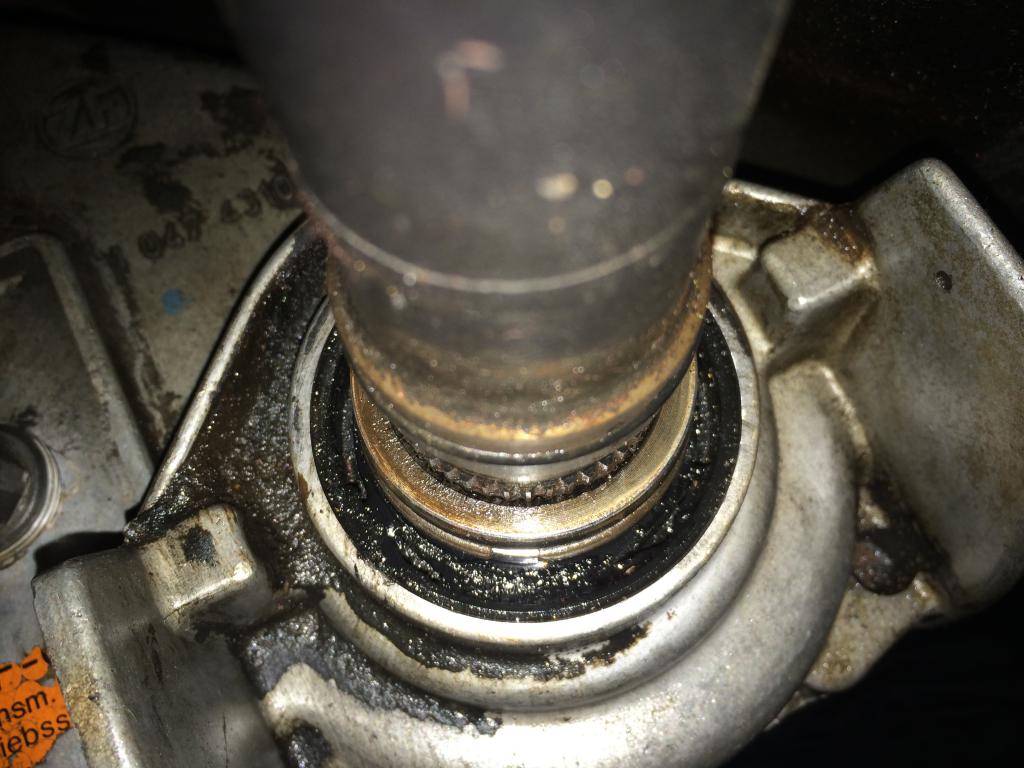

                #8
                Here's one with the cover off. I thought it was the intermediate seal between the cases at first but I guess not, any tips for the removal/ install besides removing driveshaft and the ATF. Lol
                Attached Files
                Build Thread
                https://www.r3vlimited.com/board/sho...d.php?t=419655
                Parts Thread
                https://www.r3vlimited.com/board/sho...d.php?t=408302

                Comment


                  #9
                  There are two seals there first is in backwards with the tension spring removed (its a dust shield) second is in normally and is the true seal. Be very carefull if removing with pick type tools so as not to scratch the sealing surface(I actually drove two sheetrock screws into the seals 180deg apart and used those to pull the seals out), also tape over the snap ring groove so as not to cut new seals when installing
                  Carefully measure seal depths to be sure new seals are installed at same depth.
                  Install carefully/squarely with deep socket.

                  Sent from my SM-G360V using Tapatalk
                  Angus
                  88 E30M3 X2
                  89 325IX
                  92 R100GS/PD
                  :)

                  Comment

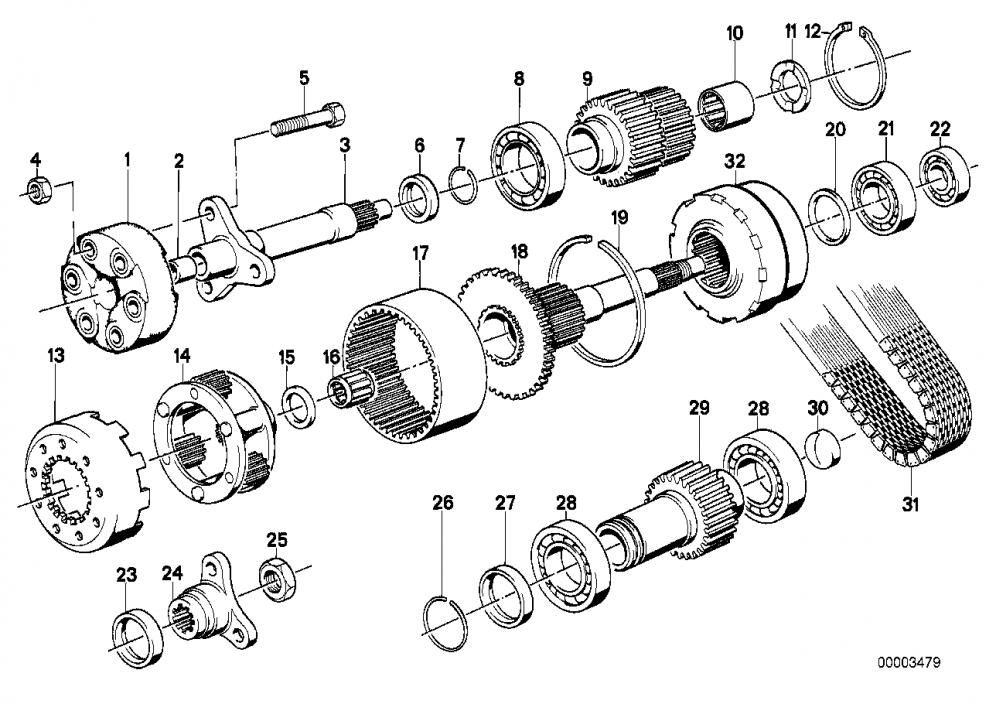

                    #10
                    Thank you Angus for the great suggestions!
                    27211224632 #6 on real oem. Looks like the right part.
                    This is the seal part #?
                    Didn't see the dust sheild. Is reusing it ok?
                    Also I just checked and its backordered!
                    Attached Files
                    Last edited by Chrisbike; 08-14-2016, 10:01 PM.
                    Build Thread
                    https://www.r3vlimited.com/board/sho...d.php?t=419655
                    Parts Thread
                    https://www.r3vlimited.com/board/sho...d.php?t=408302

                    Comment

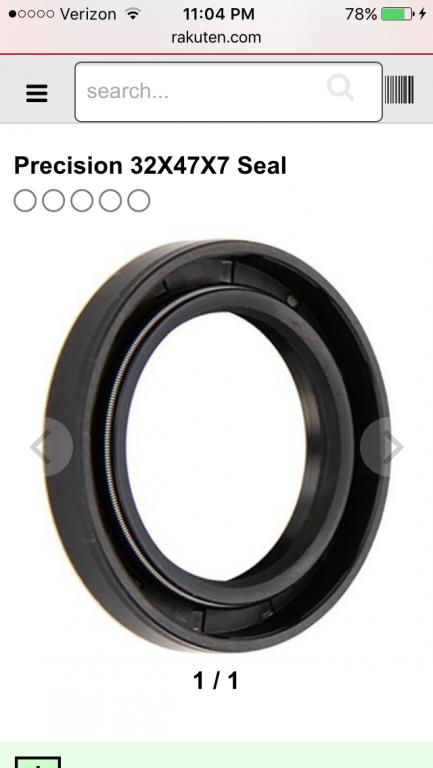

                      #11
                      I found one that might work though. It's a precision shaft seal, same dimensions so I don't see why it wouldn't work.
                      Attached Files
                      Build Thread
                      https://www.r3vlimited.com/board/sho...d.php?t=419655
                      Parts Thread
                      https://www.r3vlimited.com/board/sho...d.php?t=408302

                      Comment


                        #12
                        Compared to the OE one which is probably NLA.
                        Attached Files
                        Last edited by Chrisbike; 08-14-2016, 10:14 PM.
                        Build Thread
                        https://www.r3vlimited.com/board/sho...d.php?t=419655
                        Parts Thread
                        https://www.r3vlimited.com/board/sho...d.php?t=408302

                        Comment


                          #13
                          New ones are not NLA from BMW. You just order quantity of 2. If you notice in the catalog it shows qty 2. Like spdracrm3 said above the outer most one goes on backwards with the spring removed.


                          Sent from my iPhone using Tapatalk

                          Comment

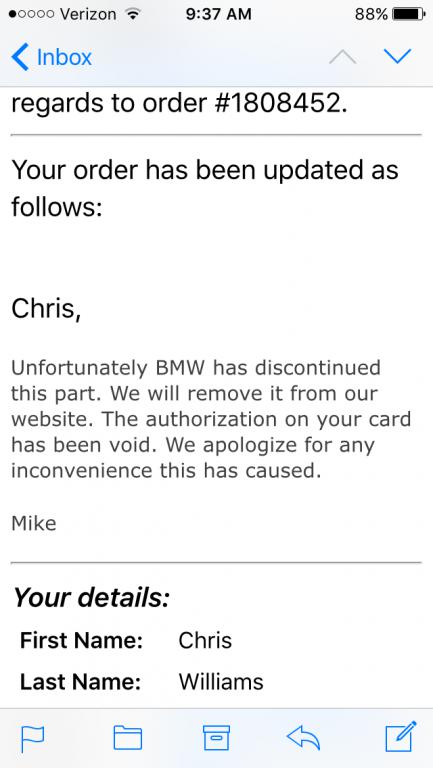

                            #14
                            Ok, I ordered two from BMW South Atlanta and they sent me this. Ecs even says its NLA, turnermotorsport says its Backordered..
                            Attached Files
                            Last edited by Chrisbike; 08-15-2016, 08:39 AM.
                            Build Thread
                            https://www.r3vlimited.com/board/sho...d.php?t=419655
                            Parts Thread
                            https://www.r3vlimited.com/board/sho...d.php?t=408302

                            Comment


                              #15
                              #27 is the part you want two of. #6 is the rear driveshaft output seal

                              Sent from my SM-G360V using Tapatalk
                              Angus
                              88 E30M3 X2
                              89 325IX
                              92 R100GS/PD
                              :)
