    Sill Seam Corrosion

    My son sent me this pic of his driver's side sill, showing some corrosion at a panel joint under the door.

    Click image for larger version

Name:	IMG_0336.jpg
Views:	59
Size:	73.9 KB
ID:	10055650

    I'd like to understand this seam better. Are the sills covered with a sort of vinyl coating? At one time I cleaned them up and sprayed with SEM trim black.

    I had to zoom in on this pic to even find the seam, they're always too dark in most pics.

    Click image for larger version

Name:	L sill copy.jpg
Views:	45
Size:	59.2 KB
ID:	10055651

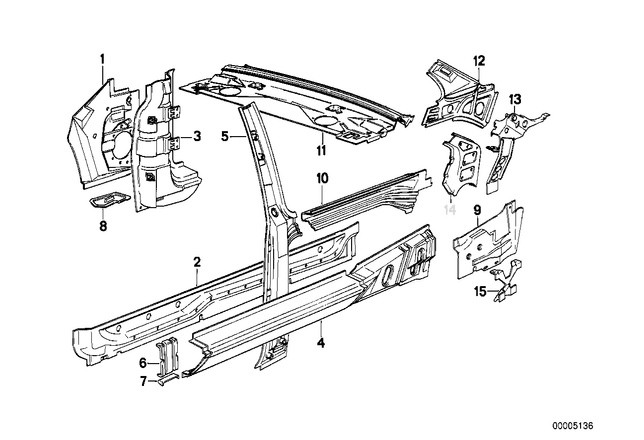

    If you look at the panel construction on the sides, #4 "cover" is the sill piece and looks to go full length all the way to the rear wheel opening (?).
    So what's the non-sill-shaped bit at the rear (right in drawing) end? Is the rear quarter panel installed over the top of that area?
    Click image for larger version

Name:	E30 side structure.jpg
Views:	45
Size:	61.9 KB
ID:	10055652
    Click image for larger version

Name:	E30 sill cover left.jpg
Views:	46
Size:	65.4 KB
ID:	10055653

    And is the forward end of this piece the joint at the front fender? So where is this seam under the door? What's behind it?

    Thanks -
