Tire jack, wheel chock etc, placement in trunk. How and where?

[mcskibadee1]

I have asked in a couple different places and posted pics and a lot of people don't seem to know what pieces go where.

If anyone else has input on the left side of the trunk please let us know.

This pic does a good job but I am uncertain the black box piece is in the correct spot.


Here are the items and numbers for reference.

http://www.realoem.com/bmw/showparts.do?model=1111&mospid=47263&btnr=71_0057&hg=71&fg=05

[mcskibadee1]

This is the piece that I am unsure about.

Did this piece hold fuses and how does it mount?

[vpilarrt]

That cover is in the correct location. Its just to cover the jack holder pivot point. I always stick the flat extension on the wheel chock under the jack foot so it doesn't rattle around back there.

[E30_GT]

It's looks like the cover (10) for the piece (3) who knows????


Sent from my iPhone using Tapatalk

[mcskibadee1]

That cover is in the correct location. Its just to cover the jack holder pivot point. I always stick the flat extension on the wheel chock under the jack foot so it doesn't rattle around back there.

Thanks, got it!

[sna77]

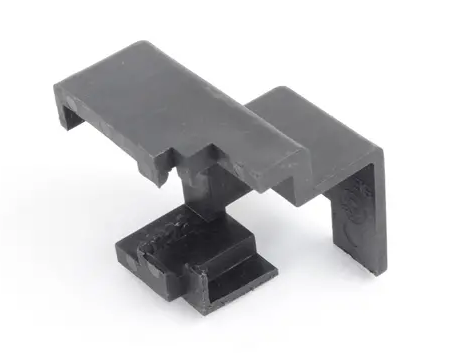

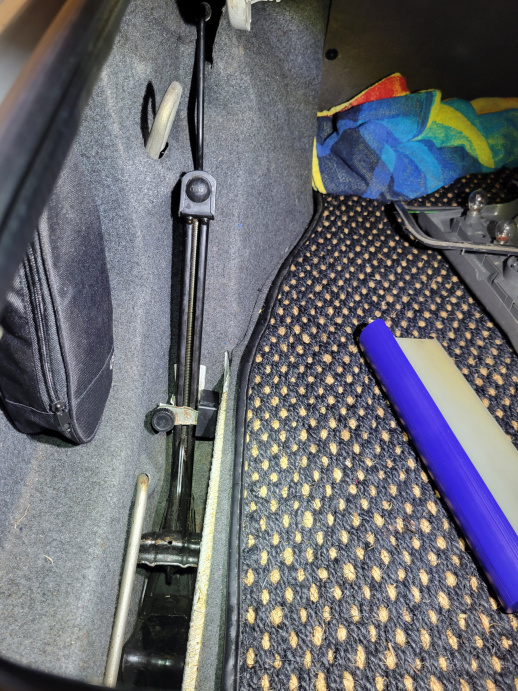

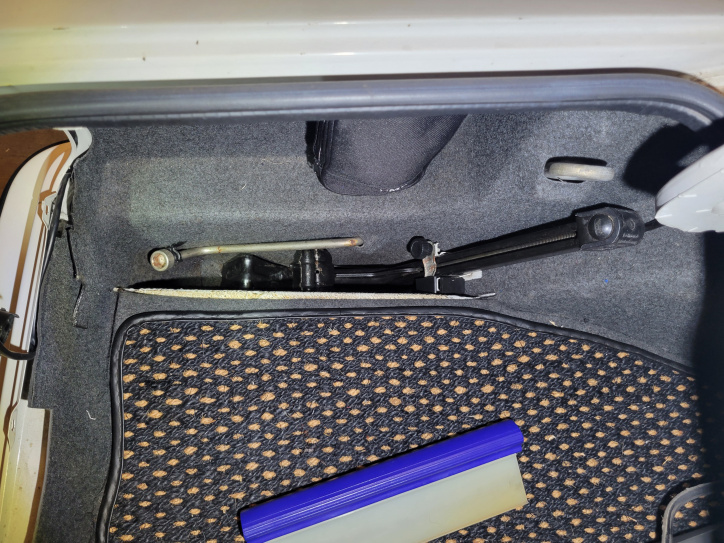

Updating an old thread because I spent forever trying to figure out how to get the cover to snap onto my 92 convertible. The convertible cover, part # 51711961889 is like jenga piece trying to fit on. Mine actually attaches like this, not like the original picture in the thread:

[sna77]

[bleblanc03]

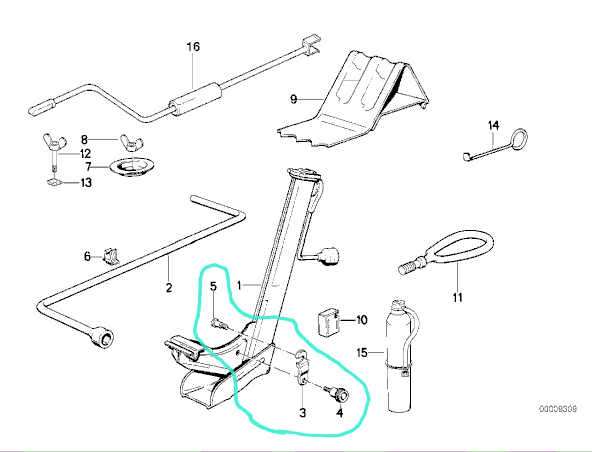

Does anyone understand what's going on here (in teal)?

This seems very different from how my car and the others shared in this thread are configured.
