Does anyone have a pic of the brake light curcuit that is suppossedly by the antana in the trunk. I have a 88 cabrio and I cant find it a re they not located here on my car. I need to fix my check panel issue.
-
-
Closing SOON!"LAST CHANCE FOR G.A.S." DEAL IS ON NOW
Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398
Thanks for 10 years of fun! -
after all the post I've read on this subject how did I know it would be you to reply.... Thanks I believe I found someone who says it's under the rear driver side trim panel in the interior I'll find out when I get home. your posts have answered most my questions already and will probly answer many more you the manComment
-
Yeah, you can say that AFTER your shit is fixed.
Didja download the manual?
Closing SOON!"LAST CHANCE FOR G.A.S." DEAL IS ON NOW
Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398
Thanks for 10 years of fun!Comment
-
Yes I did download the manual but wife has been in the hospital and that means I'm full time daddy day care for a while. If cleanong it up and re attatching everything doesn't solve the issue I'm not sure but it looks as though I can bypass this all together can anyone confirm this. May be another week before I can get to it.Comment
-
Are your brake lights working?
Wifey gonna be well soon or is this more involved?
Closing SOON!"LAST CHANCE FOR G.A.S." DEAL IS ON NOW
Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398
Thanks for 10 years of fun!Comment
-
orthroscopic surgery for athletic no danger she's just layed up for a couple weeks. Brake lights and all other lights work just fine. Just tired of the check panel always being lit and the flashing check in the dash staying on.Comment
-
Hmmm, can this be a bad contact issue in the brake light socket? bad grounds some times do this 'false negative' thing, where the CP says the light failed, but it works. It only has to fail for a millisecond to set off the panel.
Isn't there a way to cancel the flashing 'Check' with a button? Don't know E30s as well as I do my E28.
Here's a quick and easy way to verify brake lights working- back up to a store front with glass windows, look in your rear view, then step on the brake pedal. Glass window acts as a mirror for verification. Just one way to confirm the flashing 'check' is bogus.
What year is your car? it looks to me like the late version tails were more reliable as to ground contacts.
AndyAndy says "Be Seen, and Not Hurt!"
Lighting Upgrades front and back for 2002, E3, E9, E10, E12, E21, E23, E24, E28, E30, E32, E36, E39, and more.
Tail Light Improvements keep them off your tail.
Headlight protection saves headlights from breakage.Comment
-
Andy, all of the above is true.
On the E30 and E28, often the check panel diodes are overlooked, so I harp on them heavily. CRC is your friend!
Luke
Closing SOON!"LAST CHANCE FOR G.A.S." DEAL IS ON NOW
Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398
Thanks for 10 years of fun!Comment
-
88 cabby it has the early model tails I have completely taken apart the backing panels sanded scuffed and cleaned all the contacts including the ground underneath the light bar and replaced all the bulbs the button does turn off the flashing check light but a mile or so down the road it will start flashing again with no other panel lights coming on I haven't tore out the back seat yet to check the curcuit but that's planned for saturday I'm all over it thenComment
-

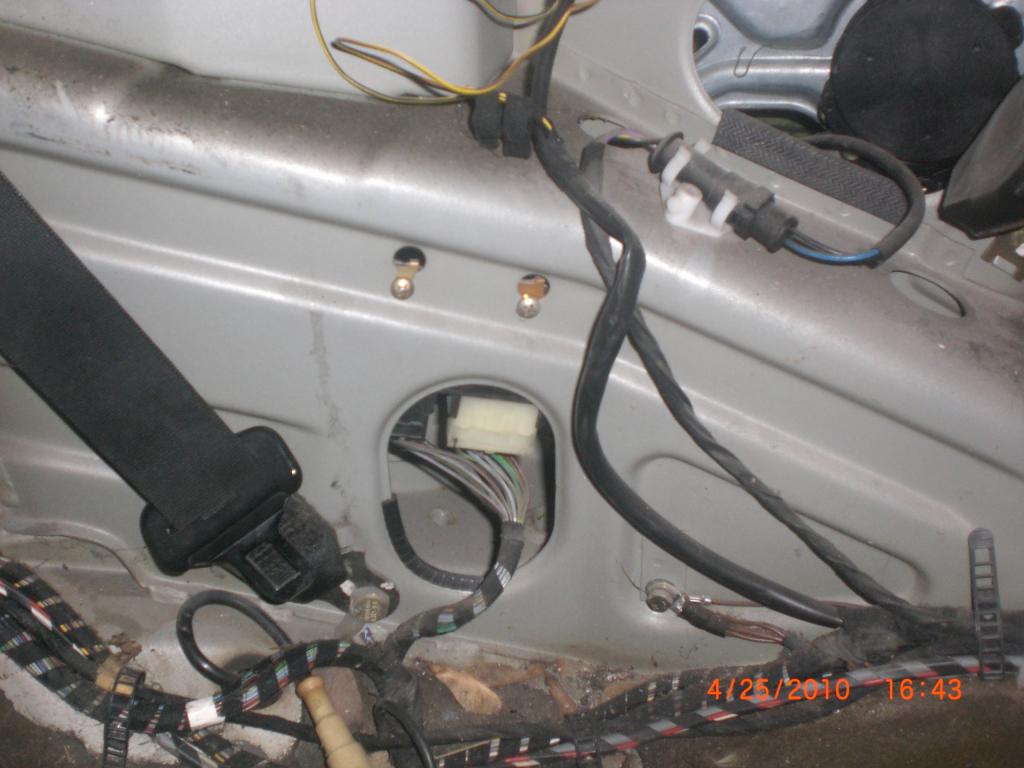

Finally tore it up and found the bastard it is behinde the driver side rear seat panel in the cabby mine was half way unplugged and it was the issue

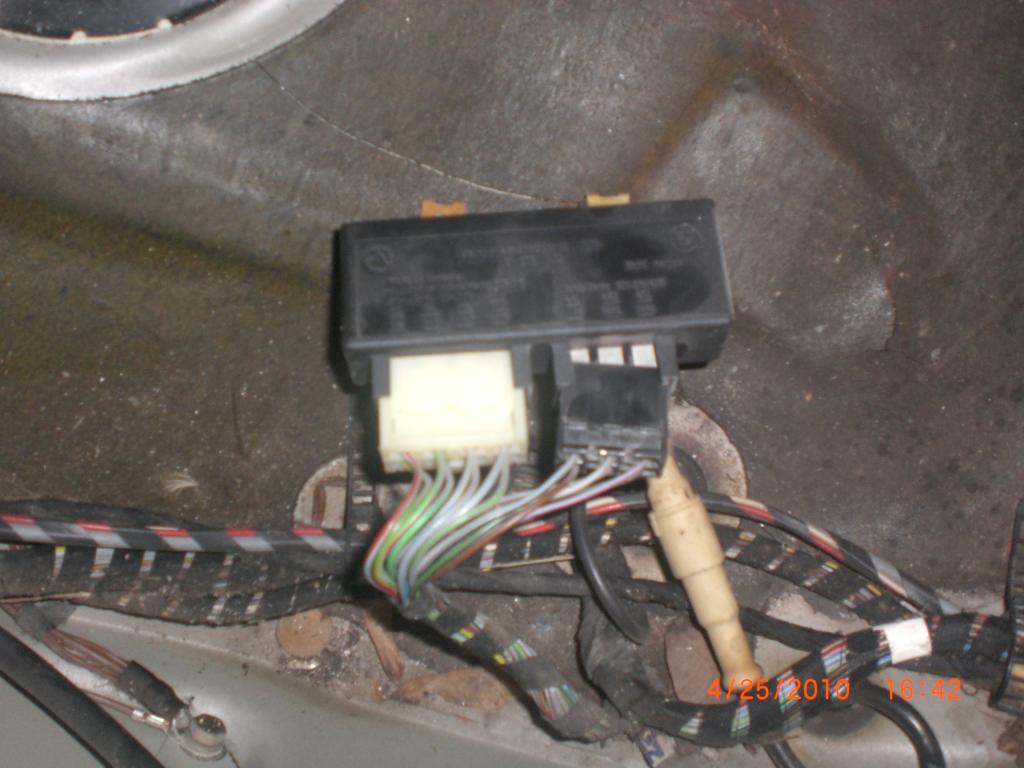

and here is where the bastard hides
Comment
-
Congrats, and let me know if you want to double or triple their output!
(standard wattage bulbs, just more of them)
AndyAndy says "Be Seen, and Not Hurt!"
Lighting Upgrades front and back for 2002, E3, E9, E10, E12, E21, E23, E24, E28, E30, E32, E36, E39, and more.
Tail Light Improvements keep them off your tail.
Headlight protection saves headlights from breakage.Comment
-
Thanks for posting that pic! I've been meaning to track down that little shit box for months now in my vert.
Luke's CRC cleaning badgering took care of my brake light and license plate light on the check panel. Gotta dig this little bastard up now.sigpicComment
-
Talk about delayed reaction...you get off the hook though, Daddy work is WAY more important!
So that seems to be the left side? Evil spot!
While you are in there, grab a 10mm, loosen that ground bolt, squirt some contact cleaner in there and retighten.
GJ!
Luke
Closing SOON!"LAST CHANCE FOR G.A.S." DEAL IS ON NOW
Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398
Thanks for 10 years of fun!Comment
-
yeah took me a while to get back too it the wifes jeep developed the death wobble and had to deal with it talk about a pain in the ass to fix but yep took off the ground and cleaned it up all is working nowand yes cleaned up and vacked out the tree seeds that got under the seat I HATE SILVER MAPLESComment
