Fog light connector

[akasoldats]

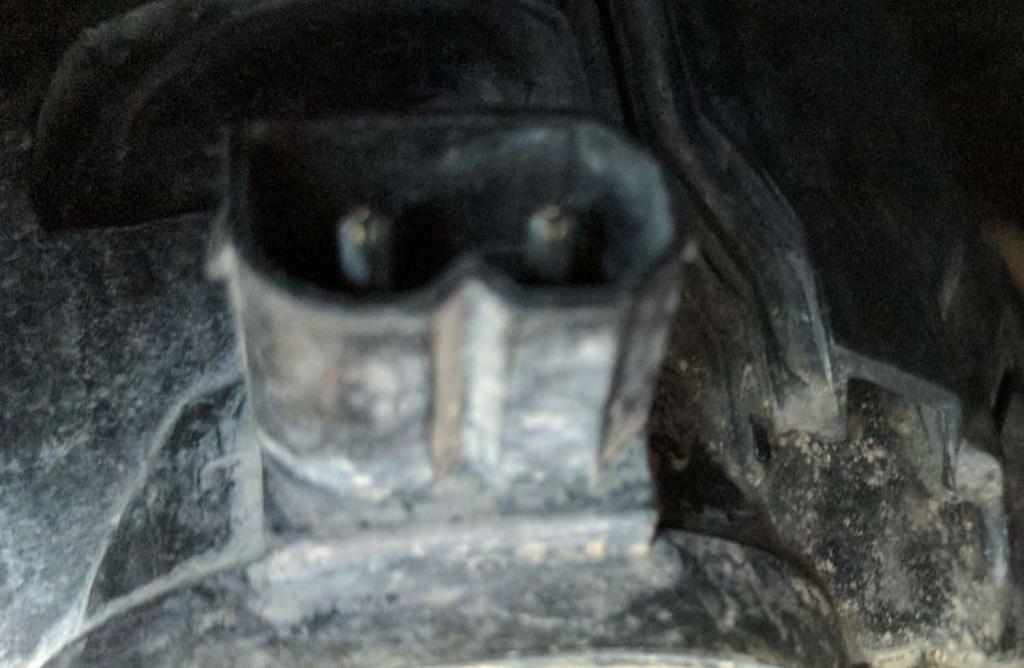

Can someone tell me what pigtail I need to connect these or where I can figure out what connects to them? My car came with the foglights disconnected but there appear to be lenses, buckets, and bulbs and a harness. I'm hoping I just need to wire them up.

[cheffy30]

the pigtail should be dangling there somewhere above the fixture or maybe its tucked in somewhere in the bumper... get under there and take a look... it could also be pulled up stashed near the a/c unit on the pass side or under the air vent by the front light on the driver side.

[akasoldats]

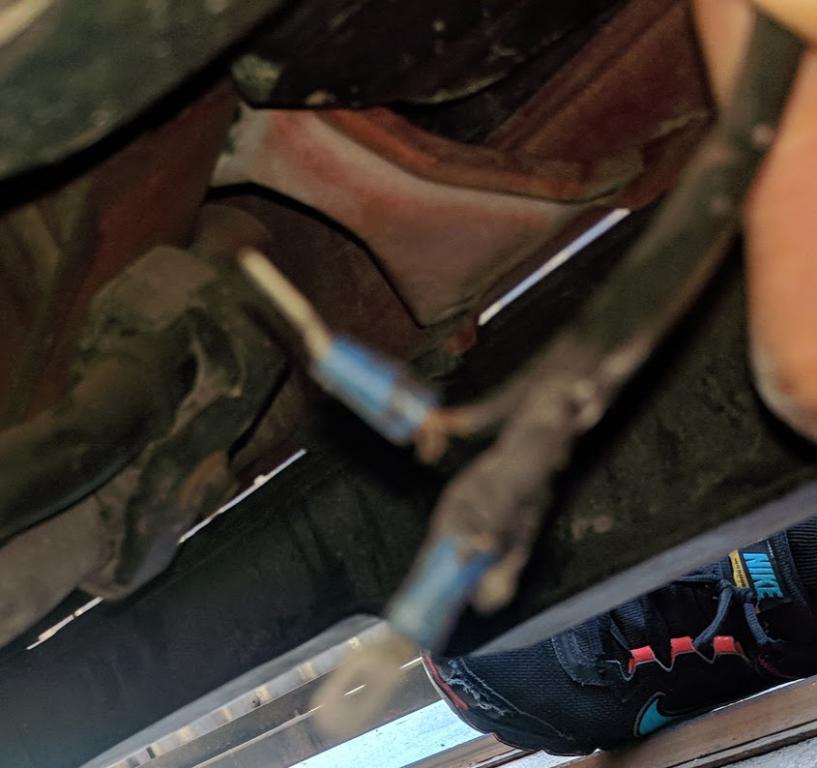

Someone, assuming one of the PO's disconnected the portion that goes to the fogs. :/

[AndrewBird]

Hack job, nice!

Plug housing part number is 61131378418. Wiring pigtail that fits inside it is 61130007446. You need one housing and two pigtails for each light.

https://www.ecstuning.com/b-genuine-bmw-parts/8-plug/61131378418/

https://www.ecstuning.com/b-genuine-bmw-parts/snap-in-socket-with-wire-lead-priced-each/61130007446/

Alternatively, you could cut some off a car from the junkyard. Several different models used these plugs. Just make sure you get the correct shape. The number of angled corners changes depending on the application.

[akasoldats]

Thanks! This is exactly what I was looking for.

[Eurospec]

I have an extra set of connectors if you still need them.

[akasoldats]

I have an extra set of connectors if you still need them.

I am and you have a PM.

[Eurospec]

I am and you have a PM.

Back at ya.
