Help wiring new hu and speakers

[325ix]

Hey all i have a Pioneerh ead unit, no idea what the model is, serial number of AKTM004252UC . I also have four 6in Pioneer speakers that I want to put in. I really need help with wiring these. Please don't tell me these parts suck I don't have the money to buy anything different and would be willing to go the extra mile to make them work. Thanks

[AndrewBird]

This topic has been covered HUNDREDS of times.

[325ix]

I did I couldn't find anything about thsi as I have everything hooked up the way other threads say too.

[AndrewBird]

What car do you have?

[325ix]

88 325ix

[325ix]

heres how I have it wired

stereo car
yellow red/green
red purple/gray
black brown
blue/white white
white yelow/red
white/black brown
gray blue/red
gray/black brown
green yellow/black
green/black brown
purple blue/black
purple/black brown

[StereoInstaller1]

heres how I have it wired

stereo car
yellow red/green
red purple/gray
black brown
blue/white white
white yelow/red
white/black brown
gray blue/red
gray/black brown
green yellow/black
green/black brown
purple blue/black
purple/black brown

Are those twisted pairs, the ones I bolded?

If so, that is not right. Close, but not correct.

You need to not use the "black stripe" (speaker negative) wires from the deck at all, and connect all the brown wires together.

If you do this and your factory amp works correctly, you will be OK.

Luke

[325ix]

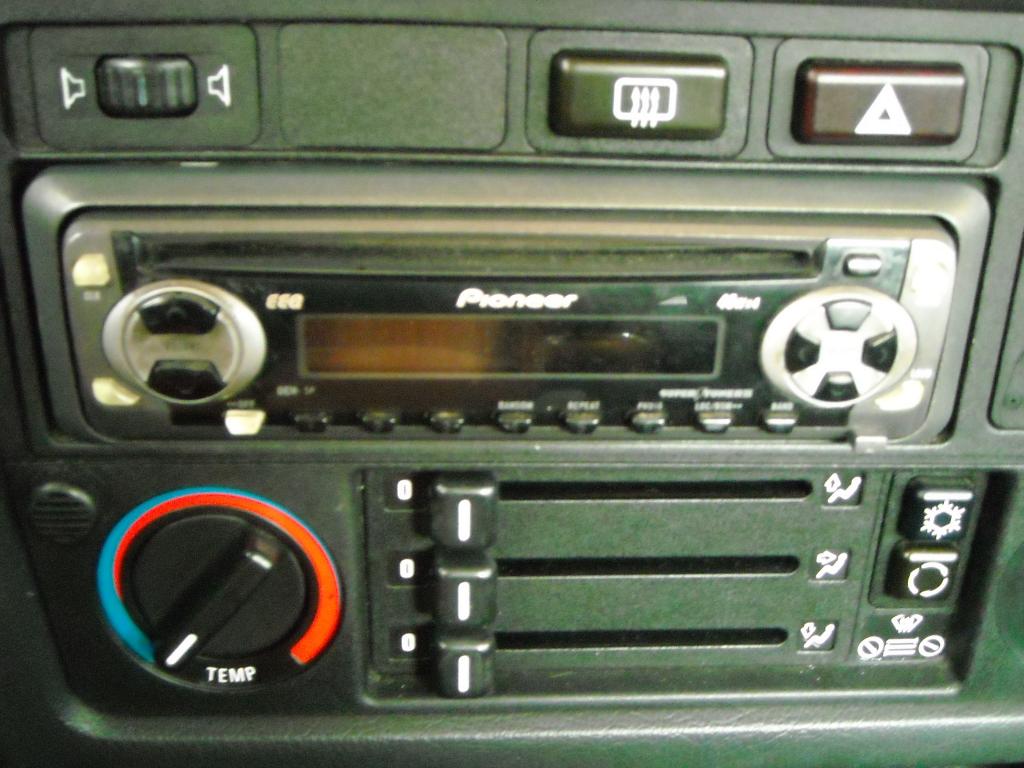

Thank you so much Luke. I rewired it like you said and it immediately worked. Thanks again. You rock :mrgreen: Here is a picture. I know it isn't exactly flush or even stok looking but it lights up a similar color as the dash, my old deck didn't work so well and it was free!

[StereoInstaller1]

You rock

Who you calling a rock?

GJ. Glad to help.

Luke
