Hey guys.
I finally put in an order for the rest of my sound system that will be going into my e30. So, I took out my old head unit to check out the wiring and... Well I have no clue what the fuck is going on with my wiring. PO had a sub installed and spliced wires here and there. Should I just rewire the whole car!?
I will be running...
Kenwood KDC x395 HU
Planet audio 1800watt amp(will power all 4 speakers and sub)
Kicker 5.25 speakers up front
Pioneer 6x9's in the rear
Kicker 10inch Comp sub mounted IB under my speaker shelf (Yes I know its not the best but its how I wanna do it)
Now here are the pictures. Can anyone decipher what is going on here?

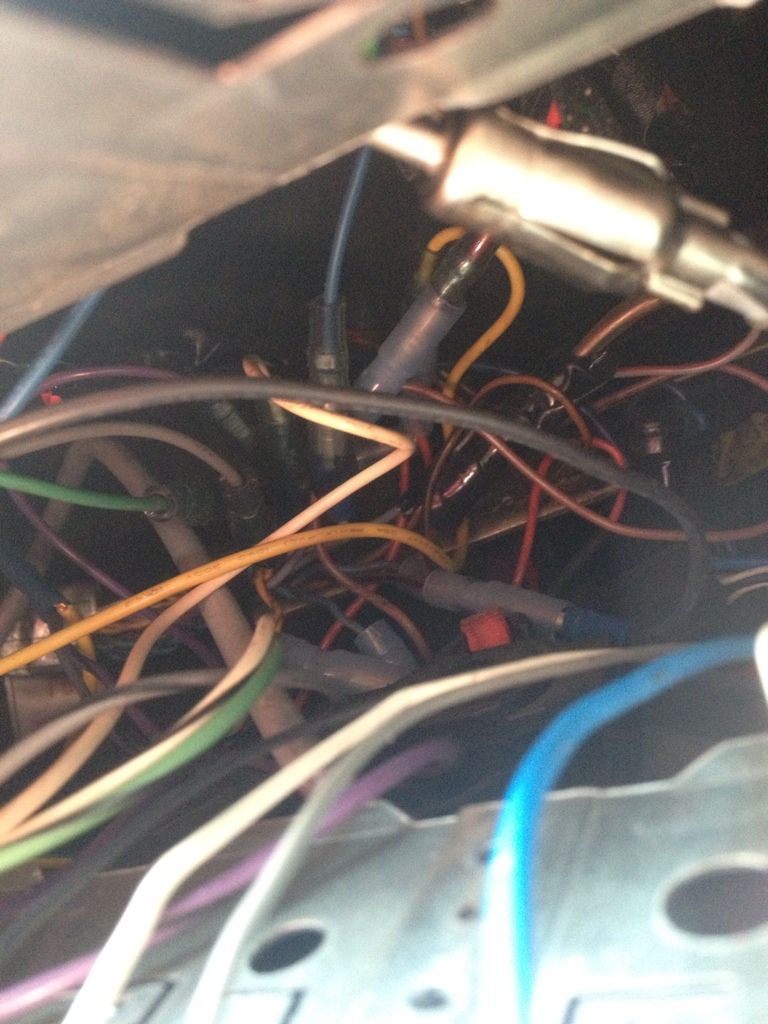

Inside the dashboard

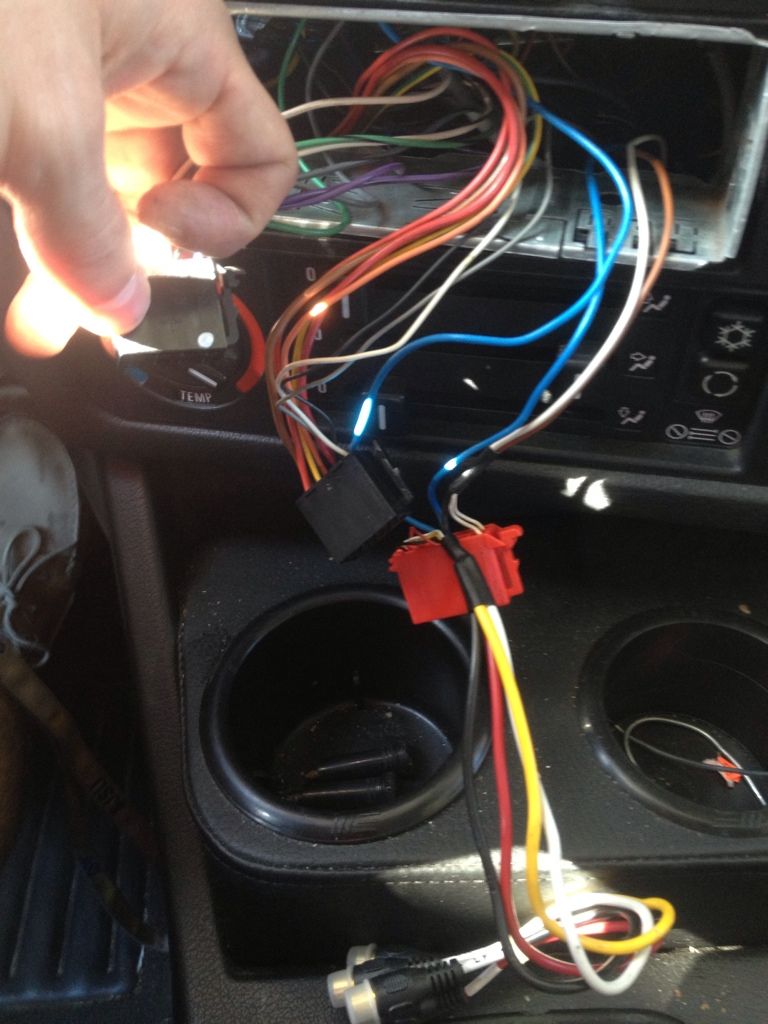

What looks to be RCA wires bunched up together in this connector?

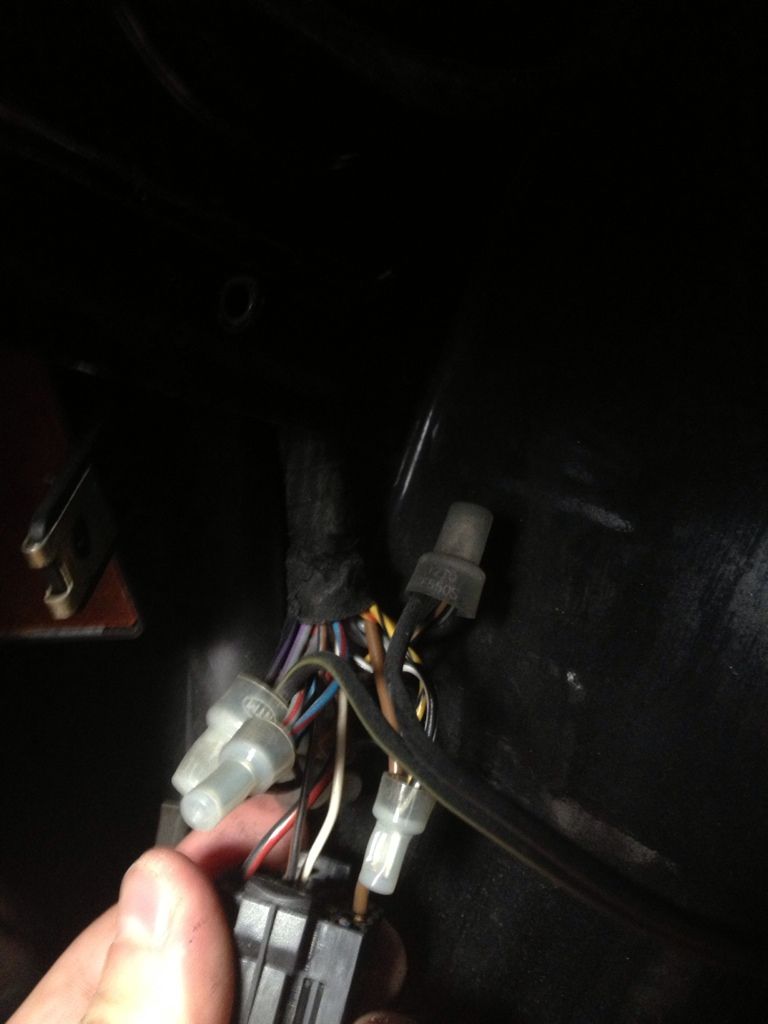

Here we have my stock amplifier wiring. Not sure why there are connected like so. The big black and green cable runs along my car. Not sure what it is either.

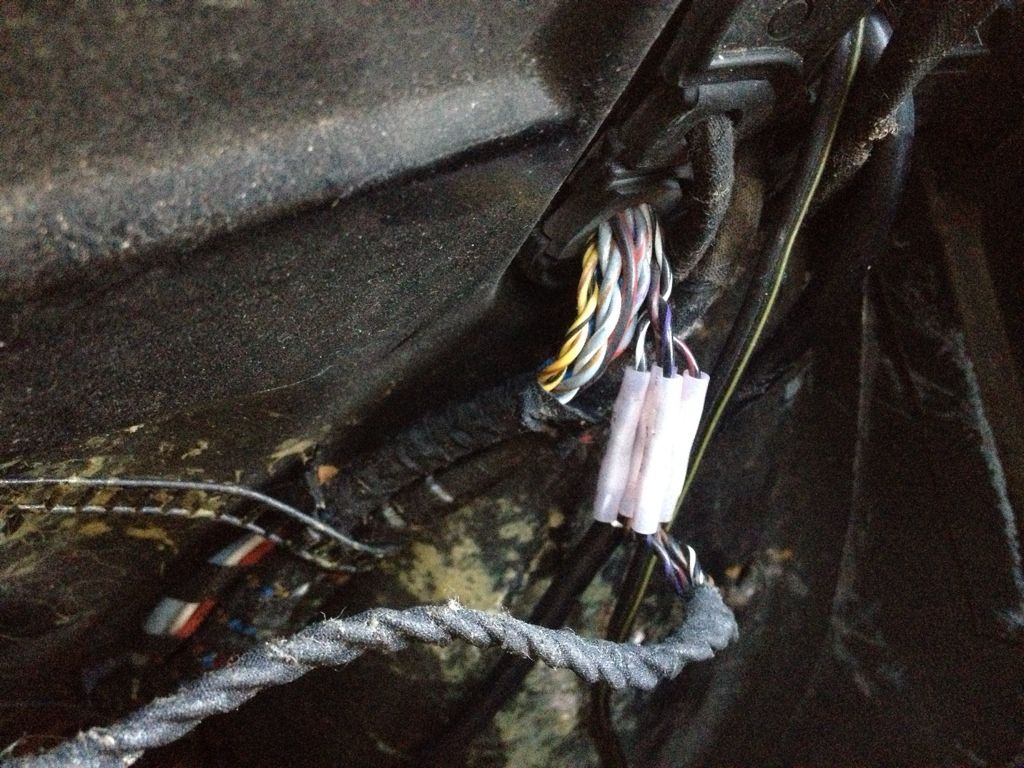

Also, at the rear seat firewall right before the stock wires go into the trunk through the grommet these wires here are spliced and then routed to the rear speaker shelf to form a positive and negative for the speakers.
More pictures in this album.
Worst comes to worse and I'll take it to an audio shop but I would prob make my own wiring before I do that if I cant salvage this.
