Help choosing speakers

[JFarhanbod]

My e24 speakers sound like they are on their way out, so it's time to replace em. Not looking to spend too much but want the best bang for my buck. Keep in mind that I don't have a sub or amp (and don't plan on putting one in) so something that would sound nice being run off the headunit would be nice.

My headunit is a Kenwood KDC-255U, speaker sizes are 4in and 5 1/4in.

Any advice on what to look for?

[Skunkworks]

infinity reference series

[JFarhanbod]

those seem really nice and cheap

http://www.amazon.com/Infinity-Refer...=1077068&s=car

http://www.amazon.com/Infinity-Refer...pr_product_top

[JFarhanbod]

seems like the infinity reference are 2ohm speaker while my headunit is 4-8ohms. will it work?

[JFarhanbod]

Also there was already an adapter harness when I wired my kenwood in (it had an e36/e34 harness wired in) and my fader still works, so that means all my grounds are together and my + are connected from the speakers to the fader and from the fader to the head unit. I'd realllllllly reallllllly reallllllly rather not have to rewire anything. From what I heard, the fader isnt good for the hu so should I bypass it?

Luke where ya at?

[JFarhanbod]

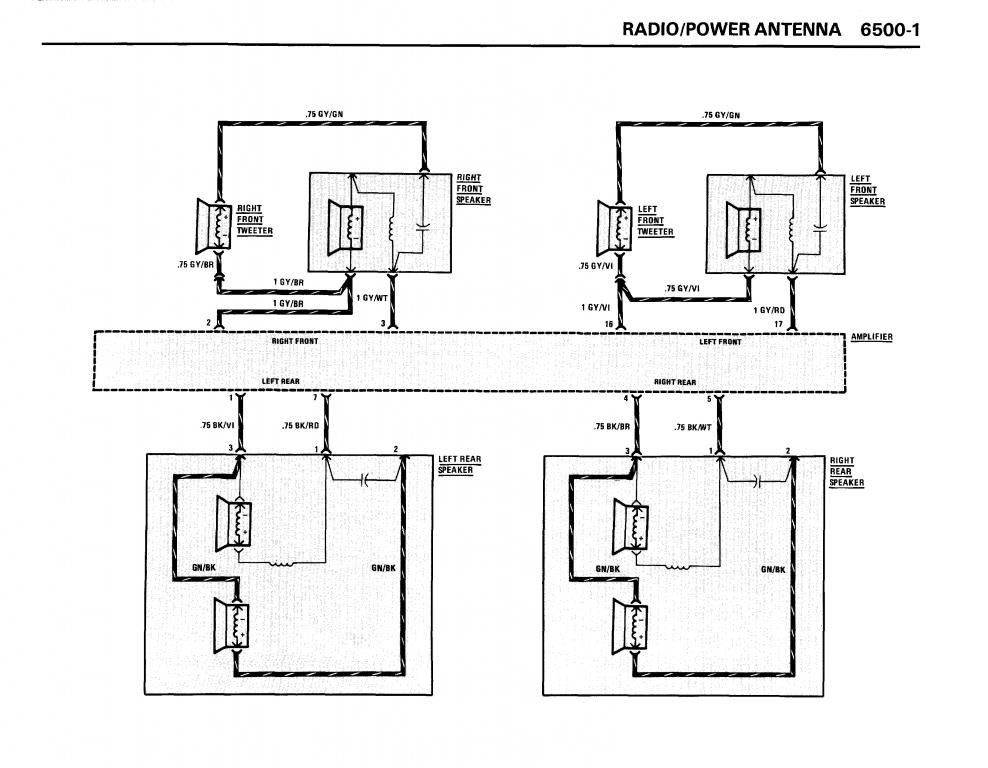

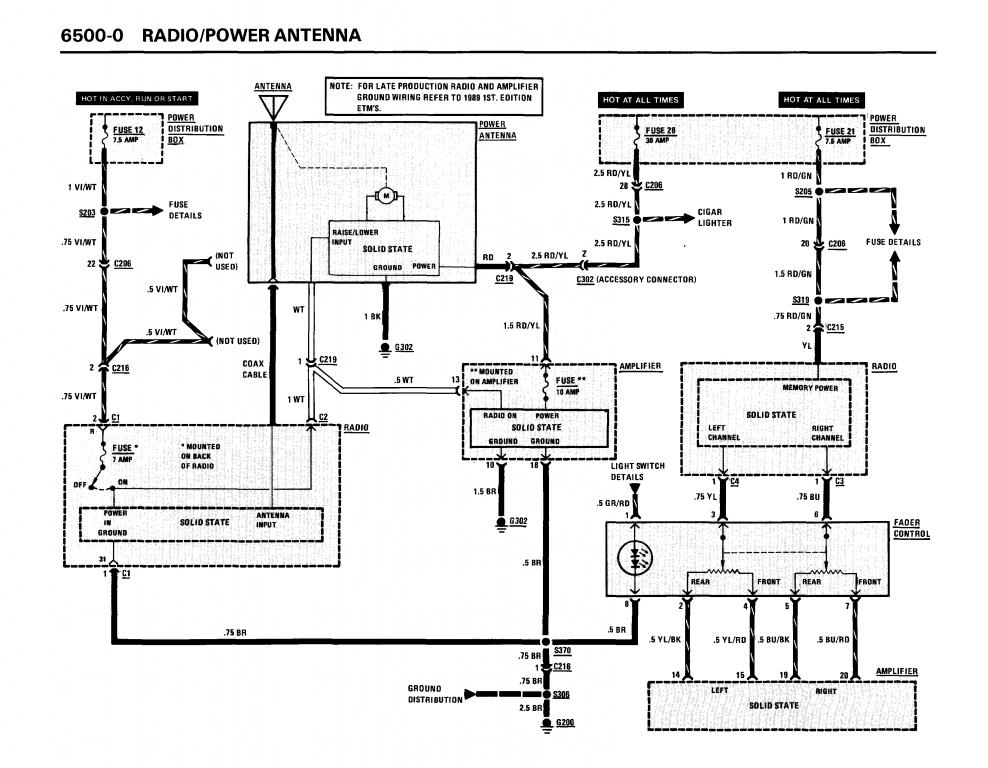

heres the diagram

[Skunkworks]

http://www.sonicelectronix.com/item_...ce-5032cf.html
http://www.sonicelectronix.com/item_...e-6432cfp.html
This would be fine.

Or Rockford Primes. Polk DB is nice but power hungry.

Sonic is a solid outfit with good prices.

[JFarhanbod]

I think I'm going to go with the infinities, now i just need to make sure the car is wired right and wont kill em

[StereoInstaller1]

Jason, it would be good to have all 4 speakers running off the deck directly, meaning no fader.

If anything, you are losing half your power or more.

In an E24, if you do it properly, you can run new wires to the front speakers pretty easily and then you can re-purpose the grounds so the rears are isolated.

[JFarhanbod]

Any tips or guide on how to do that?

[StereoInstaller1]

Yes, it is in this thread.

Simple enough though, show me all the colors you find in the harness AFTER you unwrap about 18" so the yellow and blue wires are free.

[JFarhanbod]

Alright here's pics.

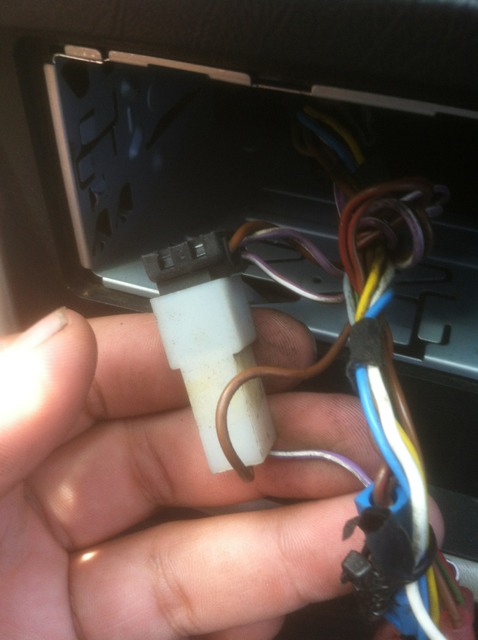

This is the fader

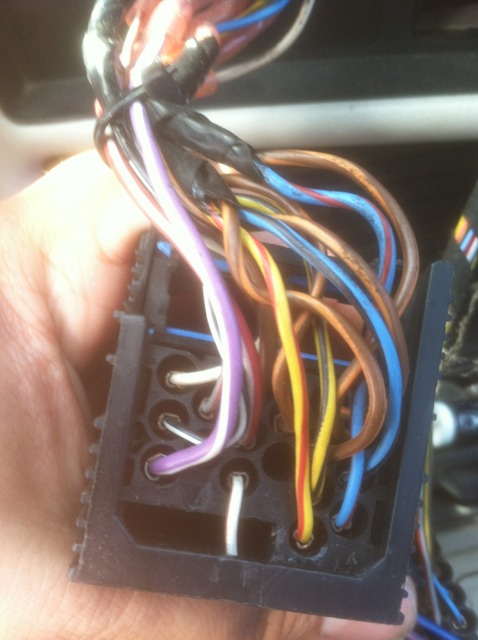

This is the plug for the adapter

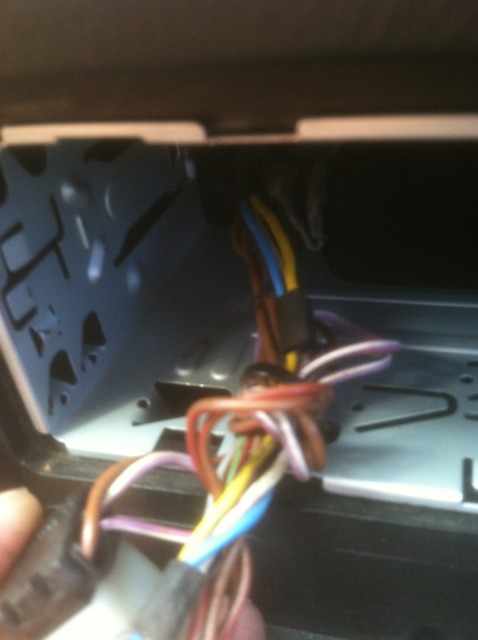

Random plug


More wires

[JFarhanbod]

speakers came in, just gotta figure out the wiring. Anyone?

[StereoInstaller1]

Alright here's pics.

This is the fader
[ATTACH]68338[/ATTACH]

This is the plug for the adapter
[ATTACH]68339[/ATTACH]

Random plug
[ATTACH]68340[/ATTACH]

More wires
[ATTACH]68341[/ATTACH]

Holy crap.

Now I see what is going on here!

You have a serious oddball, one I have never seen in person.

Your car has an adapter that allows use of later BMW radios. It is kinda hacked together, but clearly the intent was to use a later radio.

Kind of a shame too, as had the installer taken apart (unwrapped) that stock deck harness and fader harness, they would have found the wires they need.

So I gather you now have a couple sets of Infinity speakers and you want to install them. What deck do you have and what year/model is the car?

[JFarhanbod]

Holy crap.

Now I see what is going on here!

You have a serious oddball, one I have never seen in person.

Your car has an adapter that allows use of later BMW radios. It is kinda hacked together, but clearly the intent was to use a later radio.

Kind of a shame too, as had the installer taken apart (unwrapped) that stock deck harness and fader harness, they would have found the wires they need.

So I gather you now have a couple sets of Infinity speakers and you want to install them. What deck do you have and what year/model is the car?

That's why I'm so incredibly confused, I have no idea what the PO did. It had a CD43 (or the earlier one) when I bought the car, I bought the e36 adapter and spliced it to the new headunits harness. The headunit is a Kenwood KDC-255U. I got the Infinity Reference Speakers and I figured that I might as well do it right and fix the wiring the first time instead of using it as is and risking blowing em. The car is a 1988 635CSI.
