    Where is this splice?

    Hello all, I seem to be having a problem with all my electrical components that are running off of fuse #21. I checked the fuse and it is good. I also checked the G200 ground and that is good also. I am getting 12V at the fuse box but only 0.5V-0.6V at the interior lights, chime module, etc. It seems like the only thing between the fuse and the components is splice S319 according to the wiring diagrams.
    Does anyone know where this is located? According to the diagrams it seems to be on the side of the driver's seat but I can't seem to locate it, maybe I'm just missing it. I know I can just rip everything apart and trace the wire from the chime module or whatever, I'm just trying to save myself some time.
    Thanks

    #2
    It shows it about 4 or 5 inches in front of where the wiring runs across the floor board to the tranny tunnel. Tracing down the splices can be hard, find the wire color in the loom, and start tracing it till you find the splice.
    85 325e 2.7 ITB'd stroker

    Comment


      #3
      Thanks, I found it. Sure enough, when I took the tape off, the wires were corroded and not connected. I cleaned it up and reconnected them and all is well. I now have a working tach, interior lights, and everything else.

      Comment


        #4
        Originally posted by 30stones View Post
        Thanks, I found it. Sure enough, when I took the tape off, the wires were corroded and not connected. I cleaned it up and reconnected them and all is well. I now have a working tach, interior lights, and everything else.
        Pic, please?

        Closing SOON!
        "LAST CHANCE FOR G.A.S." DEAL IS ON NOW

        Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398

        Thanks for 10 years of fun!

        Comment


          #5

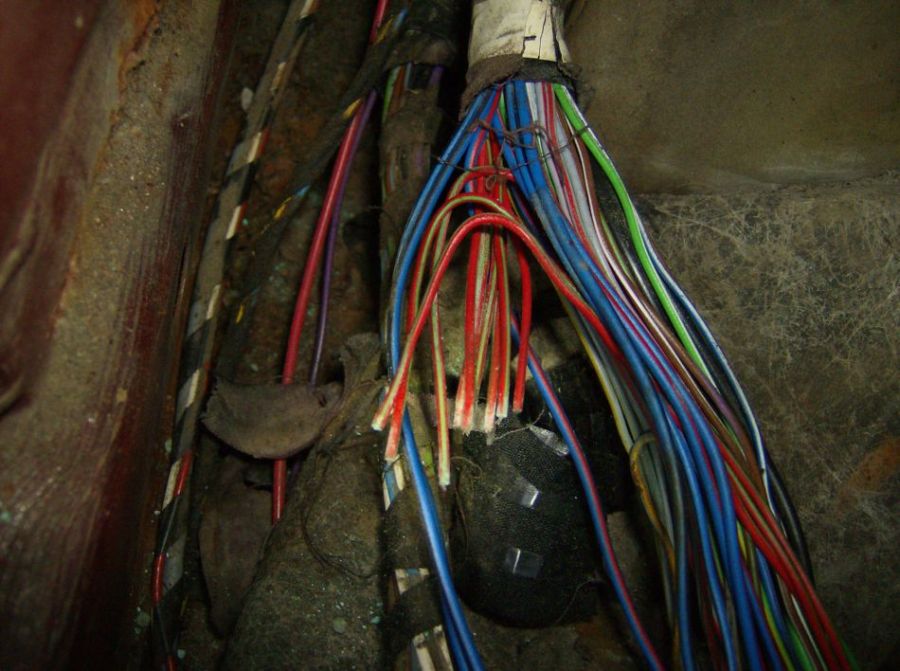

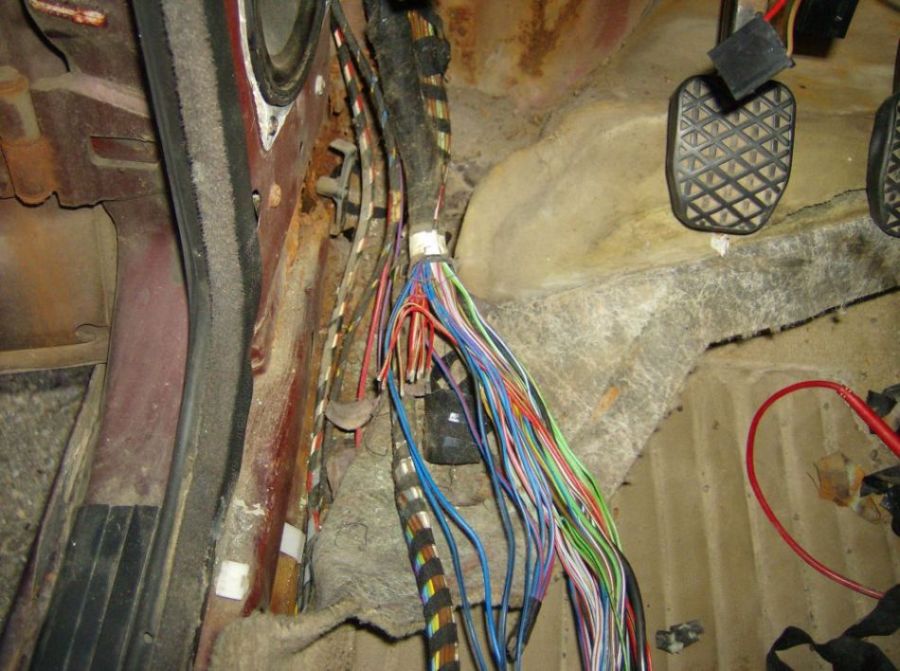

          Here are the pics:
          Attached Files

          Comment


            #6
            Thanks, mang.

            Shit for the memory banks, y'know?
