Building my own Muffler, would like your input..

[MonkeyMadness]

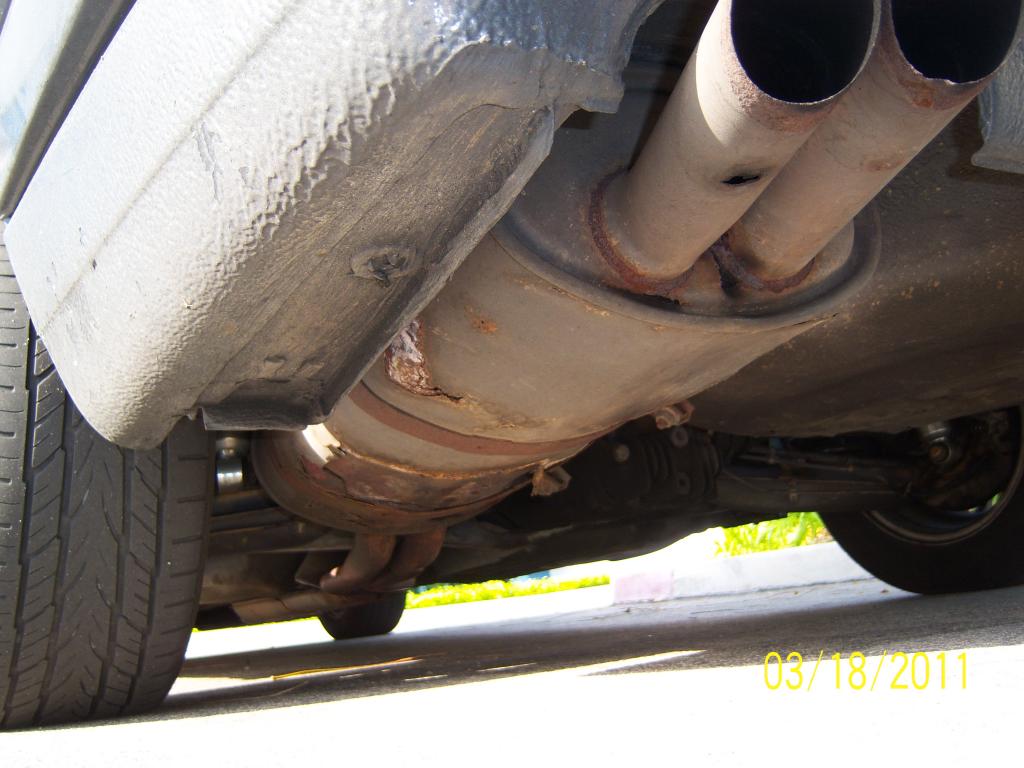

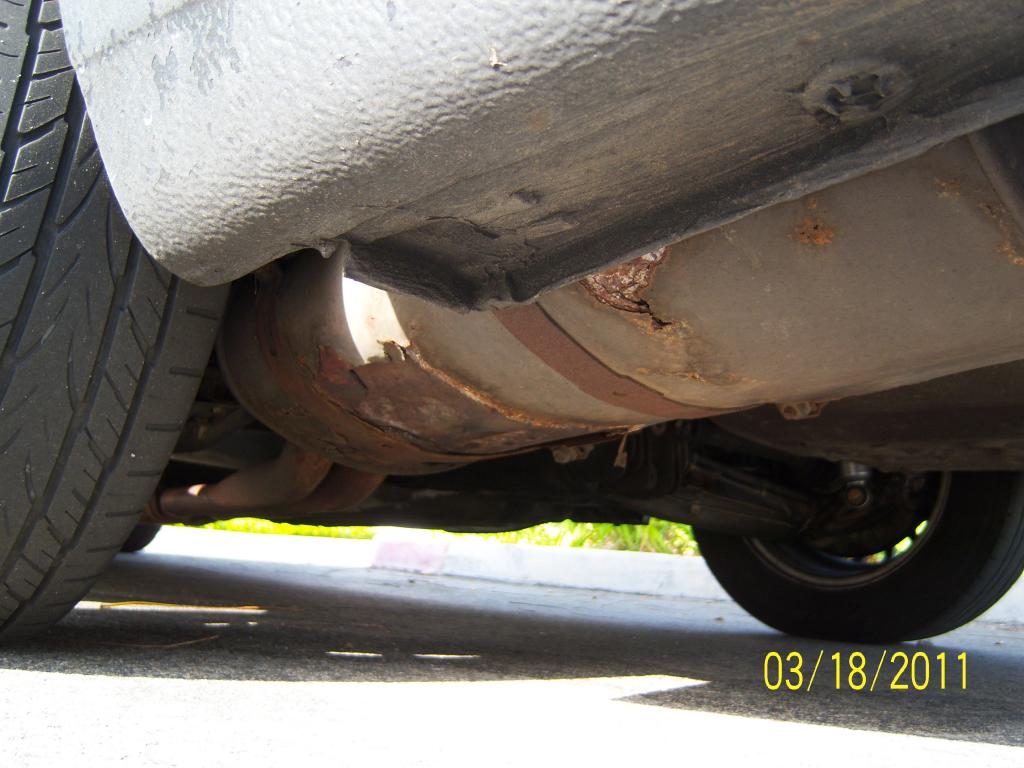

OK so I'm on the ground checking out all the sweet hole in my muffler when I relized that if i hit a bump hard enough that it will come apart faster than a M20 oilpan...
Damn.. it's too bad I realy like how it sounds right now.. oh well..




So I'm a fab guy by trade, but i get paid to build exhaust for motorcycles for a living..

So I read some where that glass packs fucking rock on the tail end of the m20..

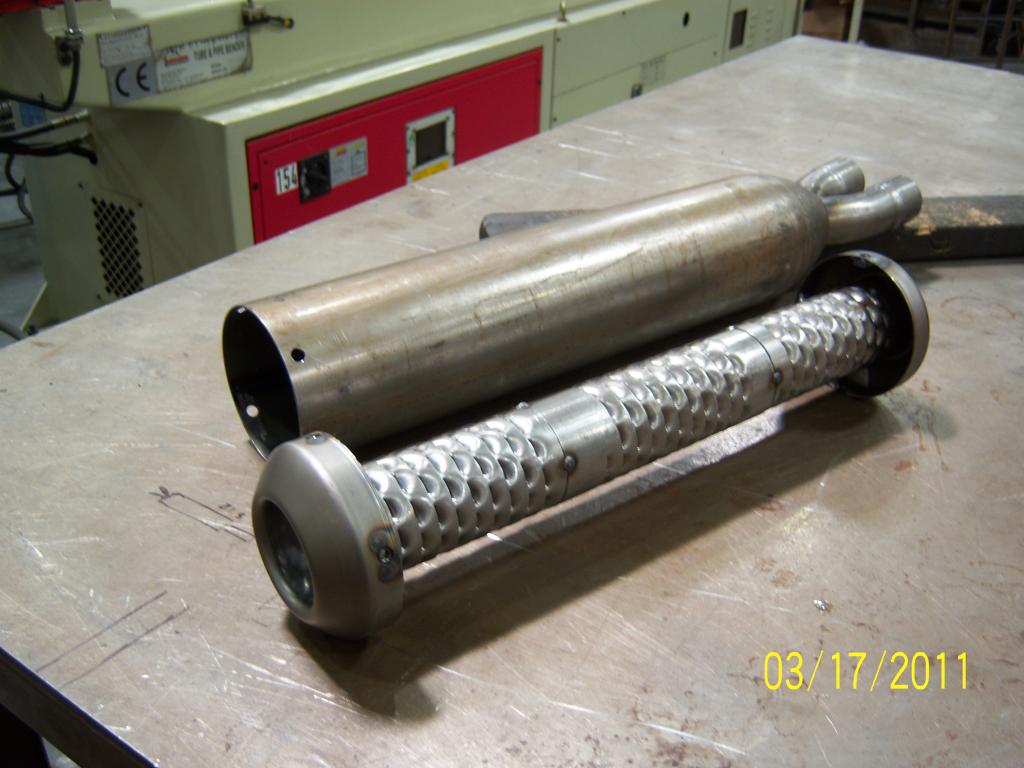

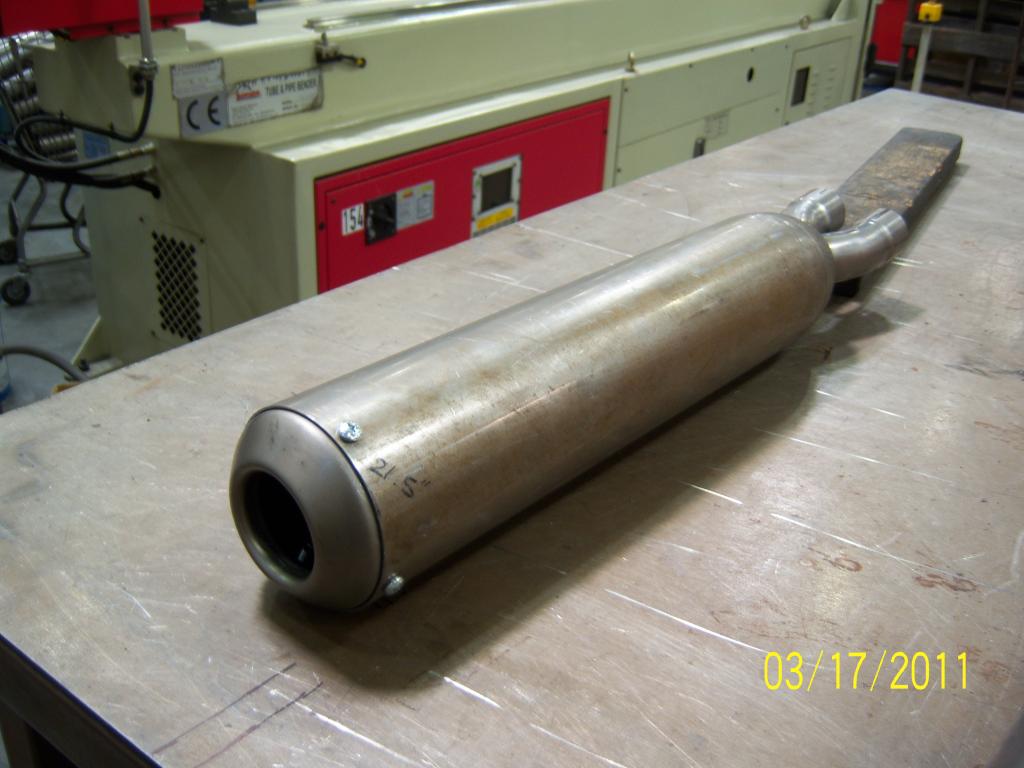

1. Ok fisrt of three is a big ass fartcan size 2-1.
4.5" x 21.5" long body w/ 2-1 collector running 1.75" to 2.5 butt


Core is 2.5" x 19" louvered core body removeable and repackable

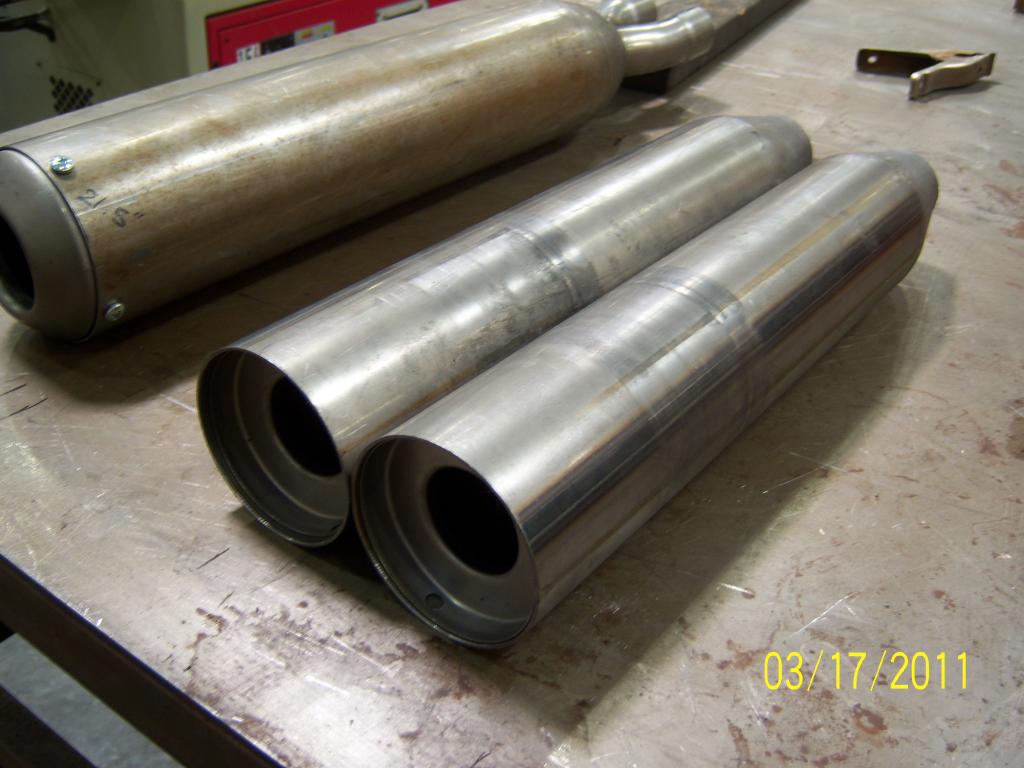

2. This set is a pair build, of 3.75" x 19.75" long bodies


Cores are 2" x 17" louvered core body removeable and repackable



3. I have no pictures of this set ran out of time.
They are 3" x 15" bodies. Non-packable
Cores are 1.75" x 15" louvered core body sealed and not repackable


These will be chromed then brushed to give that satin/chrome look.


It was a boring day at work today, and I kinda threw them together..
as mock-ups ...

I'm still looking for a good design.. just kinda playing..

[StereoInstaller1]

I know what I want, and it seems we might be barking up the same tree, sorta.

I want a pair of straight cut Borla tips coming out of the center of my car. I have no need for a spare tire, so the well will be cut out.

I want either something that has no packing (RevTech, NOT Flowmaster) or, ideally, a pair of repackable tubular style, like the ones you showed above.

Can you sell this stuff? Are you willing to fab stuff up and ship it? The louvering on that core you showed is excellent, and will make exactly the sound I want.

Get some more work done, I wanna see your skillz!

Luke

[A_Whelan]

Post up some pictures once you get it done and a video clip, looking good. Might also be interested in purchasing one depending on the sound and cost.

[MonkeyMadness]

Just finished a fully welded set, and sent it out for plating today..
I changed up my look

I'm running duel 3" glasspack style bodies, 21" long with a fully louverd 2" core
packed with tempered/pressed fiberglass packing..
As for the tips, I have 2 buillet tips cnc'ed here, in a euro style slash cut look
they'll extend out about 2.5 inches from the valance edge.
These are fully repackable, and I carry the fiberglass (bun) inhouse.
I will post pic's of the finish muffler most likely on Monday when i get them back
from the platers..

see ya than...

[kalib0y]

custom muffler building...thats new to me...Subscribed and interested in the outcome.

[TimR]

I'm telling you sound adjustable for most would be more important than Supertrapp. I moved the 278K muffler from the wifes 525 to her newer 525 just cause it purrs NICE.

[E30AWDAZ]

Im interested in sound clips!

[DTM190]

i like

[MonkeyMadness]

I'm telling you sound adjustable for most would be more important than Supertrapp. I moved the 278K muffler from the wifes 525 to her newer 525 just cause it purrs NICE.

Mine are ajustable, I can very the lengh, and size of the louver or perforated core, as well a the amount of packing.. and If needed body size, singles or duals, single or multipul chambers

Im interested in sound clips!

So am I... :p

i like

thanks, wait till you see my last build.. the buillet tips look awsome..
can't wait to get them on...

[MonkeyMadness]

Sorry no update, stuff didn't make it back from the plater..ugh
Told I will have it tomorrow.. !
Post pic's tomorrow night..

[MonkeyMadness]

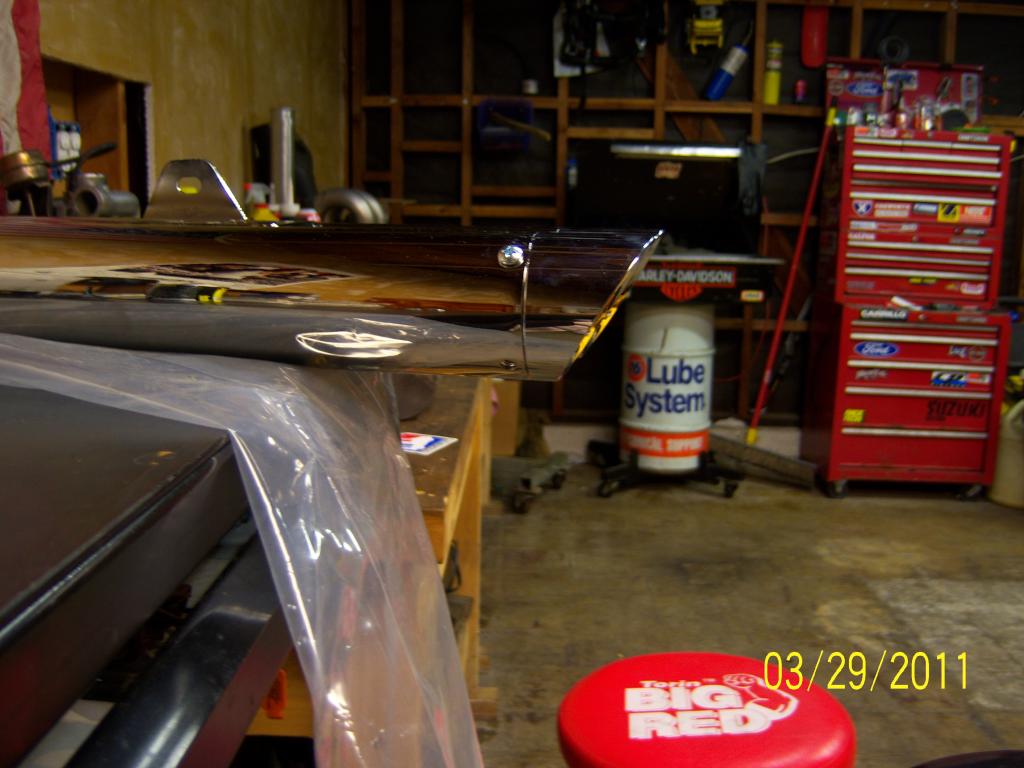

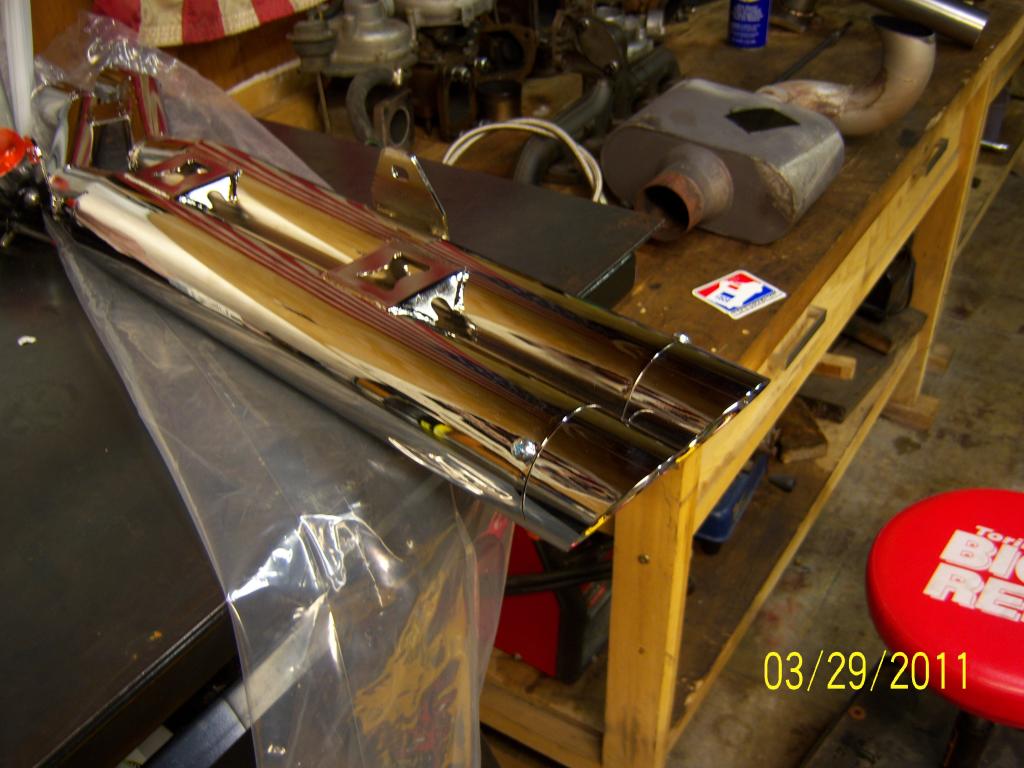

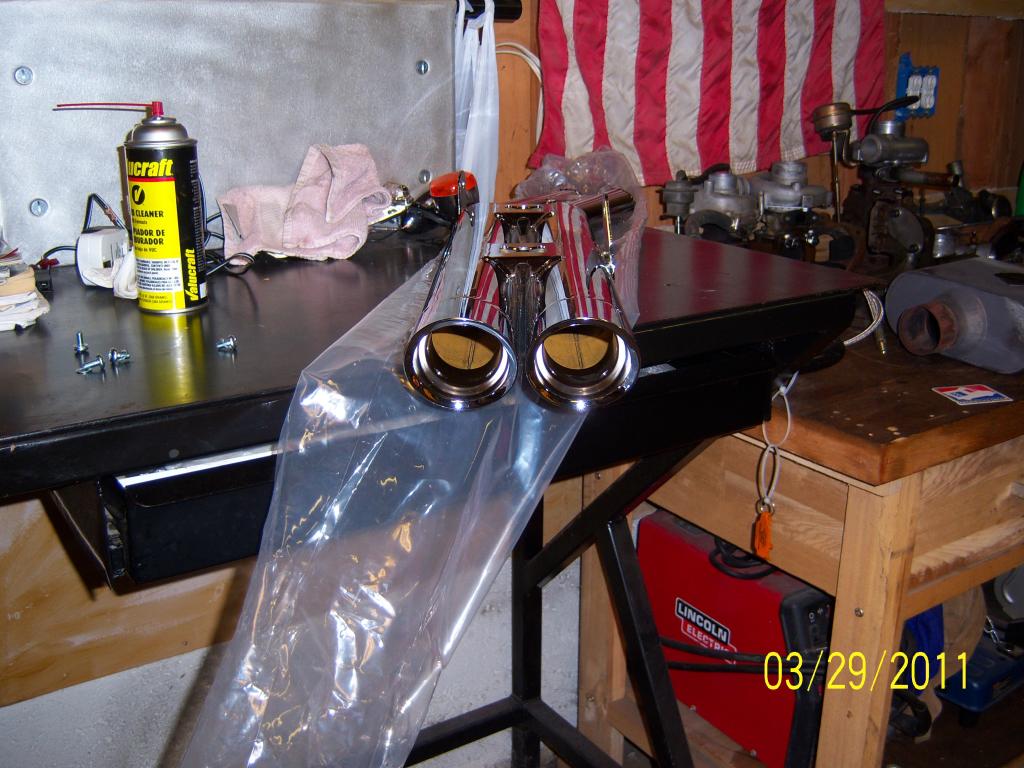

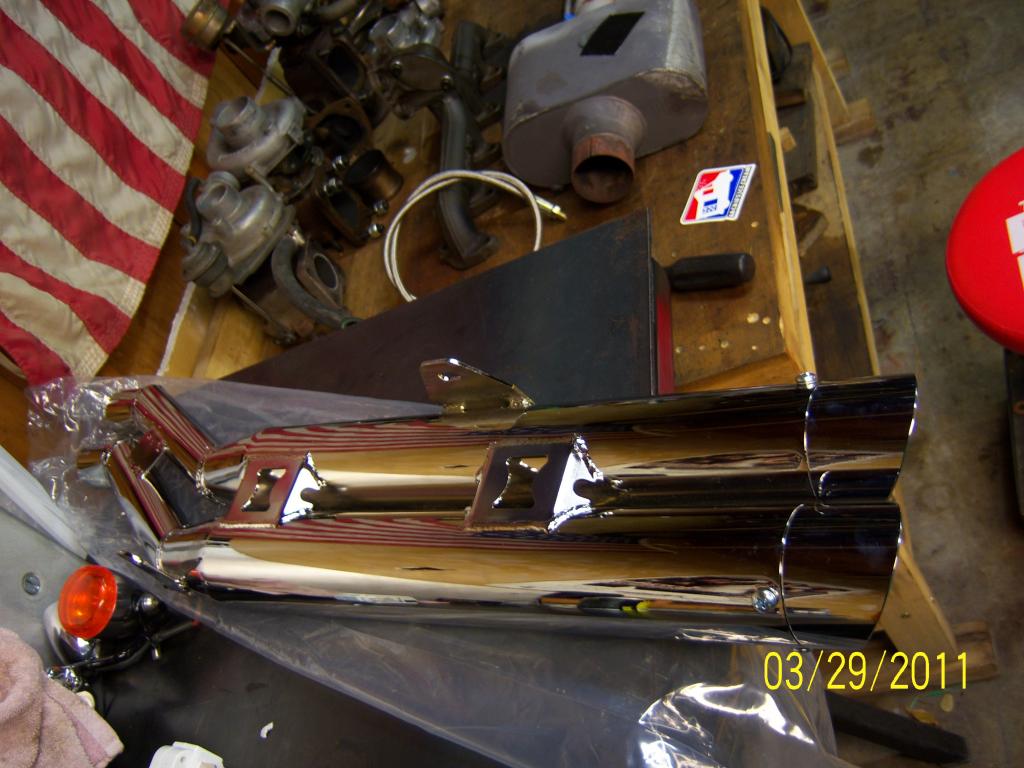

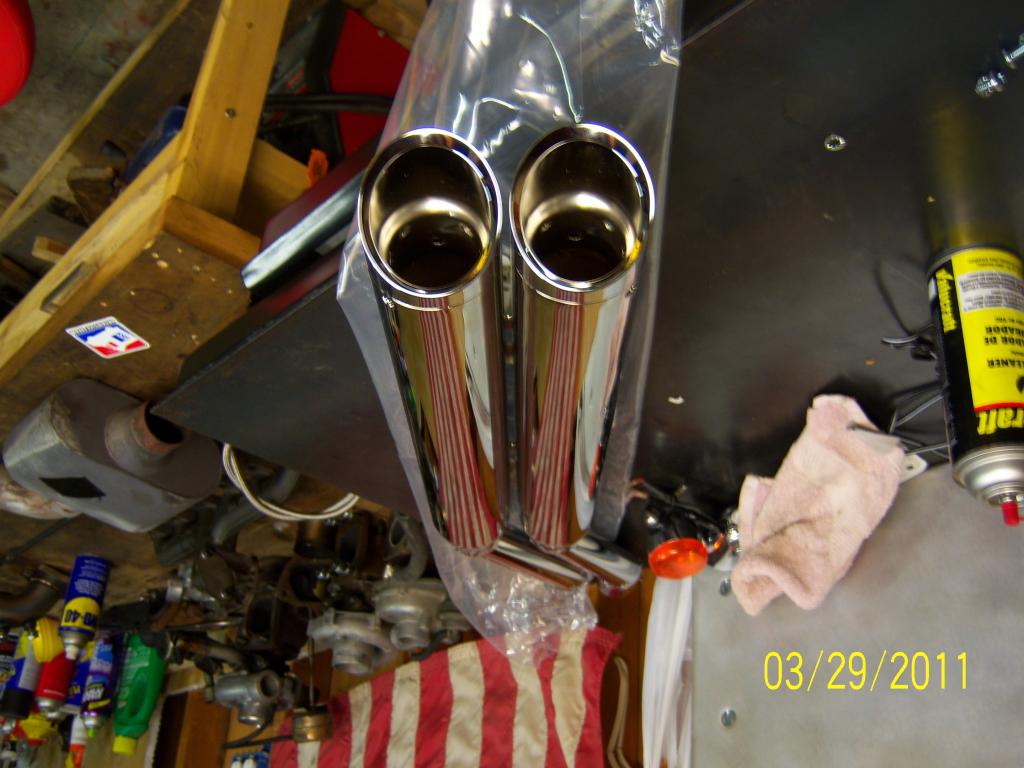

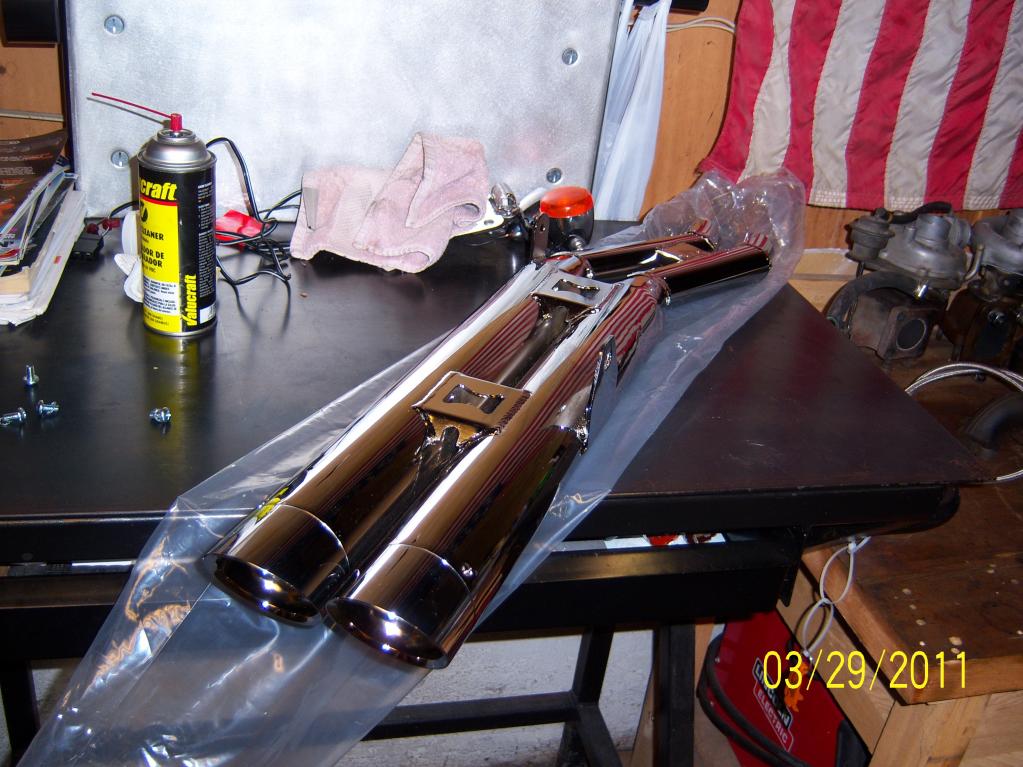

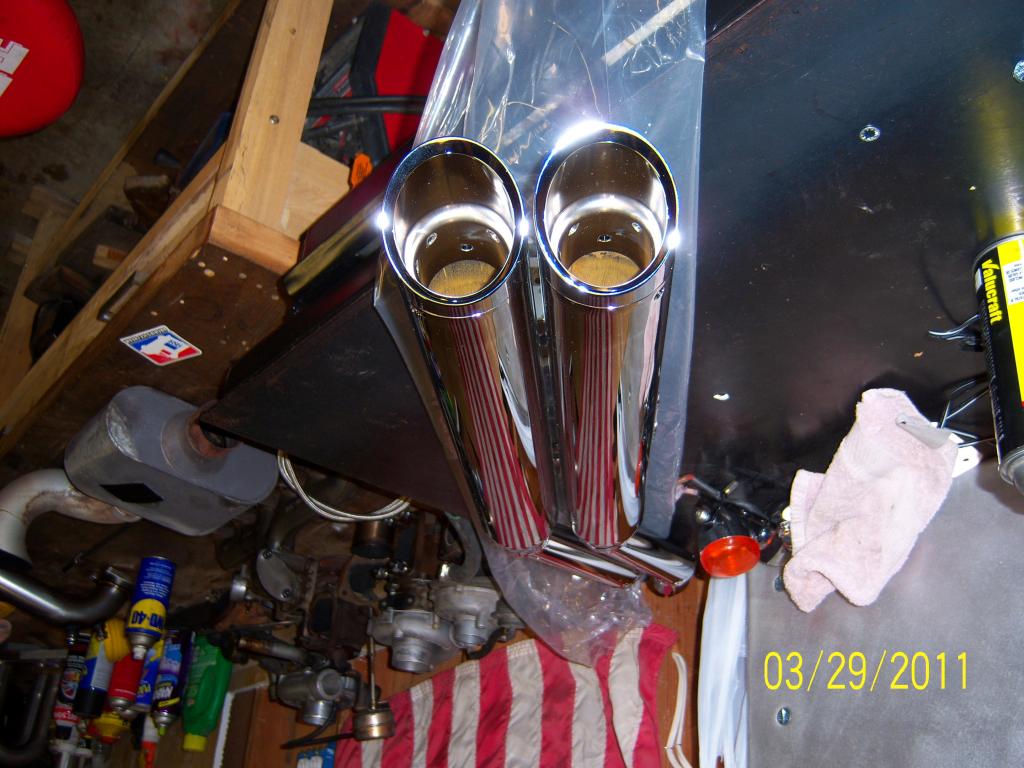

Ok so got my muffler and tips back from the plater..
All excited, Left work early to pick up the kid and forgot to bring home the
mounting brakets, cores, and fiberglass packing (bun)

[MonkeyMadness]

more to come when I remember to bring home the core's

[A_Whelan]

That looks amazing! Can't wait to hear it in action!

[kalib0y]

leats hear it. Great work so far

[Mike The Bavarian]

that looks sick man. I've mad a few hand fabbed glasspacks, nothing like this though
