Just a quick note to make. The lower bolts on the m21 manifold are very very close to the block. I looked into something like this when I got my manifold. Make sure you put that head on a block for a test run like that to make sure you done have any problems there.
Announcement
Collapse
No announcement yet.
M20 Adaptor plate for 524td manifold?
Collapse
X
-
Originally posted by Erik j View PostJust a quick note to make. The lower bolts on the m21 manifold are very very close to the block. I looked into something like this when I got my manifold. Make sure you put that head on a block for a test run like that to make sure you done have any problems there.
I noticed this whan I first looked into "notching" my manifold
hence the shape of the laser cut flange. I wanted the smallest foot print
possable. plus you have to add the width of the exhaust gasket pushing the flange from the head..
If anybody happens to see anything I may have missed please chime in..
I appreciate any and all feedback...https://www.forabodiesonly.com/mopar...re-irs.356333/
This Forum is built on love, and powered by Sexual Tension!
When I die, I want to go peacefully like my Grandfather did, in his sleep -- not screaming, like the passengers in his car.
Comment
-
Feel free to send me a set for test fitment. i have an m20 on a stand and an m21 manifold on my shelf.Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.
www.gecoils.com
My euro 316 project Transaction Feedback
Comment
-
Ya anybody else.... lolhttps://www.forabodiesonly.com/mopar...re-irs.356333/
This Forum is built on love, and powered by Sexual Tension!
When I die, I want to go peacefully like my Grandfather did, in his sleep -- not screaming, like the passengers in his car.
Comment
-
Ok Update...
So went back and changed a bit..

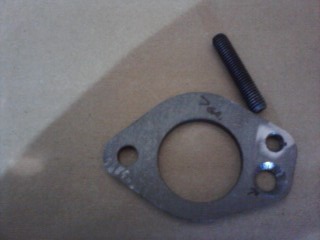

Cut out a flange in 7ga just for mochup..

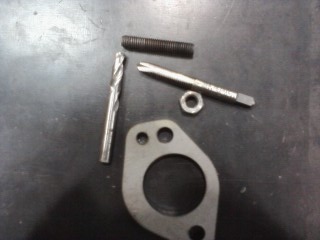

Counter sunk the lower hole, tapped the td hole
threaded in the stock stud.. Mounted to head.. and slid on the 524td
manifold, and it fit perfact...
I was sooo happy....
Again this is only a mochup part it is not
the final product, it is only 7ga.

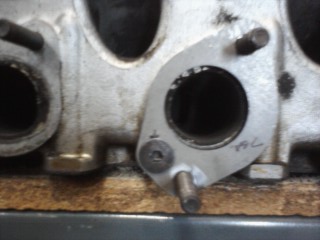

This is the mochup part bolted to the head
