Post your turbo-back 3"exhaust specs/sounds clip

[TC|Photography]

please post your 3" turbo-back exhaust set-up specs as well as a sound clip.

Thanks!

-Tyler

[jaywood]

I got all of my exhaust stuff from summit (minus the mandrel bends which I sourced on eBay) I built this on jackstands with the mig welder on the other side of building.





Here's the downpipe



2.5" --- 3" adapter (bought the 2.5" downpipe and didn't feel like building a new one at the time)



Used lots of sharpie marks, tacked with the mig, test fit, tacked some more.

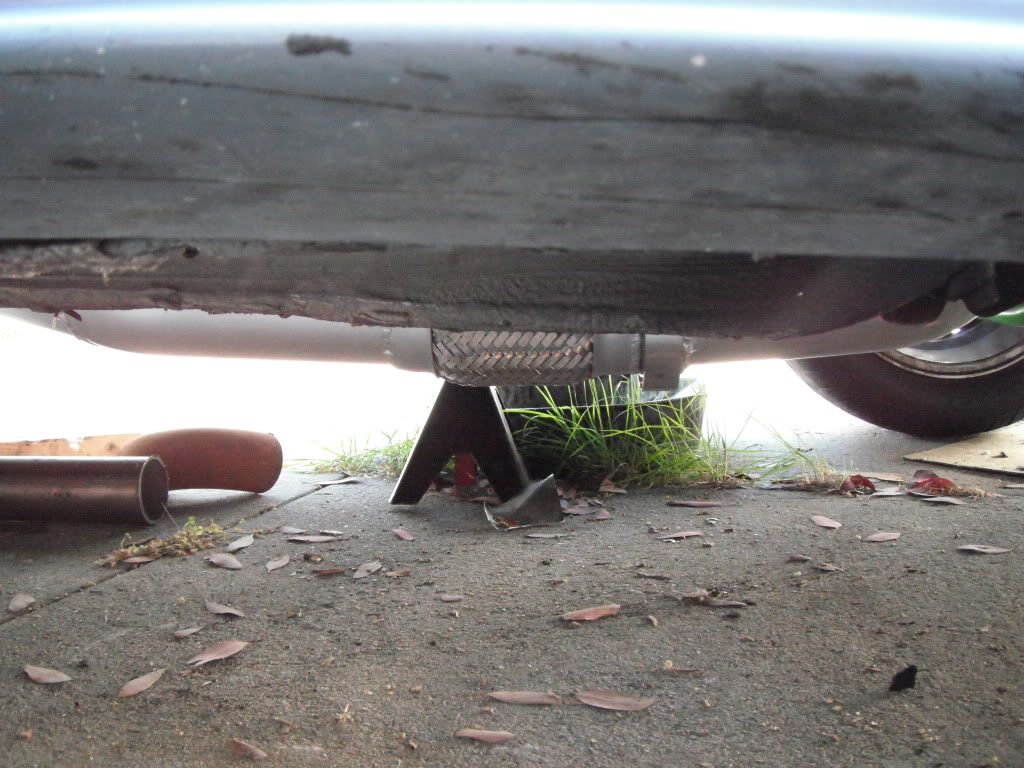

I used a flex pipe (you NEED one of these) and a glass pack from summit

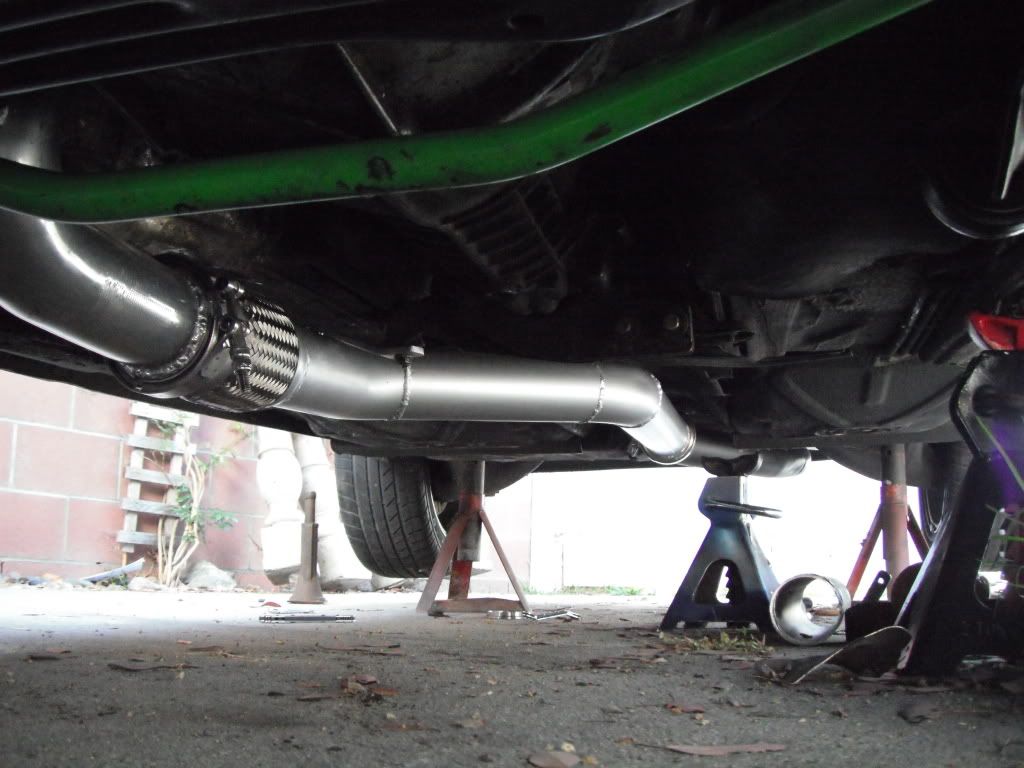

Here it is, all tacked with the Summit Turbo Muffler at the rear.



Test fitting



Painted



Here's one of the hangars I made. It worked, but not too well. I will be doing it differently next time around



Don't forget about the bung for the wideband!!

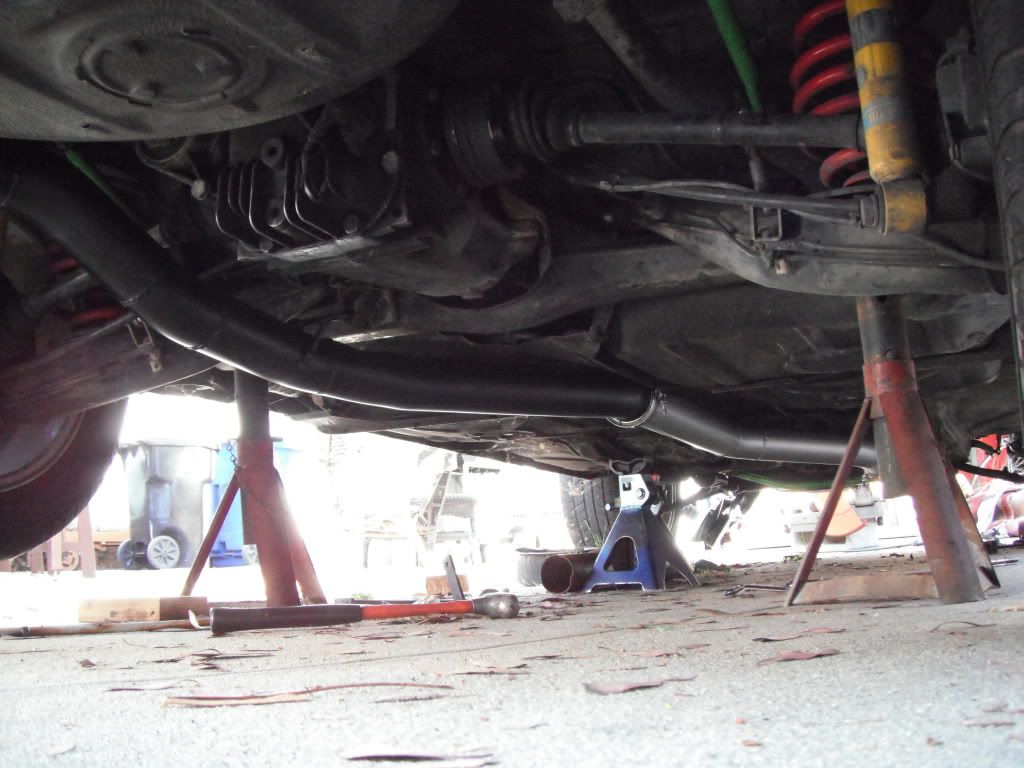

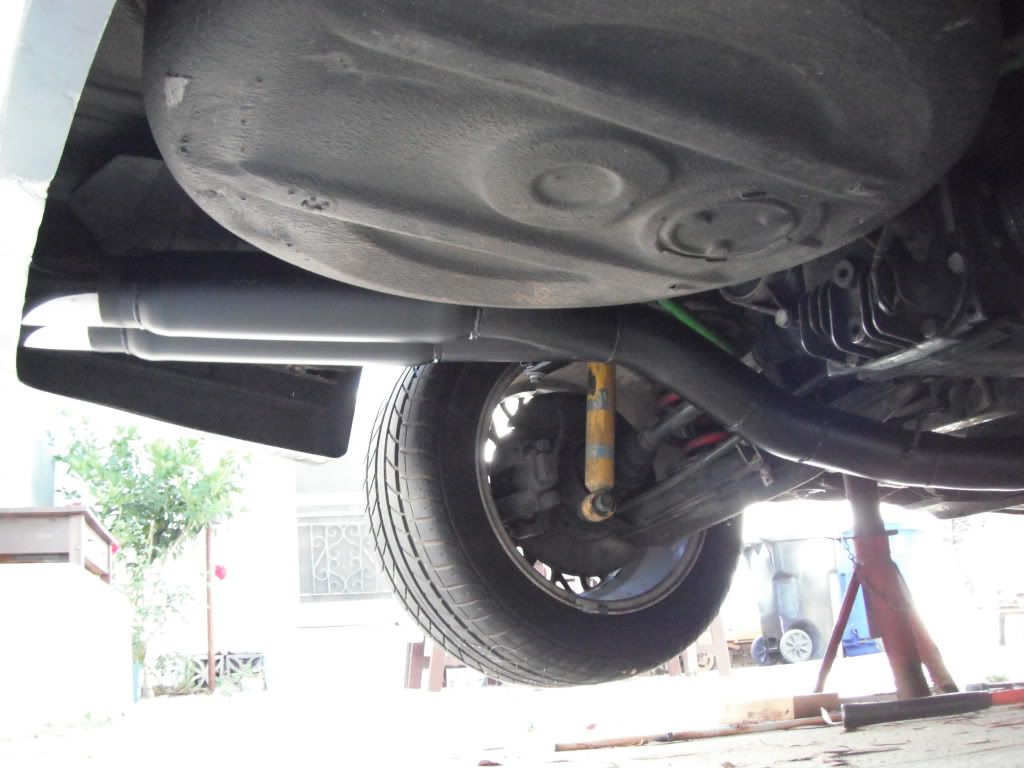

All done, minus the tips. You can kind of see how low the 3" exhaust will be.



Here are some sound clips. Forget the exhaust leak in the first video.... :(



Here's another in car...I did not get on it at all, it was one of the first test drives!

[SwiftE30]

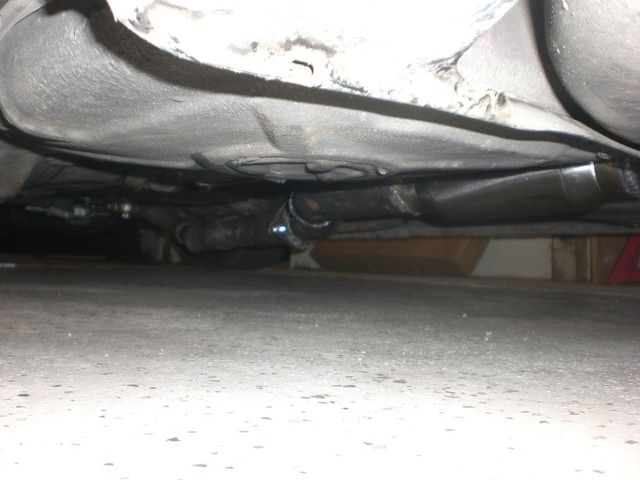

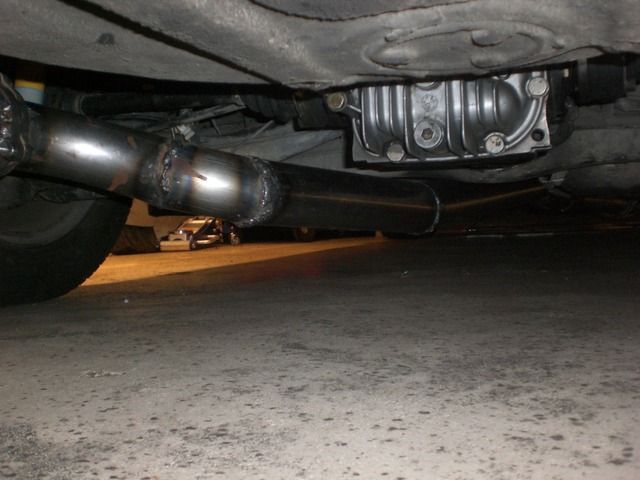

here's a few pics of the exhaust mounted up. The back isnt hanging correctly in relation to the rear valance. I still have to finish up mounting the valance, then i will change the hangers and what not. Anyways, i think it is tucked up there pretty nice, and for my first welding job i think it came out halfway decent
Sorry for the large and sideways pics. Photobucket is being lame for some reason












no sounds clip yet, sorry. I dont have a nice enough camera to record one.

[MF DOOM]

http://www.youtube.com/watch?v=y6QgTVlCmus

dynomax vt muffler

[kamotors]

down pipe

rest

scavenge kit on downpipe

[einstein57]

I have added a cat since these photos

[TC|Photography]

Bump!

[blueapplesoda]

lots of abuse (40k miles?)




one i did for a customer



Sound clip in a minute

[decay]

blueapplesofa, have you done any work involving one of Otis' M42 turbo manis?

I'm gonna need a 3" downpipe, vband in, already have a 3" magnaflow cat and a reducer to go down to 2.5 for the out.

My current exhaust is 2.5" and fine for my NA/ITB app, but it's crush-bent, so you might be able to upsell me there too, with a good product.

[blueapplesoda]

Haven't done any work for any m42 cars yet. Hit me up in a few months, hopefully when I can take new orders but for now, advice is about all I can give.

[blueapplesoda]

Heres a video

[TC|Photography]

lots of abuse (40k miles?)




one i did for a customer



Sound clip in a minute

looks like this will be my route! I sent you a PM about the OEM oil cooler/lines.

[AbsorbantNut]

2.5" downpipe and then 3" all the way back with a resonator only

[derrty 30]

down pipe was made by me and i used a buddy club exhaust off of a s14 240sx and just modified it to fit the e30 and added a flex pipe. exhaust is 3" with a 4" blast pipe

http://s436.beta.photobucket.com/user/derrty30/media/e30exhaust_zpsf6057a0d.jpg.html?sort=3&o=0

Sound clip

https://vimeo.com/48761300

[TC|Photography]

Finished the exhaust. Full 3" into a Vibrant muffler 3" inlet-dual 3.5" outlet


Untitled by Visions: Photography Tyler Cauley, on Flickr


Untitled by Visions: Photography Tyler Cauley, on Flickr

no sound clip yet. I will provide one soon.
