    pitting in cylinder head

    Well some of you might remember I bought a e30 m20 turbo. Im replacing the blown head gasket which seems to be a recurring issue by reading the previous owners posts on another forum . The block is o-ringed and I was noticing on the cylinder head some pitting around where the fire ring would be. When I resurfaced the head shop didnt seem concerned about it. Was wondering what you all thought?? I tried to upload some pics but was having issues doing so...but any advice would be appreciated. Gonna try to get some pics uploaded by tomorrow.
    sigpic

    #2

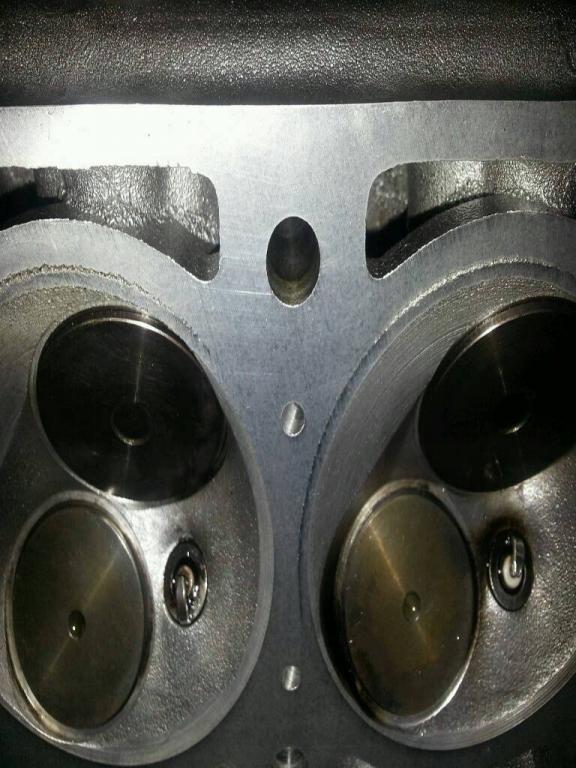

    Hey guys here are the pics I promised. Maybe im a little over cautious but thought it would be worth checking with you guys. . By the way the pitting is only where the gasket was pushed up on cylinder 2, 3, 4
    Attached Files
    sigpic

    Comment


      #3
      Have you checked if a new HG covers that area? If it does I probably wouldn't worry too much, but you could always take the head to a machine shop and see what they say.

      I don't think it should/would cost too much too fill weld and resurface the head.... Then again every machine shop is different so I could be wrong.

      Comment


        #4
        Yeah the HG does cover the area. I'll ask the Head Shop how much they would charge to weld..Thanks.
