    MSPNP 15 pin options connector

    Hi guys. So I am trying to data log my wideband o2 and need to connect it to the options port on my megasquirt. I did not receive any documentation with my megasquirt and I need to know what all the pins do on the options port. It seems megasquirts website is down because I can not get the page I need to load so if any one could give me a layout of what pins do what that would be great!

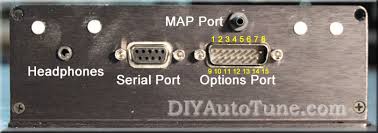

    I added a picture to help, hopefully it works. It's the db15 connector below the map port.
    Thanks!
    Attached Files

    #2
    Megasquirt manuals index for Megasquirt-1, Megasquirt-2, Microsquirt, Megasquirt-3
