Announcement

Collapse
No announcement yet.

Diagrams.

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    Diagrams.

    Can anyone point me in the direction of getting vacuum and wiring diagrams for an M10B18. I can't seem to figure out my vacuum lines.

    The PO was an idiot.
    '87 325e 2.7i/5spd
    '02 Subaru outback (Still smells like dirty hippie)
    '86 635csi (Sold)
    '87 4KcsQT (Sold)
    '84 318i (Sold)

    #2
    IDK about vac, but here's a great wiring diagram resource for early e30s.

    Stage rally/rallycross e30 build/competition journal
    Track/street e21 build
    visit Condor Speed Shop
    visit Motorsport Hardware



    [FONT="Franklin Gothic Medium"] 1985 318i/M50 Rally Car - 1988 Porsche 924S - 2005 Sequoia tow pig - 2018 GTI

    Comment


      #3
      That will work great. Thanks.

      Now, I just need to find a vacuum diagram.
      '87 325e 2.7i/5spd
      '02 Subaru outback (Still smells like dirty hippie)
      '86 635csi (Sold)
      '87 4KcsQT (Sold)
      '84 318i (Sold)

      Comment


        #4
        vac lines aren't that hard - what are you having trouble figuring out?

        Here's a pic of my non-bling bay, in case it helps

        Stage rally/rallycross e30 build/competition journal
        Track/street e21 build
        visit Condor Speed Shop
        visit Motorsport Hardware



        [FONT="Franklin Gothic Medium"] 1985 318i/M50 Rally Car - 1988 Porsche 924S - 2005 Sequoia tow pig - 2018 GTI

        Comment


          #5
          A few more pictures of where the vacuum lines go to and from would be great. The PO thought it was a good idea to remove all of them now I have no idea where they all go.
          '87 325e 2.7i/5spd
          '02 Subaru outback (Still smells like dirty hippie)
          '86 635csi (Sold)
          '87 4KcsQT (Sold)
          '84 318i (Sold)

          Comment


            #6
            Vacuum line going directly from the intake manifold runner upwards goes to the brake booster. Off the ICV going to the right, it goes to the intake tube. Under the Cold Start injector there should be a nipple (on an 85 that's where it is), that vacuum line goes to the fuel pressure regulator. The small line coming off the throttle body goes up to the firewall, there should be a small vacuum module there. That module goes to the distributor advance diaphragm. Sorry, don't have pictures right now, but I hope that helps...a little
            85' 318i ~The Bronze Bomber (FrankenM10 with a Forced Future :wgaf:)

            Comment


              #7
              *Edit* Alright, I'll jump on that tomorrow. But I have this thing on my firewall that pulls vacuum, and I have no idea what it pulls on.

              I just don't know which side goes to where.

              Is this module? I want to make sure we're on the same page.

              Last edited by JasonBates; 02-25-2012, 10:03 PM.
              '87 325e 2.7i/5spd
              '02 Subaru outback (Still smells like dirty hippie)
              '86 635csi (Sold)
              '87 4KcsQT (Sold)
              '84 318i (Sold)

              Comment


                #8
                That is for the distributor.

                Comment


                  #9
                  Originally posted by Farbin Kaiber View Post
                  That is for the distributor.
                  Where does the line from the distributor plug into?
                  '87 325e 2.7i/5spd
                  '02 Subaru outback (Still smells like dirty hippie)
                  '86 635csi (Sold)
                  '87 4KcsQT (Sold)
                  '84 318i (Sold)

                  Comment


                    #10
                    Vacuum advance solenoid



                    Bimmerforums is the preferred online BMW Forum and community for BMW owners. At Bimmerforums, you will find technical how-to information maintenance specifics audio advice wheel and tire combinations and model specific details not found anywhere else. Our professionals are here to help make sure you find the answers you need to your questions and our community is here to help other brainstorm ideas for the future.

                    Comment


                      #11
                      Awesome! Thanks guys.

                      I'll let you know how it turns out. Hopefully this is all it needs to run.
                      '87 325e 2.7i/5spd
                      '02 Subaru outback (Still smells like dirty hippie)
                      '86 635csi (Sold)
                      '87 4KcsQT (Sold)
                      '84 318i (Sold)

                      Comment


                        #12
                        I'd post more pics, but it's almost impossible to take pics of the lower ends of the lines.

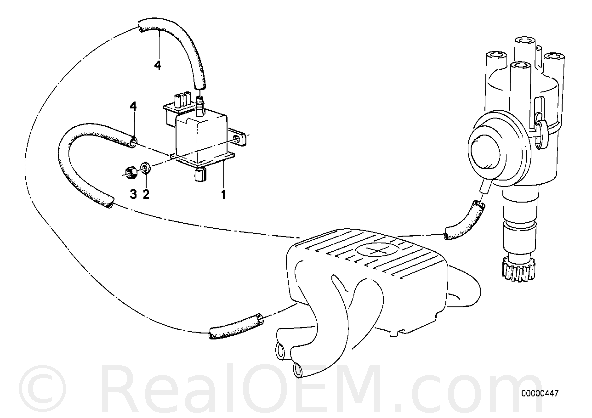

                        In my original pic, a couple of those lines go to the elbow below the throttle body, and another one goes to the power brake booster (use a reinforced line for that one, especially). If you check out the realOEM diagrams, it will give show you where most of them go. There are various ways of routing the lines - mine is not routed how it was stock, I don't think.
                        Stage rally/rallycross e30 build/competition journal
                        Track/street e21 build
                        visit Condor Speed Shop
                        visit Motorsport Hardware



                        [FONT="Franklin Gothic Medium"] 1985 318i/M50 Rally Car - 1988 Porsche 924S - 2005 Sequoia tow pig - 2018 GTI

                        Comment


                          #13
                          I would take pictures, but I don't have mine run yet. And my engine is out of the car. I also won't be putting some of them back on (ICV delete)
                          85' 318i ~The Bronze Bomber (FrankenM10 with a Forced Future :wgaf:)

                          Comment


                            #14
                            Well, I didn't get it running, so I think I'm just going to take a few pictures of my bay and have you guys point it all out to me.
                            '87 325e 2.7i/5spd
                            '02 Subaru outback (Still smells like dirty hippie)
                            '86 635csi (Sold)
                            '87 4KcsQT (Sold)
                            '84 318i (Sold)

                            Comment


                              #15
                              While you are taking pictures, can you take pictures of your alternator and power steering pump adjusters. Those are next to go on for me, and I'm scratching my head on how they are oriented.
                              85' 318i ~The Bronze Bomber (FrankenM10 with a Forced Future :wgaf:)

                              Comment

                              Working...
                              X
