M20b25 intake manifold outer dimensions?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    M20b25 intake manifold outer dimensions?

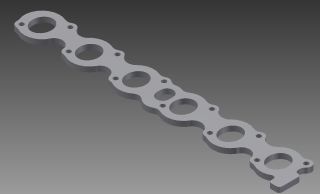

    Hi there! Im trying to design throttle body kit for m20 engine and my own car is sleeping over winter in other destination. so I need angle of cylinder head intake compared to horizontal plane and total height and lenght of manifold, so i could know how much space i have to save for it. here is what i have drawd already.
    Click image for larger version

Name:	läppärunko.jpg
Views:	1
Size:	40.0 KB
ID:	7225326
    Click image for larger version

Name:	403110_2802578757864_1660451110_2541664_401454470_n.jpg
Views:	1
Size:	4.7 KB
ID:	7225325
    Also found on Facebook - Juuso Tero, Tampere
    https://www.facebook.com/JuusosGarage
