Missing a hose at Throttle Housing.

Collapse
X
Collapse

  • Page of 1
  • Time
  • Show
Clear All
new posts
Previous template Next
  • amcink
    Mod Crazy
    • Jan 2012
    • 788
    #1

    Missing a hose at Throttle Housing.

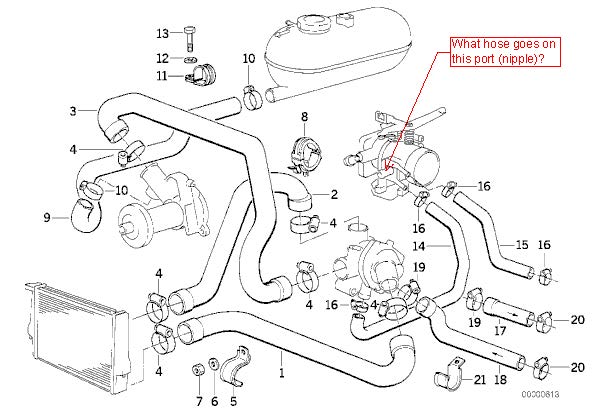

    I need to know which is the hose that goes on the throttle housing per the attached graphics.
    Attached Files
    Tags: None
    • Wishno87
      R3V OG
      • Jul 2007
      • 6025
      #2
      VC breather?
      Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

        Comment

        • LJ851
          R3V OG
          • Nov 2010
          • 7918
          #3
          ^ Yep
          Lorin


          Originally posted by slammin.e28
          The M30 is God's engine.

            Comment

            • amcink
              Mod Crazy
              • Jan 2012
              • 788
              #4
              Sorry! No! the VC breather is already plug is a smaller nipple behind the VC breather
              Last edited by amcink; 05-31-2012, 09:46 AM.

                Comment

                • jlevie
                  R3V OG
                  • Nov 2006
                  • 13530
                  #5
                  That nipple is for the hose that goes to the valve cover. The smaller elbow nipple closer to the intake is for the ICV.
                  The car makes it possible, but the driver makes it happen.
                  Jim Levie, Huntsville, AL

                    Comment

                    • amcink
                      Mod Crazy
                      • Jan 2012
                      • 788
                      #6
                      Originally posted by jlevie
                      That nipple is for the hose that goes to the valve cover. The smaller elbow nipple closer to the intake is for the ICV.
                      I have a 1986 325e and the nipples that show on the graphic are all on the right side. Therefore, I do not know if that small nipple behind the VC breather is for the ICV, can someone confirm please.

                        Comment

                        • dnguyen1963
                          R3VLimited
                          • Nov 2011
                          • 2648
                          #7
                          Do this forum a favor and post an actual picture.

                            Comment

                            • Wishno87
                              R3V OG
                              • Jul 2007
                              • 6025
                              #8
                              Carbon canister.
                              Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

                                Comment

                                • amcink
                                  Mod Crazy
                                  • Jan 2012
                                  • 788
                                  #9
                                  Originally posted by dnguyen1963
                                  Do this forum a favor and post an actual picture.
                                  this was my next step; however.........

                                  Originally posted by Wishno87
                                  Carbon canister.
                                  You sir hit it on the head. Is the Carbon Canister hose. Thank you

                                    Comment

                                    • 5Toes
                                      Banned
                                      • May 2010
                                      • 9836
                                      #10
                                      Yup, the one on the side of the TB facing the front of the engine is for the valve cover breather thing

                                      The fat one facing the driver's side is for the ICV

                                      The nipple hidden way up underneath there goes to the carbon canister

                                        Comment
