    What's this plug/wires?

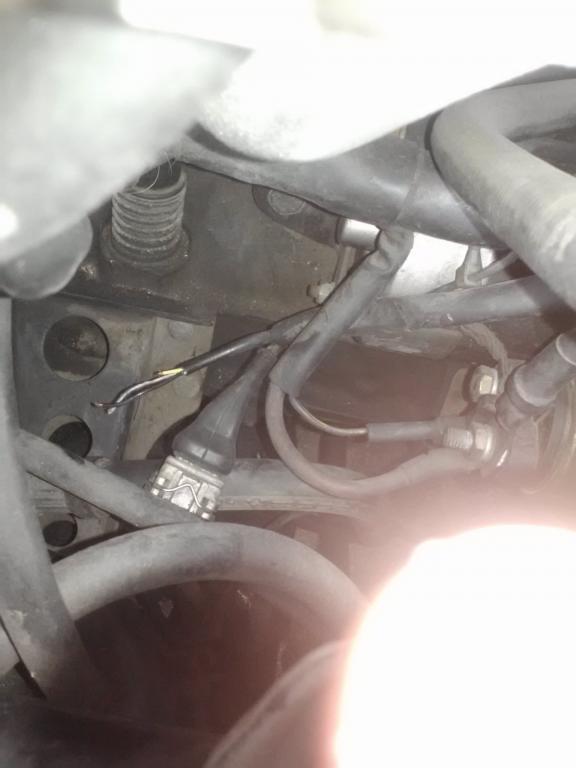

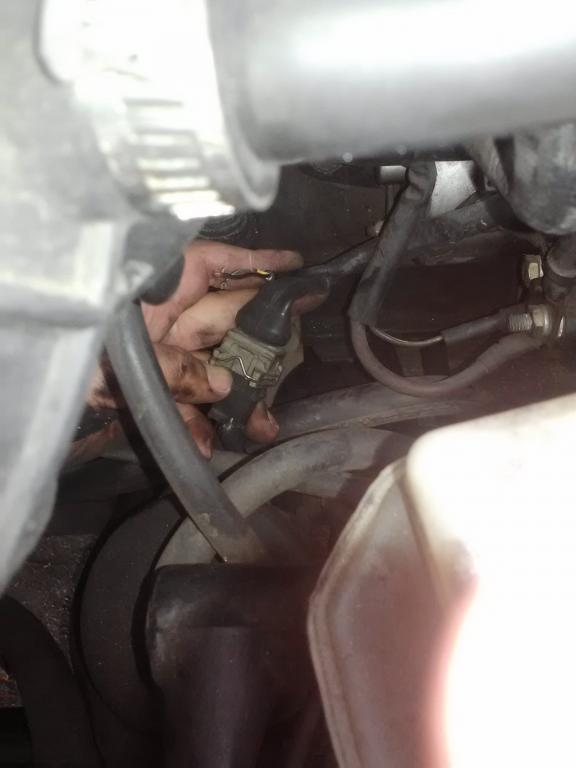

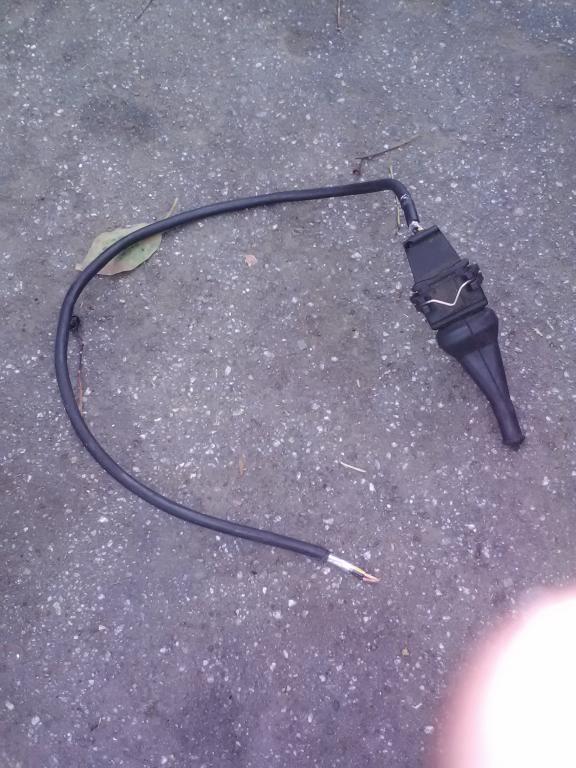

    I have a 87 325e 5spd that's pretty much stock. Last night, I was attempting to parallel park and while I was turning the steering wheel to the left it felt like it snagged onto something. I had no idea what it was...and jerk't it a little harder and whatever it was snapped(also, it made the car shut off). I took a look at it this morning and this is what I found underneath the car near the Ujoint that attach to the steering rack. What is this and where does it go? Thanks for any responses!

    Ps. Engine turns but it wont start.
    Attached Files
    Last edited by entrepreneuR; 02-02-2013, 02:57 PM.

    #2
    It appears to be the wiring harness for one of the crank position sensors.

    I'm guessing the connector fell out of its retainer bracket, snagged the steering linkage and what you found under the car was the result. And this is absolutely consistent with the car turning over but not starting now.
    101

    The E30 collection:
    1987 325es M52 - Schwarz / Taurus Red Sport (son #2's)
    1987 325is - Delphin / Black Sport (son #3's)
    1987 325i Convertible - Triple Black
    1989 325iX Coupe - Diamondschwarz / Black Comfort
    1990 325iX Coupe - Sterling Silver / Grey Sport

    1981 Fiat 124 Spider 2000 - Green / Tan
    1998 Volvo V70 GLT - White / Tan
    1998 Volvo S70 T5 manual - White / Taupe
    2001 Ford Windstar - Silver / Grey (parts hauler)
    2006 Lexus GX470 - White / Tan (tow rig)

    Comment


      #3
      Can i just simply replace it with a new one or did it mess up my timing or etc?

      Comment


        #4
        Going to have to replace it, and also replace/repair the connector on the engine harness side.

        Just go with OEM stuff, ive had issues with aftermarket sensors in the past being bad right out of the box.
        -Build http://www.r3vlimited.com/board/showthread.php?t=295277

        Comment


          #5

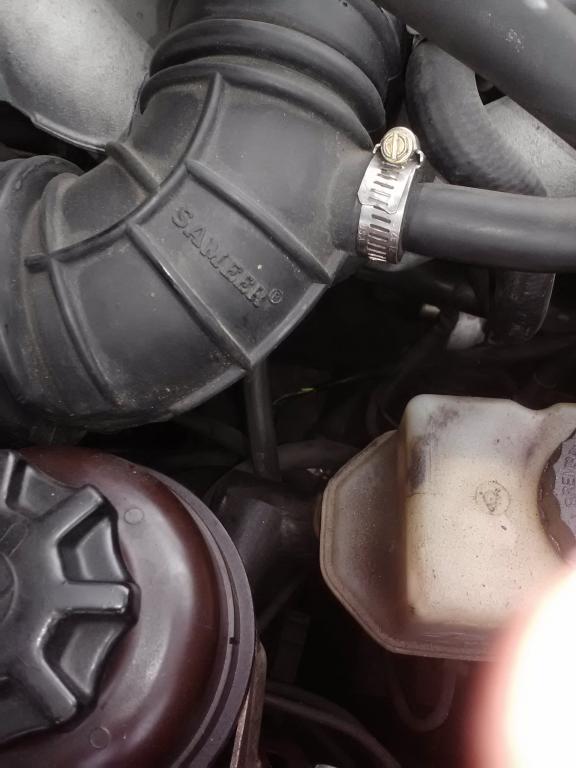

          This is completely unrelated but did you get that intake boot from bavauto? I had a SAMEER boot once and it dried out and cracked within 6 months. Its either new or you have better luck than me.
          West German BMWs, they just don't make the same as they did before the wall fell.
          ^Case in point: Auto-Repair Technology. Everytime my car isn't starting or acting up I let it sit, sometimes for an hour, sometimes for days. But it eventually fixes itself.

          Comment


            #6
            Originally posted by 101 View Post
            It appears to be the wiring harness for one of the crank position sensors.

            I'm guessing the connector fell out of its retainer bracket, snagged the steering linkage and what you found under the car was the result. And this is absolutely consistent with the car turning over but not starting now.
            ^^^ this.
            Originally posted by flyboyx
            i have watched my dog lick himself off a few times

            Comment


              #7
              Originally posted by NeoMishMoo View Post
              This is completely unrelated but did you get that intake boot from bavauto? I had a SAMEER boot once and it dried out and cracked within 6 months. Its either new or you have better luck than me.
              Yup I got it from there too...and i just checked(found a 1 inch crack on the bottom) =/
              Originally posted by FLG View Post
              Going to have to replace it, and also replace/repair the connector on the engine harness side.

              Just go with OEM stuff, ive had issues with aftermarket sensors in the past being bad right out of the box.
              Thanks! My baby is running again!
              Originally posted by 101 View Post
              It appears to be the wiring harness for one of the crank position sensors.

              I'm guessing the connector fell out of its retainer bracket, snagged the steering linkage and what you found under the car was the result. And this is absolutely consistent with the car turning over but not starting now.
              Thanks for your help! You're right...and problem solved!
              Originally posted by Mr. Burns View Post
              ^^^ this.
              Yup! Thanks!
