    Name this head

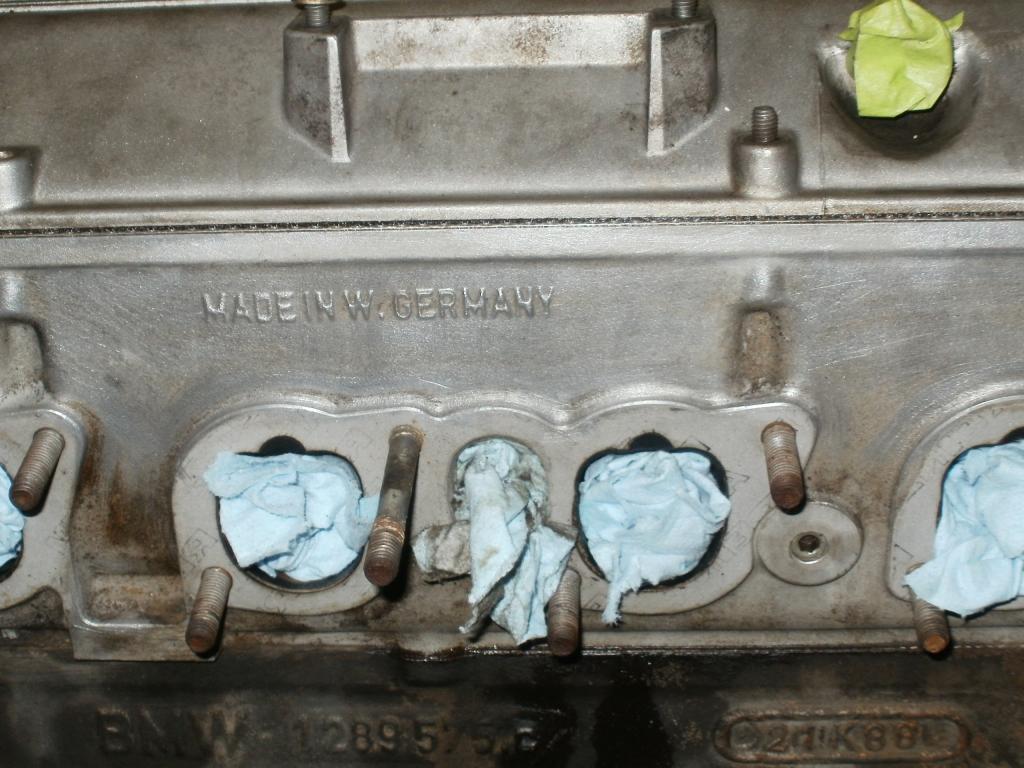

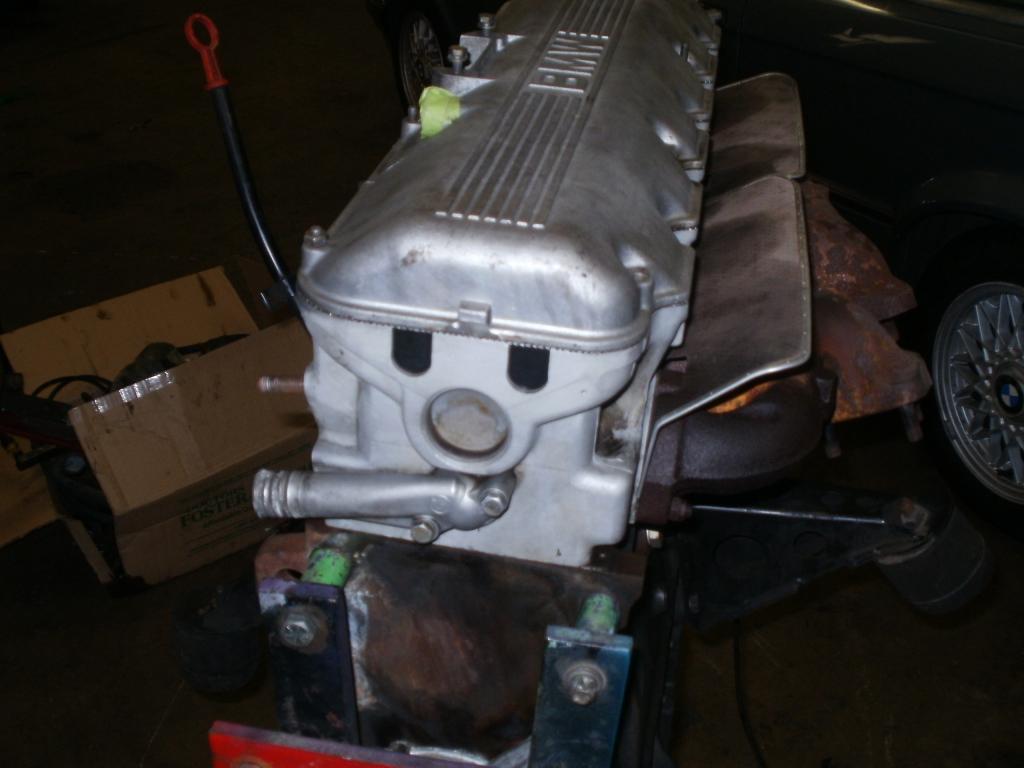

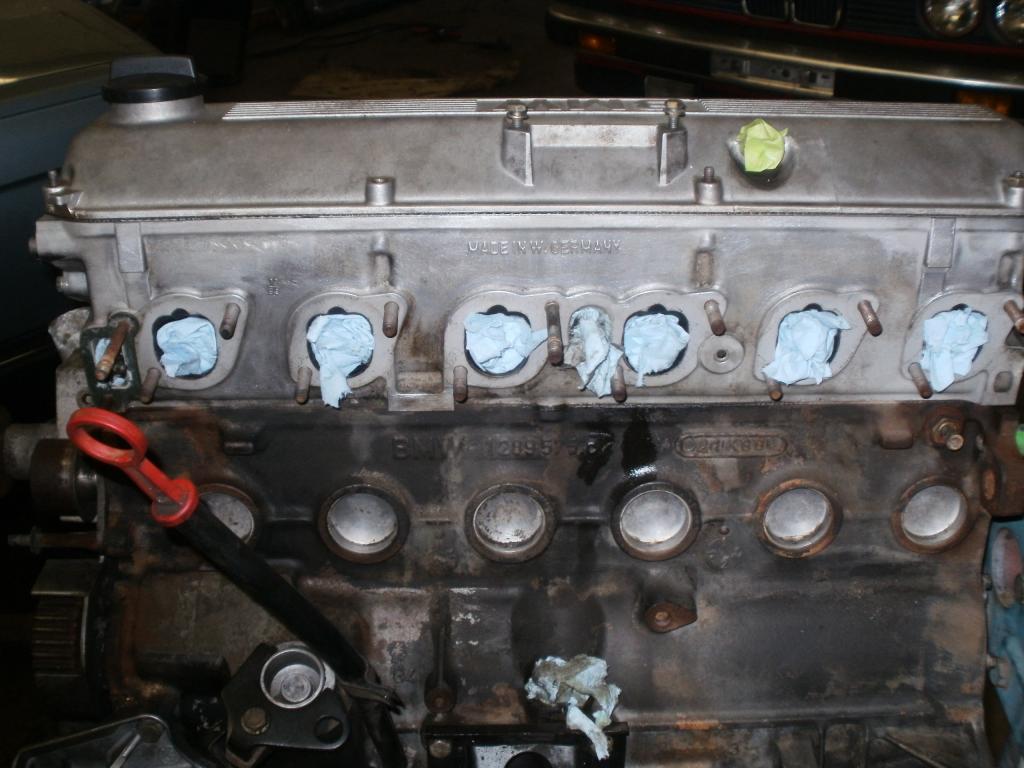

    got this motor that i'm planning on swapping in that got us stumped. there's no casting #'s on it. no 885,731 or AMC. only casting reads made in west germany on the intake side. another odd thing is the allen bolt at the middle intake gasket. always wondered why there was that cutout on the double intake gasket(see 1st pic). some history on motor is has a mild cat cam, hd rockers and valves and came in a car from elysburg,pa.(don'tknow if spelled right) red, believe an ix. Lay it on me masses, what do i got here. sorry for attachment photos.
    Attached Files
    sigpic

    #2
    Does it have 7 cam journals?

    Comment


      #3
      take a pic with the valve cover off. The cam bearings will tell a tale
      Need a performance chip for you BMW? Shoot me a PM and I'll get you taken care of!!
      Taylor- Follow me on Instagram @e30_fiend


      Comment


        #4
        My guess is its a 731 head.

        Looking at pic #3, above cylinder #1 it looks a bit smoother than any other area. Some of the "modified" 731 heads had this metal placard that was placed right there that had like a gazelle on it or something. I cant quite remember. But anyway, these heads were made to accept the 4 bearing eta cam and also made to accept the larger i intake valves.

        This is all pending the pic under the valve cover though.
        Need a performance chip for you BMW? Shoot me a PM and I'll get you taken care of!!
        Taylor- Follow me on Instagram @e30_fiend


        Comment


          #5

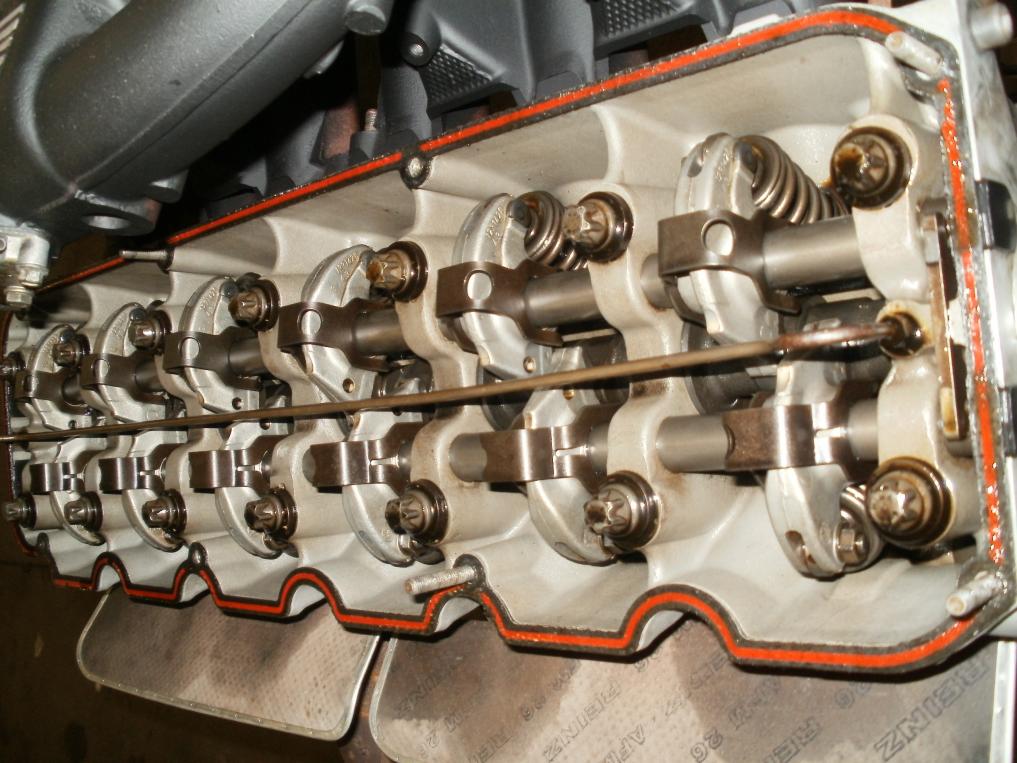

          found a few pics to help explain
          Need a performance chip for you BMW? Shoot me a PM and I'll get you taken care of!!
          Taylor- Follow me on Instagram @e30_fiend


          Comment


            #6
            o

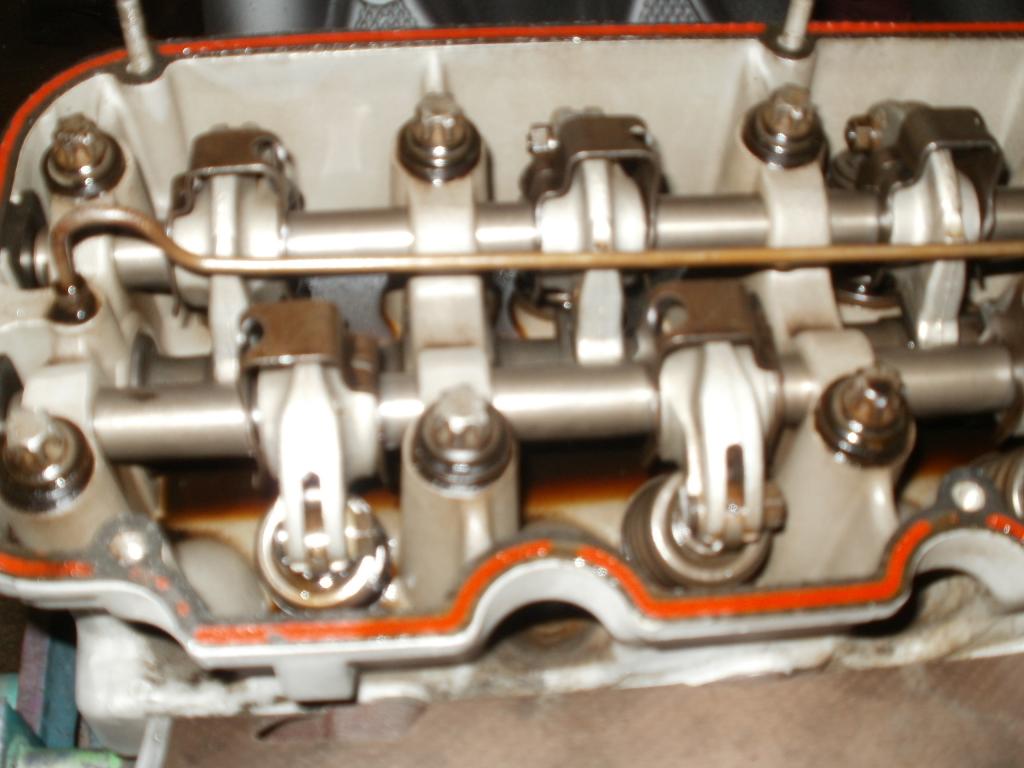

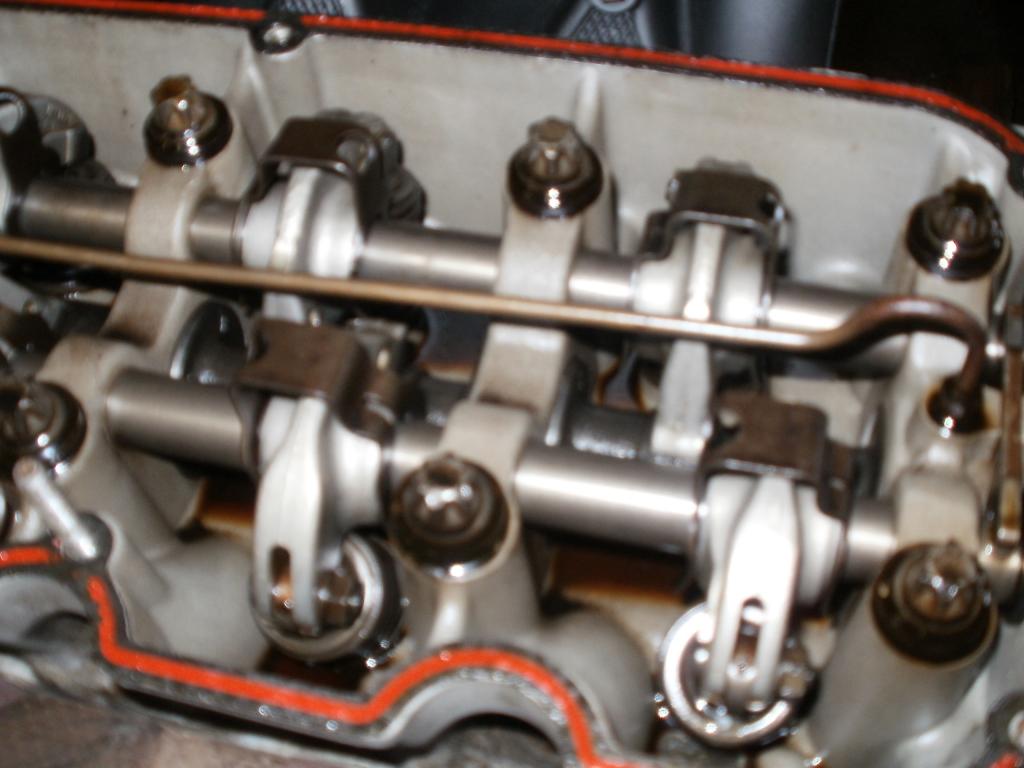

            i'll snap some pics of valvetrain and such when i get out to the shop tomorrow. Fiend that looks like the same, only i don't have that stamped plate. what head is that you have there?
            Last edited by meengreene30; 04-02-2013, 06:14 PM.
            sigpic

            Comment


              #7
              thats the "modified" 731 head.
              Need a performance chip for you BMW? Shoot me a PM and I'll get you taken care of!!
              Taylor- Follow me on Instagram @e30_fiend


              Comment


                #8
                to help clarify it IS a 7 cam journal head and it came from a late model I coupe with a few other goodies like sway bars
                Dave @ Bimmerbuddies
                Contact Bimmerbuddies for all your Parts and service needs
                M20,24V,5spdSwap,Weld,Fab,Tow,Buy/Sell/Trade
                Bimmerbuddies LLC
                717-388-1256
                2971a Roundtop Rd, Middletown PA 17057

                *Ask about discounts for R3V members*

                Comment


                  #9
                  thanks for the imput dave, does really look like a 731 head though i dnt think they had the provision to bolt the m20 cap to the head so unless it was modified idk how that would work?

                  Comment


                    #10
                    the cap is mounted to the timing cover, you would just use one from an m20b25
                    Dave @ Bimmerbuddies
                    Contact Bimmerbuddies for all your Parts and service needs
                    M20,24V,5spdSwap,Weld,Fab,Tow,Buy/Sell/Trade
                    Bimmerbuddies LLC
                    717-388-1256
                    2971a Roundtop Rd, Middletown PA 17057

                    *Ask about discounts for R3V members*

                    Comment


                      #11
                      this is true, that was my bad and i relized it after i put it. hmm im interested to see this.

                      Comment


                        #12

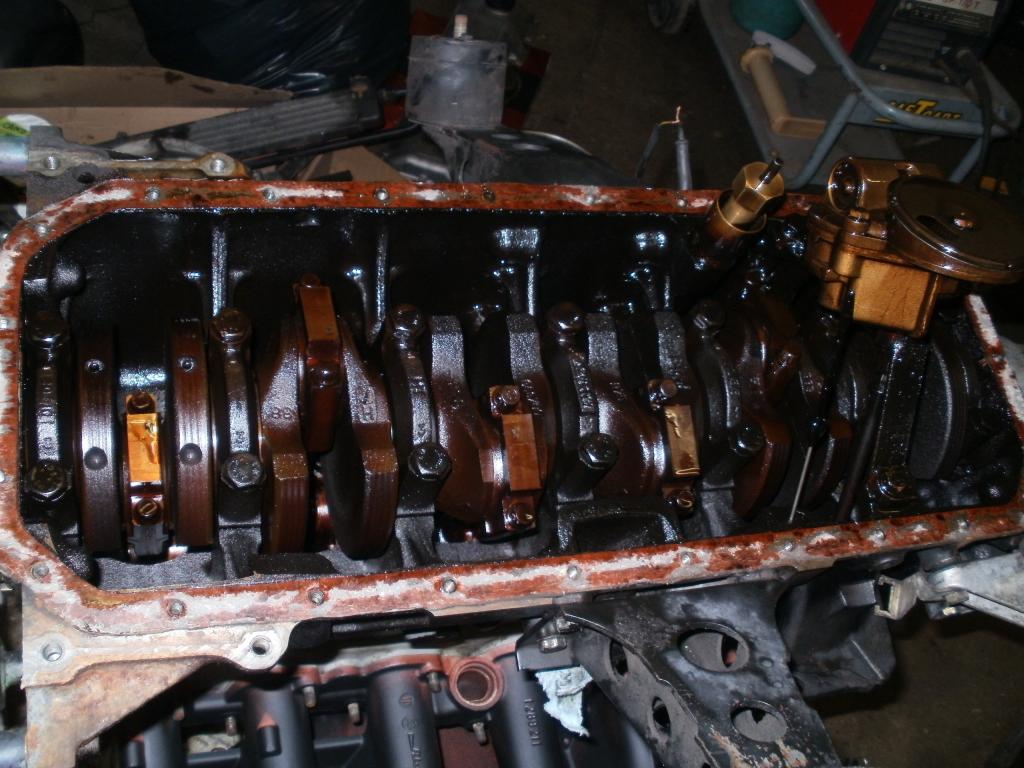

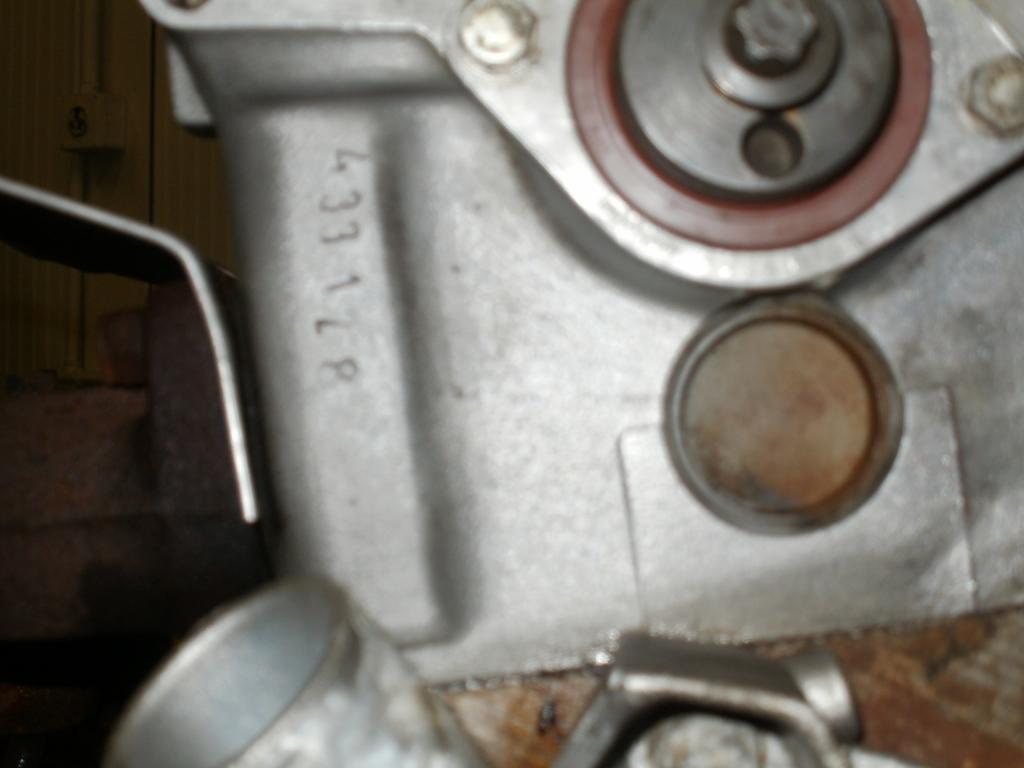

                        as Dave mentioned it does have 7 cam journals. we pulled the pan out of curiousity to see if this was already a 2.7i and for casting #'s on crank. from what we can tell its a 2.5 crank. either way this motor ripped ass and i'm excited to get it in. it should go well with my dinan chip and m50 injectors. it's gonna be titties Dave.
                        Attached Files
                        sigpic

                        Comment


                          #13
                          titties are very good!

                          Comment


                            #14
                            What you have there is a German replacement 885 cast head. The intake ports are slightly different than OEM BMW.
                            1988 E30 335i - 1987 E30 327i - 1987 E30 327iS Pickup - 1973 2002 Project

                            Visit www.BimmerHeads.com for all of your 12 valve needs!

                            Comment


                              #15
                              Did that head come out of the euro spec vert I guess?
                              Shawn @ Bimmerbuddies
                              Bimmerbuddies LLC
                              717-388-1256
                              2971a Roundtop Rd, Middletown PA 17057
                              bimmerbuddiesllc@gmail.com
